| Place of Origin: | China |
|---|---|
| Brand Name: | OEM or HELLOSIGNAL |
| Certification: | CE, RoHS, CPR,Delta, UL,ETL |
| Model Number: | Copper Trunk Cables |
| Minimum Order Quantity: | 100 PCS |
| Packaging Details: | 1PC/PE BAG, BAGS/Carton |
| Delivery Time: | 40 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5,000,000PCS / Month |
| Conductor: | Stranded Oxygen-free Copper | Conductor QTY: | 4 Twisted Pairs |
|---|---|---|---|
| Wire Gauge: | 26AWG (7/0.16mm) | Insulation Material: | HDPE |
| OD Of Insulation: | 0.82±0.05 Mm | Sheath/Out Jacket: | LSZH OR PVC |
| OD Of Sheath: | 5.3 ± 0.3 Mm | The Thickness Of Sheath: | 0.55 ± 0.05 Mm |
| Breakout Length: | 0.3 M | Color: | Gray/Blue Or Customized |

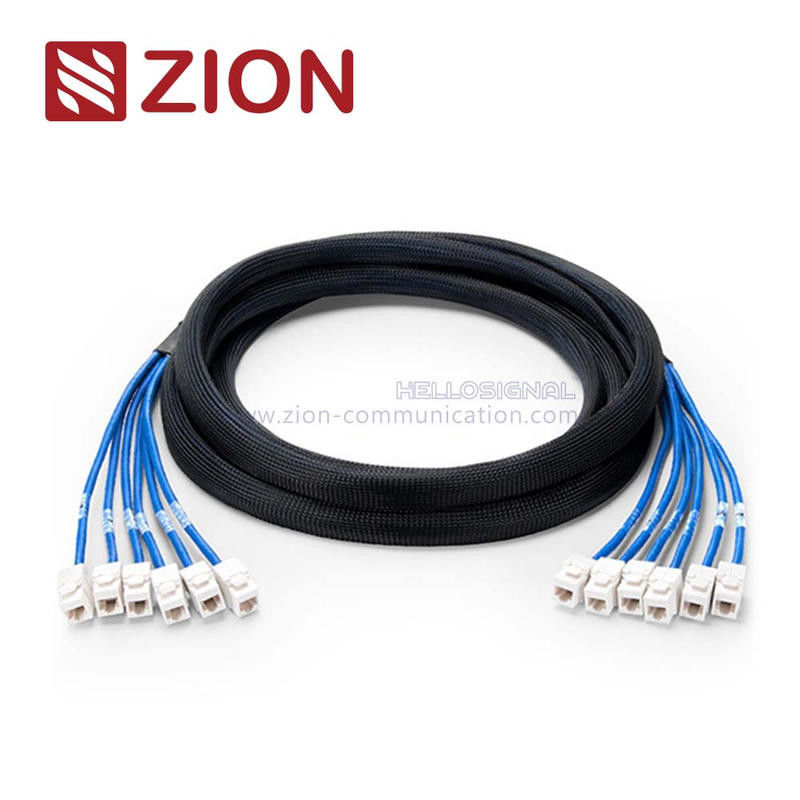

| Cat 5e UTP Jack to Jack Trunk Cables | |||||||||||||||
| Ideal for Backbone and Cross-connect Cabling Systems | |||||||||||||||
|
|
|||||||||||||||
|
|
|||||||||||||||
| Description | |||||||||||||||
| ZION pre-terminated CAT5e UTP trunk cables provide a quick solution for links in the entire data center solution. They are ideal for environments with frequent moves, adds, and changes, offering fast and efficient installation of multiple point-to-point connections. |
|||||||||||||||
| Application | |||||||||||||||
| Data Center Cabinets / Telecommunications Racks / Quick Network Deployment | |||||||||||||||
| Technical Specification | |||||||||||||||
| • Available in variable bundle sizes of 6, 8, or 12 cores depending on your inquiry. • Level: Plenum, Riser, LSZH, Dca, Eca CPR rating. • Custom lengths in 0.50-meter increments. Total trunk length shall not exceed ANSI/TIA standards. • Unique identification number on the label at the end for each cable. • Out Jacket: PVC/LSZH or braiding material. • ISO/IEC 11801-1, EN 50173-1, TIA 568 • Data center cabling standards ISO/IEC 11801-5,ISO/IEC 22237-5, EN 50600-2-4, EN 50173-5, and TIA 942. • Rated for 100MHz communications • Designed for 1000 Base-T Ethernet • Pass the Fluke Channel Test |
|||||||||||||||
| Specification (Datasheet) | |||||||||||||||
| Product Type | |||||||||||||||
| SKU | U5eSCV1MG-12PP-BRB (Please check ZION'S trunk cable code) | ||||||||||||||
| Shielding Type | Unshielded (UTP) | ||||||||||||||
| Termination End | Jack to Jack | ||||||||||||||
| Cable Count | 6/8/12 | ||||||||||||||
| Storage temperature | -40℃ ~ +70℃ | ||||||||||||||
| Operating temperature | -10℃ ~ +60℃ | ||||||||||||||
| Single Patch Cable Datasheet | |||||||||||||||
| Conductor: | Solid Oxygen-free copper | ||||||||||||||
| Conductor QTY(Pairs) | 4 Twisted Pairs | ||||||||||||||
| Wire Gauge (AWG) | 24AWG (0.50 ±0.005mm) | ||||||||||||||
| Insulation Material: | HDPE | ||||||||||||||
| OD of Insulation | 0.92±0.05 mm | ||||||||||||||
| Insulation Color Per TIA/EIA 568-B |
Orange, White/White-Orange | ||||||||||||||
| Blue, White/White-Blue | |||||||||||||||
| Green, White/White-Green | |||||||||||||||
| Brown, White/White-Brown | |||||||||||||||
| Cross | Crossweb | ||||||||||||||
| Sheath/Out Jacket: | LSZH OR PVC | ||||||||||||||
| OD of sheath | 5.3 ± 0.3 mm | ||||||||||||||
| Thickness of sheath | 0.55 ± 0.05 mm | ||||||||||||||
| Breakout Length | 0.3 m | ||||||||||||||
| Color | Gray/Blue or customzied | ||||||||||||||
| Termination End | |||||||||||||||
| Jack Type | CAT5e UTP Keystone Jack | ||||||||||||||
| Jack Material | PC (Polycarbonate) | ||||||||||||||
| Jack Pins | Phosphor Bronze,TIN GOLD 3U" | ||||||||||||||
| RJ45 Contact Lift | Min. 750 Times | ||||||||||||||
| IDN Life | Min. 250 Times | ||||||||||||||
| Outer Jacket | |||||||||||||||
| Material | PVC/LSZH/Braiding | ||||||||||||||
| Electrical Chatracteristics (20℃) | |||||||||||||||
| The following are laboratory data at 20°C. Actual environments may vary slightly. | |||||||||||||||
| Data Rate Support | 1000 Base-T | ||||||||||||||
| Standard Bandwidth | 100 MHz | ||||||||||||||
| Reference Bandwidth | 350 MHz | ||||||||||||||
| Impedance (1-100MHz) | 100 ± 15 | ||||||||||||||
| Delay Skew (1-100MHz) | ≤45 ns/100m | ||||||||||||||
| Max. DC Resistance | 9.5 Ω/100m | ||||||||||||||
| Mechanical Chatracteristics | |||||||||||||||
| Before Aging Tesnsile Strength | ≥13.5 Mpa | ||||||||||||||
| Before Aging Elongation | ≥150 % | ||||||||||||||
| Aging Period | 100℃×24h×7d (℃×hrs) | ||||||||||||||
| After Aging Tensile Strength | ≥12.5 Mpa | ||||||||||||||
| After Aging Elongation | ≥125 % | ||||||||||||||
| Cold Bend | No Visible Cracks | ||||||||||||||
| Schematic of the finished product | |||||||||||||||
| The actual number of cores will be 6,8,12; the color can also be customized according to customer requirements. | |||||||||||||||
|
|
|||||||||||||||
|
|
|||||||||||||||
| ZION'S Trunk Cable Code: | |||||||||||||||
| U5e S C O 05M BL-12 J J-BR B ①②③④ ⑤ ⑥ ⑦⑧⑨⑩⑪ |
|||||||||||||||
| Cable Type | Conductor | Conductor material |
Outer sheath material |
Cable length |
Cat5e sheath color | Cores | End A | End B | Out Jacket Material |
Out Jacket Color |
|||||
| U6= U/UTP CAT6 |
S=Solid | C= Bare Copper |
V= PVC O=LSZH |
1=1M 1.5=1.5M ... 10=10M |
White | Pink | 6 8 12 |
Plug Jack |
Plug Jack |
V=PVC VR=Riser VP=Plenum O=LSZH BR=Braiding |
|||||
| Brown | Blue | Grey | |||||||||||||
| Green | Red | Blue | |||||||||||||
| Yellow | Black | Black | |||||||||||||
| Grey | Violet | ||||||||||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑪ | |||||
| ZION'S Trunk Cable Code: | |||||||||||||||
| Cat 5e UTP Jack to Jack Trunk Cables | |||||||||||||||
| Conductor: 0.50mm Copper; Cable OD:5.3±0.3mm; Max Length based on 1000bps: up to 30meter. | |||||||||||||||
| Zion Code | Description | ||||||||||||||
| U5eSCV1MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 1Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| U5eSCV2MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 2Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| U5eSCV3MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 3Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| U5eSCV4MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 4Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| U5eSCV5MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 5Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| ... | ... | ||||||||||||||
| U5eSCV30MBL-12JJ-BRBL | CAT5e UTP 24AWG Trunk Cable Blue PVC Sheath 30Meter 12 Cores Black Braiding Jacket | ||||||||||||||
| OEM/ODM service for you | |||||||||||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | |||||||||||||||
| • Customized Logo on Plug & Boot / Printing on Cable / Label/PE bag/Carton design • Different Color & Different Lengths Available / Different Molding/Strain Relief |
|||||||||||||||
