Zion Communication Cat3 6P2C RJ11 Connector with Phosphor Bronze Contacts and RoHS Compliance

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024001

Categories:

Cat3 Plug

Highlight:

6P2C Connector Plug Accessories

RJ11 Connector Plug Accessories

Cat3 Connector Plug Accessories

Product Description

Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories

Cat3 6P2C RJ11 Connector, Plug Accessories from China Manufacturer - Zion Communication

More details please visit: Copper System Equipment

Product Specifications

Part Information

Part Number	7024001 \| ZC-MP3-62UR
Product Type	Modular Plug, 6P/2C, CAT3, unshielded, round
Configuration	6-position, crystal head
Package Quantity	100/bag

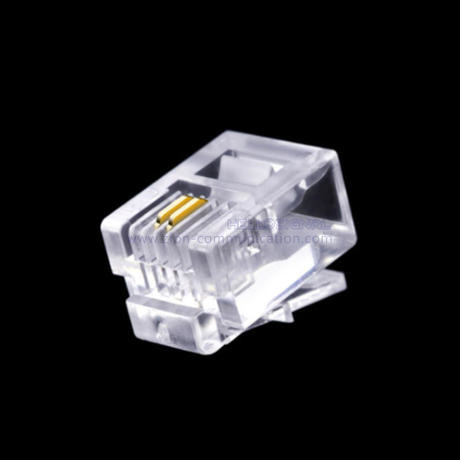

Physical Photo - Cat3 6P-2C RJ11 Connector

Dimensional Structure - Cat3 6P-2C RJ11 Connector

Technical Specifications

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, unshielded
Interface	RJ11
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Positions/Loaded Contacts	6P/2C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-24 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Compliance & Order Information

Regulatory Compliance

RoHS 2011/65/EU

Compliant

Order Details

Label Customization	Available
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Yes
Contact Email	info@zion-communication.com
