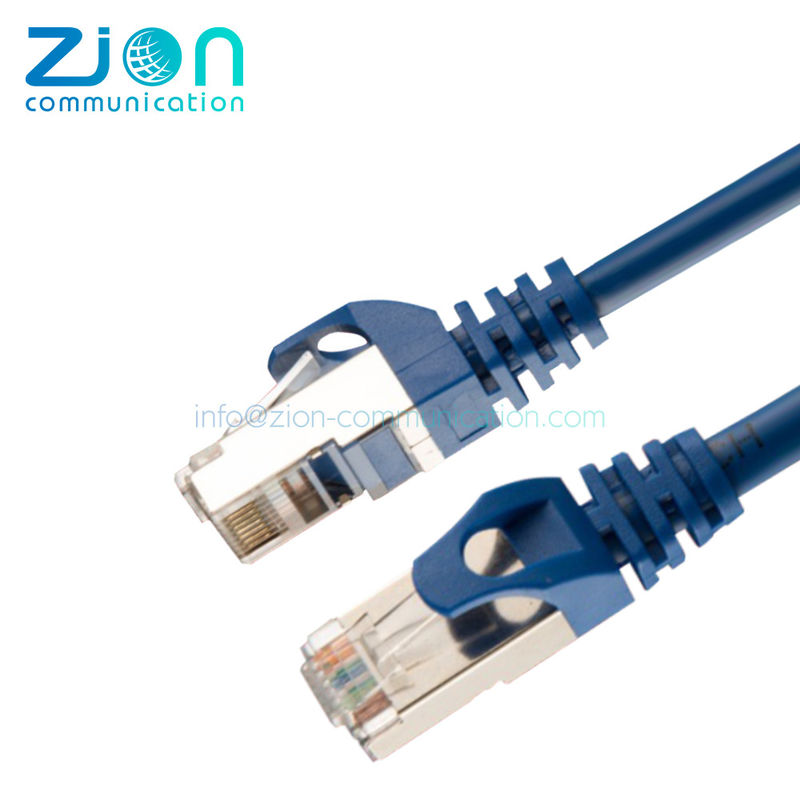

Cat.5e Patch Cord with Stranded Bare Copper Conductor for 100MHz Frequency and LSZH/PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Copper Patch Cord	Bnad:	HELLOSIGNAL
Cord:	CAT.5E F/UTP	Conductor:	Stranded Bare Copper / CCA
Max. Frequency:	100MHz	Out Jacket:	LSZH; PVC
Highlight:	Stranded Bare Copper Cat.5e Patch Cord , 100MHz Frequency RJ45 Network Cable , LSZH/PVC Jacket Indoor Category Cable

Product Description

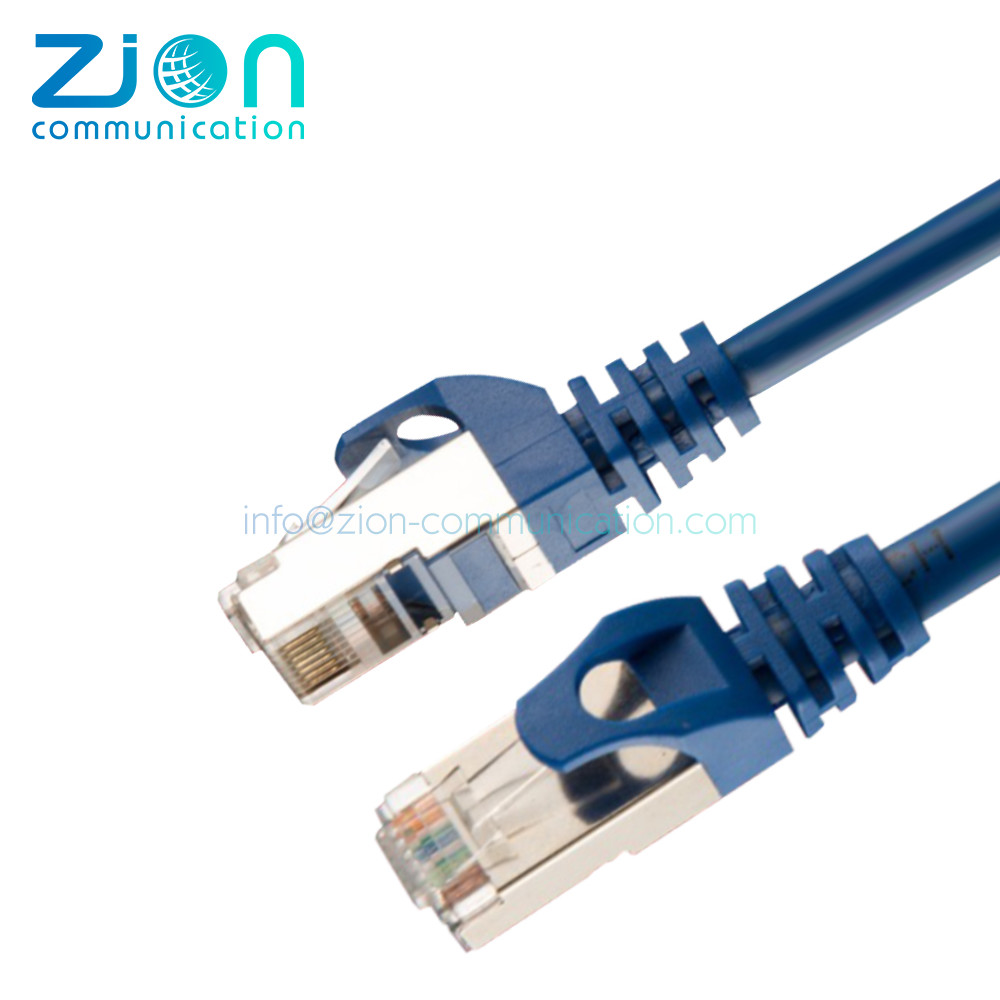

CAT5e F/UTP Patch Cord - RJ45 LAN Network Cable

High-quality 4-pair indoor Category 5e network cable manufactured in China, designed for reliable data transmission in various networking applications.

More details available on our Copper System Equipment page

Product Overview

F/UTP CAT5e cables are engineered for Class D transmission channels, supporting frequencies up to 100MHz. While standard Cat.5 supported Fast Ethernet (100Mbps), Cat.5e features improved Near-End Crosstalk (NeXT) and Far-End Crosstalk (FeXT) values, making it suitable for Gigabit Ethernet (1000Base-T) networks. This cost-effective standard remains popular in home, office, and prosumer markets.

Cable Construction

Conductor	Stranded bare copper / CCA
Pairs	4 Pairs
Insulation	HDPE
Insulation Colors	White, Blue, Orange, Green, Brown
Individual Shield	Pair in Al/PET Foil
Outer Jacket	LSZH; PVC

Technical Specifications

Version	Class	Max. Operating Frequency	Shielding Type	Plug Connector	Applications	Standards
Cat.5e	D	100MHz	F/UTP	RJ45	1000Base-T 2.5GBase-T (Lengths < 75m) 5GBase-T (Lengths < 75m)	ISO/IEC 11801 EN 50173

Note: Still widely used in LANs. Sufficient for standard network applications.

Product Coding System

Product Code Example: F5E 1 C V 03M WH

Component	Description
① Cable Type	F5E = F/UTP CAT5E
② Conductor Wires	1 = 7/0.16 2 = 7/0.12
③ Conductor Material	C = Bare Copper A = Copper Clad Aluminum
④ Outer Sheath Material	V = PVC Y = PE O = LSZH
⑤ Cable Length	03 = 0.3M, 05 = 0.5M 1 = 1M, 2 = 2M 3 = 3M, 5 = 5M 10 = 10M, 15 = 15M 20 = 20M, 30 = 30M
⑥ Outer Sheath Color
