Cat 8 Patch Cord with 2000MHz Frequency Bare Copper Conductor and LSZH Jacket for High-Speed Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Copper Patch Cord	Bnad:	HELLOSIGNAL
Cord:	CAT 8 S/FTP	Conductor:	7*0.2mm Stranded Bare Copper
Max. Frequency:	2000MHz	Out Jacket:	LSZH
Highlight:	2000MHz Cat 8 Patch Cord , Bare Copper Conductor Category 8 Network Cable , LSZH Jacket S/FTP Ethernet Cable

Product Description

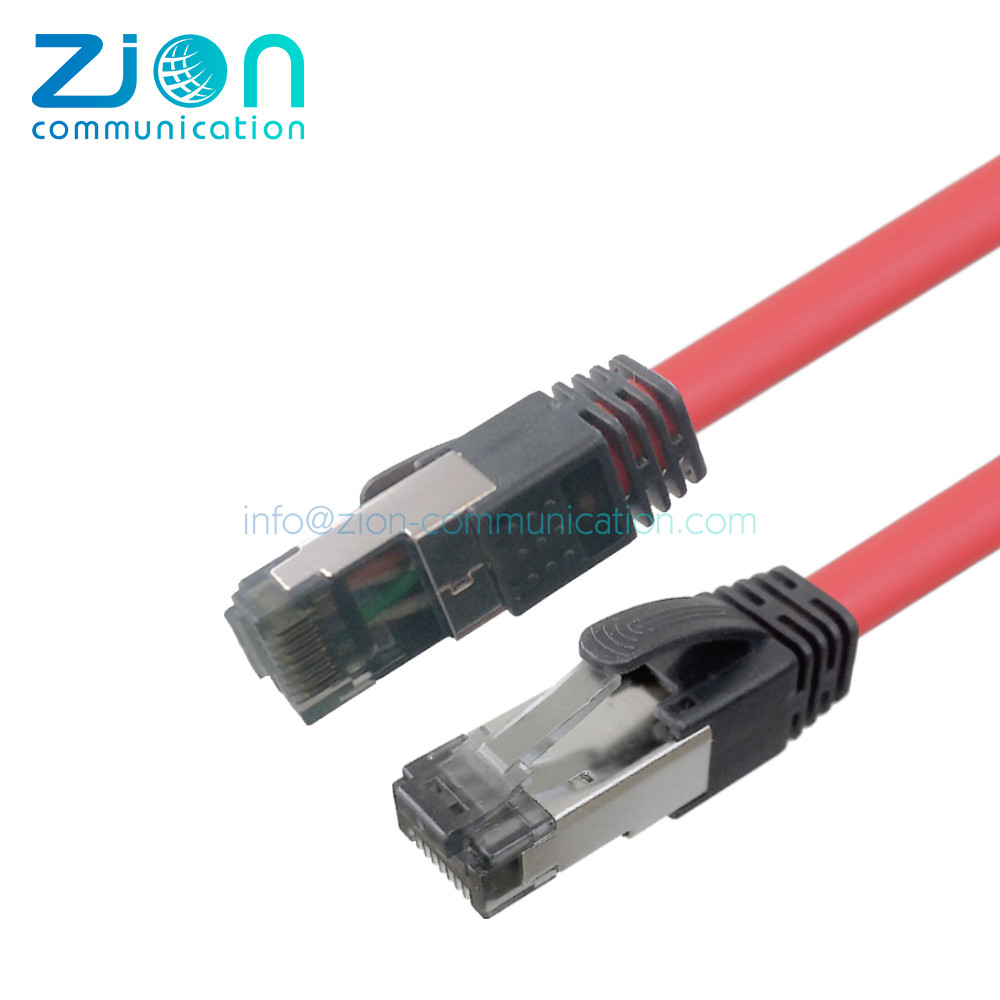

Cat 8 S/FTP Patch Cord - 2000MHz LAN Network Cable

High-performance Category 8 S/FTP patch cord designed for data centers and mission-critical environments requiring 25G/40GBase-T connectivity. Manufactured with bare copper conductors and comprehensive shielding for optimal signal integrity.

More details available here

Product Specifications

Application	Category 8 cabling systems are engineered for data centers and mission-critical environments upgrading to 25/40GBASE-T. The system supports shielded applications from Category 5e to 8 using the same RJ-45 connector form factor.
Conductor	7*0.2mm stranded bare copper
Pairs	4 Pairs
Insulation	HDPE
Insulation Colors	White, Blue, Orange, Green, Brown
Individual Shield	Pair in Al/PET Foil
Overall Shield	≥30% Aluminum Braiding
Out Jacket	LSZH; O.D.: 6.20mm

Technical Characteristics

Version	Class	Max. Operating Frequency	Shielding Type	Plug Connector	Application	Note	Standard
Cat 8.1	G (I)	2000MHz	S/FTP	RJ45	25GBase-T (50m) 40GBase-T (30m)	Faster server interconnection Data center connections	ISO/IEC TR 11801-99-1
Cat 8.2	G (II)	2000MHz	S/FTP	GG45, TERA	25GBase-T (50m) 40GBase-T (30m)	Limited usage	ISO/IEC TR 11801-99-1

Product Coding System

Component	Description
Cable Type	SF8 = S/FTP CAT8
Conductor Wires	1 = 7/0.2
Conductor Material	C = Bare Copper
Outer Sheath Material	V = PVC, O = LSZH
Cable Length	03=0.3M, 05=0.5M, 1=1M, 2=2M, 3=3M, 5=5M, 10=10M, 15=15M, 20=20M, 30=30M
Outer Sheath Color

Contact Information

WeChat: 0086 15088607575

WhatsApp: 0086 15088607575

Email: info@zion-communication.com
