Cat.5e Patch Cord with Stranded Bare Copper Conductor for 100MHz Frequency and LSZH Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Copper Patch Cord	Bnad:	HELLOSIGNAL
Cord:	CAT.5E U/UTP	Conductor:	Stranded Bare Copper / CCA
Max. Frequency:	100MHz	Out Jacket:	LSZH; PVC; PE
Highlight:	Stranded Bare Copper Cat.5e Patch Cord , 100MHz Frequency RJ45 Network Cable , LSZH Jacket Indoor Category Cable

Product Description

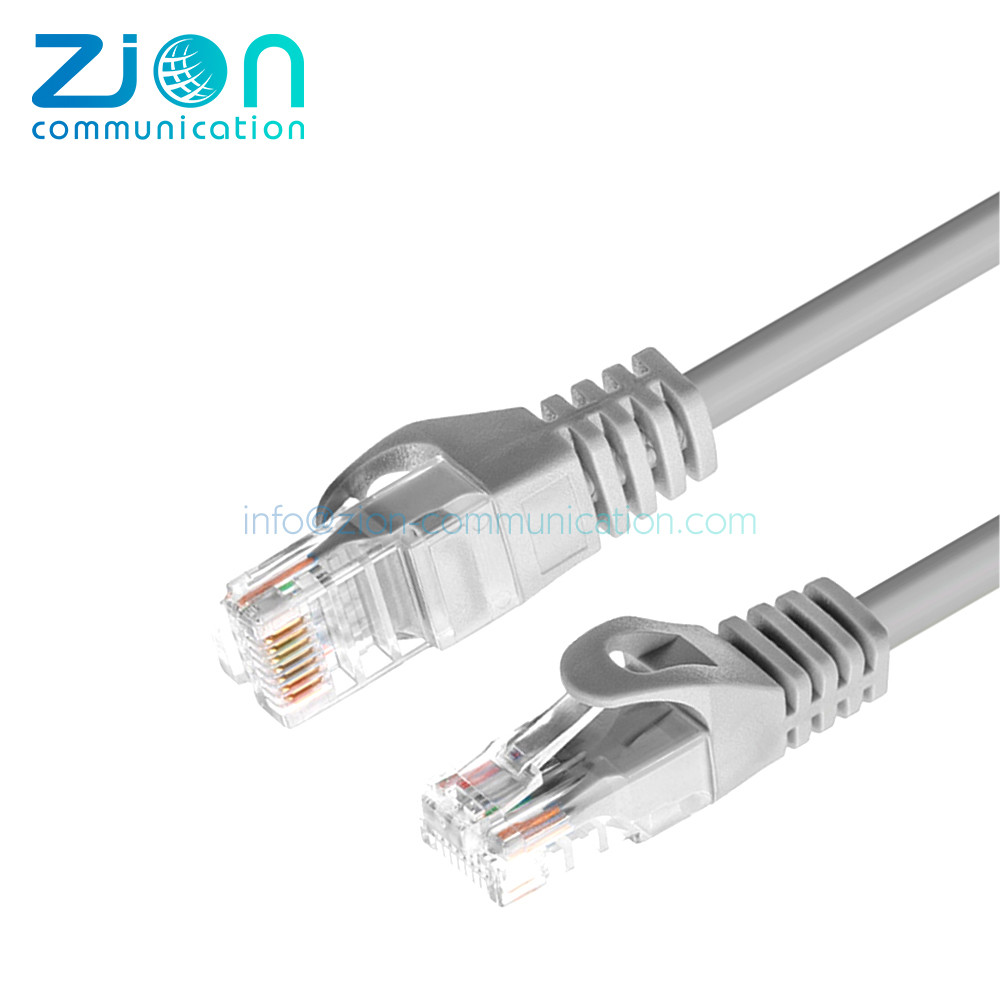

CAT5E U/UTP Patch Cord - RJ45 LAN Network Cable

Professional 4-pair indoor Category 5e network cable manufactured in China. Ideal for standard network applications and LAN installations.

More details available here

Product Overview

U/UTP CAT5E cables are designed for Class D transmission channels and are commonly used in existing installations. These cables support frequencies up to 100MHz and are available in Cat.5 and Cat.5e variants.

While Cat.5 supported Fast Ethernet at 100Mbps, it was not suitable for Gigabit Ethernet. Cat.5e features improved NeXT and FeXT values, making it ideal for 1000Base-T networks. This cost-effective standard remains popular in home and prosumer markets.

Cable Construction

Component	Specification
Conductor	Stranded bare copper / CCA
Pairs	4 Pairs
Insulation	HDPE
Insulation Colors	White, Blue, Orange, Green, Brown
Outer Jacket	LSZH; PVC; PE

Technical Specifications

Version	Class	Max. Operating Frequency	Shielding Type	Plug Connector	Applications	Standards
Cat.5e	D	100MHz	U/UTP	RJ45	1000Base-T 2.5GBase-T (Lengths < 75m) 5GBase-T (Lengths < 75m)	ISO/IEC 11801 EN 50173

Widely used in LANs and sufficient for standard network applications.

Product Coding System

Product Code Example: U5E 1 C V 03M WH

Position	Description	Options
① Cable Type	U5E = U/UTP CAT5E
② Number of conductor wires	1 = 7/0.16 2 = 7/0.12
③ Conductor material	C = Bare Copper A = Copper Clad Aluminum
④ Outer sheath material	V = PVC Y = PE O = LSZH
⑤ Cable length	03 = 0.3M, 05 = 0.5M 1 = 1M, 2 = 2M 3 = 3M, 5 = 5M 10 = 10M, 15 = 15M 20 = 20M, 30 = 30M
⑥ Outer sheath color
