Cat3 6P6C RJ11 Connector with Nickel Shield Plating and Phosphor Bronze Contacts Modular Plug

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024003

Categories:

Cat3 Plug

Highlight:

6P6C Connector Plug Accessories

Nickel Shield Plating Plug Accessories

Product Description

Cat3 6P6C RJ11 Connector Plug Accessories Nickel Shield Plating

Cat3 6P6C RJ11 Connector, Plug Accessories from China Manufacturer - Zion Communication
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

Product Information

Part Number	7024003 \| ZC-MP3-66UR
Product Type	Modular Plug, 6P/6C, CAT3, unshielded, round
Configuration	6-position, crystal head, 100/bag

Product Visuals

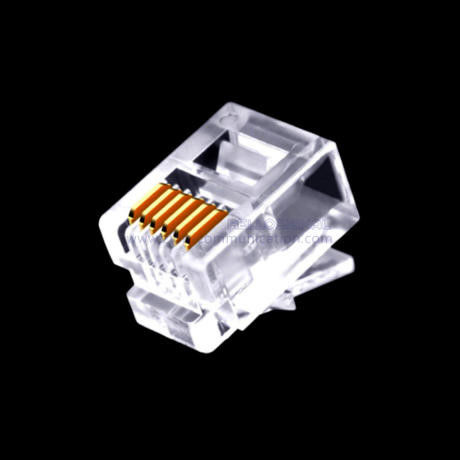

Physical Photo
Cat3 6P6C RJ11 Connector with Nickel Shield Plating and Phosphor Bronze Contacts Modular Plug 0

Dimensional Structure
Cat3 6P6C RJ11 Connector with Nickel Shield Plating and Phosphor Bronze Contacts Modular Plug 1

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Pass Fluke Test	Compliant

General Specifications

Cable Type	Round, unshielded
Interface	RJ11
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/loaded Contacts	6P/6C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-24 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Regulatory Compliance

RoHS 2011/65/EU

Compliant

Order Information

Label	Can be customized
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM	Yes
Email	info@zion-communication.com
