Cat 6A Patch Cord with 500MHz Max Frequency Stranded Bare Copper Conductor and LSZH/PVC Out Jacket for LAN Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Copper Patch Cord	Bnad:	HELLOSIGNAL
Cord:	CAT 6A S/FTP	Conductor:	7*0.2mm Stranded Bare Copper
Max. Frequency:	500MHz	Out Jacket:	LSZH; PVC
Highlight:	500MHz Max Frequency Cat 6A Patch Cord , Stranded Bare Copper Conductor LAN Network Cable , LSZH/PVC Out Jacket Indoor Category Cable

Product Description

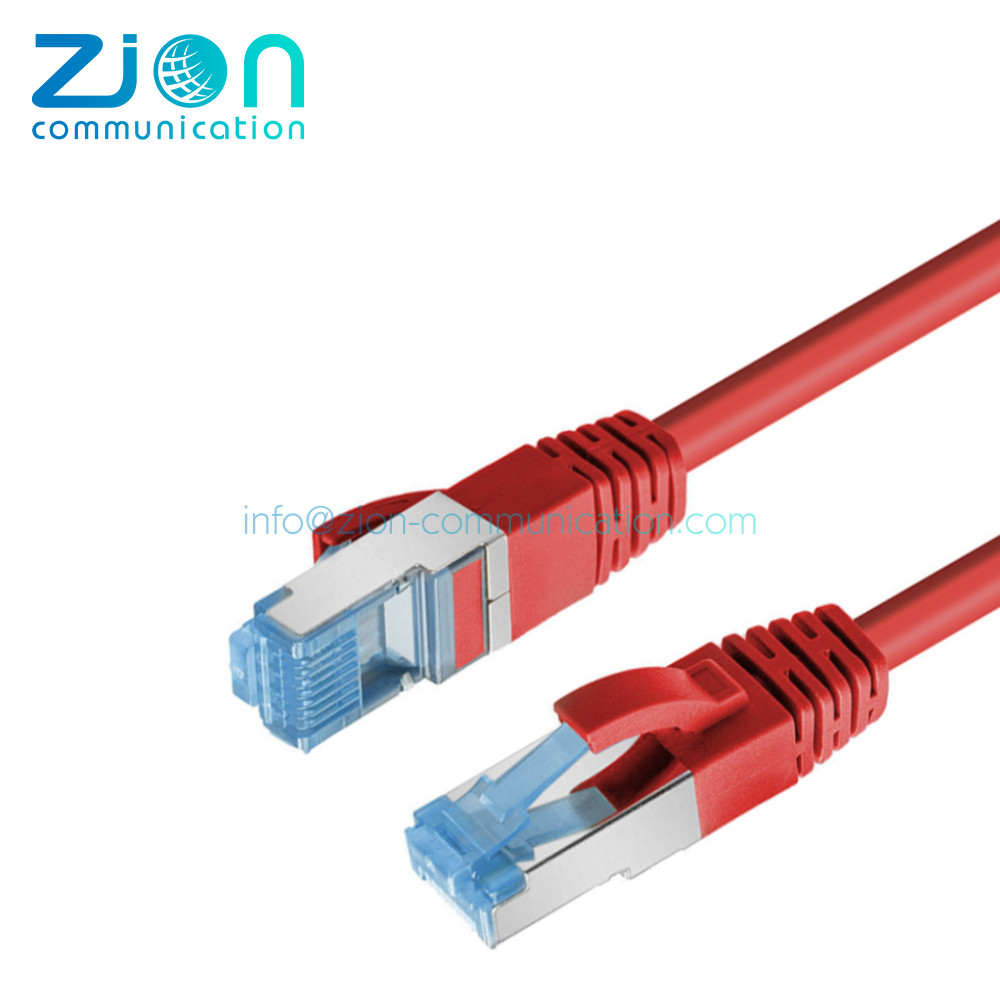

Cat 6A S/FTP Patch Cord - Bare Copper LAN Network Cable

More detail please visit: Zion Communication Copper System Equipment

S/FTP CAT6A Cable Overview

Category 6 cables belong to connection class E or EA and are divided into Cat.6 and Cat.6A (Cat.6 Augmented) for transmitting frequencies up to 250 or 500MHz. These cables are primarily used in data networks with multimedia applications and high network loads. To meet higher bandwidth requirements for 10 Gigabit Ethernet, Cat.6A cables are essential for modern installations designed for 10GBASE-T, supporting frequencies up to 500MHz over maximum 100m distances.

Cable Construction

Conductor:	Stranded bare copper
Pairs:	4 Pairs
Insulation:	HDPE
Insulation Colors:	White, Blue, Orange, Green, Brown
Individual Shield:	Pair in Al/PET Foil
Overall Shield:	≥30% Aluminum Braiding
Out Jacket:	LSZH; PVC

Technical Specifications

VERSION	CLASS	MAX. OPERATING FREQUENCY	SHIELDING TYPE	PLUG CONNECTOR	USED FOR	NOTE	NORMAL
Cat 6A	EA	500MHz	S/FTP	RJ49	10GBase-T	Official minimum for 10GbE	ISO/IEC 11801:2002 Appendix 2

Product Coding System

SF6A 1 C V 03M WH

① ② ③ ④ ⑤ ⑥

Cable Type	Number of conductor wires	Conductor material	Outer sheath material	Cable length	Outer sheath color
SF6A = S/FTP CAT6A	1 = 7/0.20 2 = 7/0.18 3 = 7/0.16	C = Bare Copper	V = PVC O = LSZH	03 = 0.3M, 05 = 0.5M 1 = 1M, 2 = 2M 3 = 3M, 5 = 5M 10 = 10M, 15 = 15M 20 = 20M, 30 = 30M
