| Conductor: | Stranded Oxygen-free Copper | Conductor QTY: | 4 Twisted Pairs |
|---|---|---|---|
| Wire Gauge: | 26AWG (7/0.16mm) | Insulation Material: | HDPE |
| OD Of Insulation: | 0.82±0.05 Mm | Sheath/Out Jacket: | LSZH OR PVC |
| OD Of Sheath: | 5.3 ± 0.3 Mm | The Thickness Of Sheath: | 0.55 ± 0.05 Mm |
| Breakout Length: | 0.3 M | Color: | Gray/Blue Or Customized |

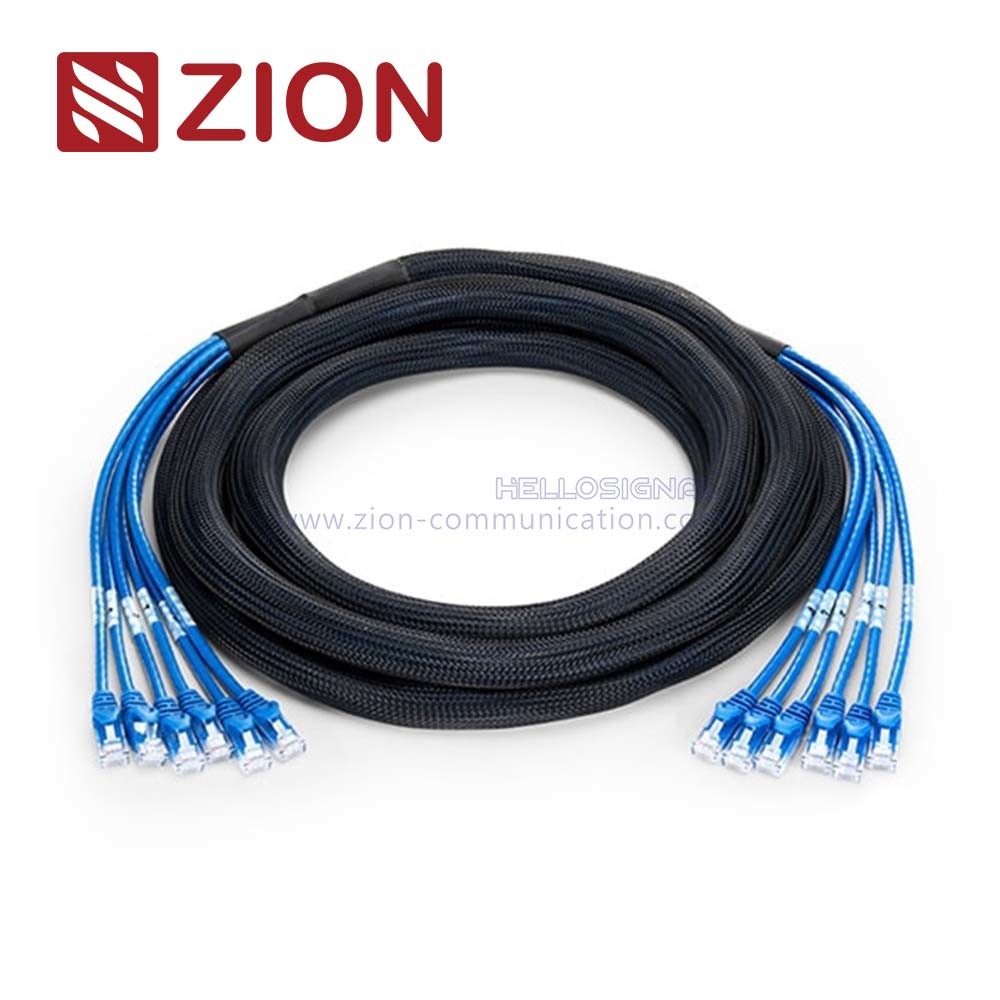

| Cat 5e UTP Plug to Plug Trunk Cables | ||||||||||||||
| Ideal for Backbone and Cross-connect Cabling Systems | ||||||||||||||
|
||||||||||||||
| Description | ||||||||||||||
| ZION pre-terminated CAT5e UTP trunk cables provide a quick solution for links in the entire data center solution. They are ideal for environments with frequent moves, adds, and changes, offering fast and efficient installation of multiple point-to-point connections. |
||||||||||||||
| Application | ||||||||||||||
| Data Center Cabinets / Telecommunications Racks / Quick Network Deployment | ||||||||||||||
| Technical Specification | ||||||||||||||
| • Available in variable bundle sizes of 6, 8, or 12 cores depending on your inquiry. • Level: Plenum, Riser, LSZH, Dca, Eca CPR rating. • Custom lengths in 0.50-meter increments. Total trunk length shall not exceed ANSI/TIA standards. • Unique identification number on the label at the end for each cable. • Out Jacket: PVC/LSZH or braiding material. • ISO/IEC 11801-1, EN 50173-1, TIA 568 • Data center cabling standards ISO/IEC 11801-5,ISO/IEC 22237-5, EN 50600-2-4, EN 50173-5, and TIA 942. • Rated for 100MHz communications • Designed for 1000M Base-T Ethernet • Pass the Fluke Channel Test |
||||||||||||||
| Specification (Datasheet) | ||||||||||||||
| Product Type | ||||||||||||||
| SKU | U5e2CV1MG-12PP-BRB (Please check ZION'S trunk cable code) | |||||||||||||
| Shielding Type | Unshielded (UTP) | |||||||||||||
| Termination End | Plug to Plug | |||||||||||||
| Cable Count | 6/8/12 | |||||||||||||
| Storage temperature | -40℃ ~ +70℃ | |||||||||||||
| Operating temperature | -10℃ ~ +60℃ | |||||||||||||
| Single Patch Cable Datasheet | ||||||||||||||
| Conductor: | Stranded Oxygen-free copper | |||||||||||||
| Conductor QTY(Pairs) | 4 Twisted Pairs | |||||||||||||
| Wire Gauge (AWG) | 26AWG (7/0.16mm) | |||||||||||||
| Insulation Material: | HDPE | |||||||||||||
| OD of Insulation | 0.82±0.05 mm | |||||||||||||
| Insulation Color Per TIA/EIA 568-B |
Orange, White/White-Orange | |||||||||||||
| Blue, White/White-Blue | ||||||||||||||
| Green, White/White-Green | ||||||||||||||
| Brown, White/White-Brown | ||||||||||||||
| Sheath/Out Jacket: | LSZH OR PVC | |||||||||||||
| OD of sheath | 5. 0± 0.3 mm | |||||||||||||
| Thickness of sheath | 0.55 ± 0.05 mm | |||||||||||||
| Breakout Length | 0.3 m | |||||||||||||
| Color | Gray/Blue or customzied | |||||||||||||
| Termination End | ||||||||||||||
| Plug Type | UTP CAT5e RJ45 | |||||||||||||
| Plug Material | Polycarbonate | |||||||||||||
| Boot | LSZH OR PVC | |||||||||||||
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | |||||||||||||
| Durability | 750 Mating Cycles min. | |||||||||||||
| Outer Jacket | ||||||||||||||
| Material | PVC/LSZH/Braiding | |||||||||||||
| Electrical Chatracteristics (20℃) | ||||||||||||||
| The following are laboratory data at 20°C. Actual environments may vary slightly. | ||||||||||||||
| Data Rate Support | 1000 Base-T | |||||||||||||
| Standard Bandwidth | 100 MHz | |||||||||||||
| Reference Bandwidth | 350 MHz | |||||||||||||
| Impedance (1-100MHz) | 100 ± 15 | |||||||||||||
| Delay Skew (1-100MHz) | ≤45 ns/100m | |||||||||||||
| Max. DC Resistance | 14.8 Ω/100m | |||||||||||||
| Mechanical Chatracteristics | ||||||||||||||
| Before Aging Tesnsile Strength | ≥13.5 Mpa | |||||||||||||
| Before Aging Elongation | ≥150 % | |||||||||||||
| Aging Period | 100℃×24h×7d (℃×hrs) | |||||||||||||
| After Aging Tensile Strength | ≥12.5 Mpa | |||||||||||||
| After Aging Elongation | ≥125 % | |||||||||||||
| Cold Bend | No Visible Cracks | |||||||||||||
| Schematic of the finished product | ||||||||||||||
| The actual number of cores will be 6,8,12; the color can also be customized according to customer requirements. | ||||||||||||||
|
|
||||||||||||||
|
|
||||||||||||||
| ZION'S Trunk Cable Code: | ||||||||||||||
| U5e 1 C O 05M BL-12 P P-BR B ①②③④ ⑤ ⑥ ⑦⑧⑨⑩⑪ |
||||||||||||||
| Cable Type | Number of conductor wires |
Conductor material |
Outer sheath material |
Cable length |
Cat5e sheath color | Cores | End A | End B | Out Jacket Material |
Out Jacket Color |
||||
| U5e= U/UTP CAT5e |
2=7/0.16 |
C= Bare Copper |
V= PVC O=LSZH |
1=1M 1.5=1.5M ... 10=10M |
White | Pink | 6 8 12 |
Plug Jack |
Plug Jack |
V=PVC VR=Riser VP=Plenum O=LSZH BR=Braiding |
||||
| Brown | Blue | Grey | ||||||||||||
| Green | Red | Blue | ||||||||||||
| Yellow | Black | Black | ||||||||||||
| Grey | Violet | |||||||||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑪ | ||||
| ZION'S Trunk Cable Code: | ||||||||||||||
| Cat 5e UTP Plug to Plug Trunk Cables | ||||||||||||||
| Conductor: 7/0.16mm Copper; Cable OD:5.0±0.3mm; Max Length based on 1000bps: up to 30meter. | ||||||||||||||
| Zion Code | Description | |||||||||||||
| U5e2CV1MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 1Meter 12 Cores Black Braiding Jacket | |||||||||||||
| U5e2CV1.5MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 1.5Meter 12 Cores Black Braiding Jacket | |||||||||||||
| U5e2CV2MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 2Meter 12 Cores Black Braiding Jacket | |||||||||||||
| U5e2CV3MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 3Meter 12 Cores Black Braiding Jacket | |||||||||||||
| U5e2CV5MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 5Meter 12 Cores Black Braiding Jacket | |||||||||||||
| ... | ... | |||||||||||||
| U5e2CV30MG-12PP-BRB | CAT5e UTP 26AWG Trunk Cable Gray PVC Sheath 30Meter 12 Cores Black Braiding Jacket | |||||||||||||
| OEM/ODM service for you | ||||||||||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | ||||||||||||||
| • Customized Logo on Plug & Boot / Printing on Cable / Label/PE bag/Carton design • Different Color & Different Lengths Available / Different Molding/Strain Relief |
||||||||||||||
