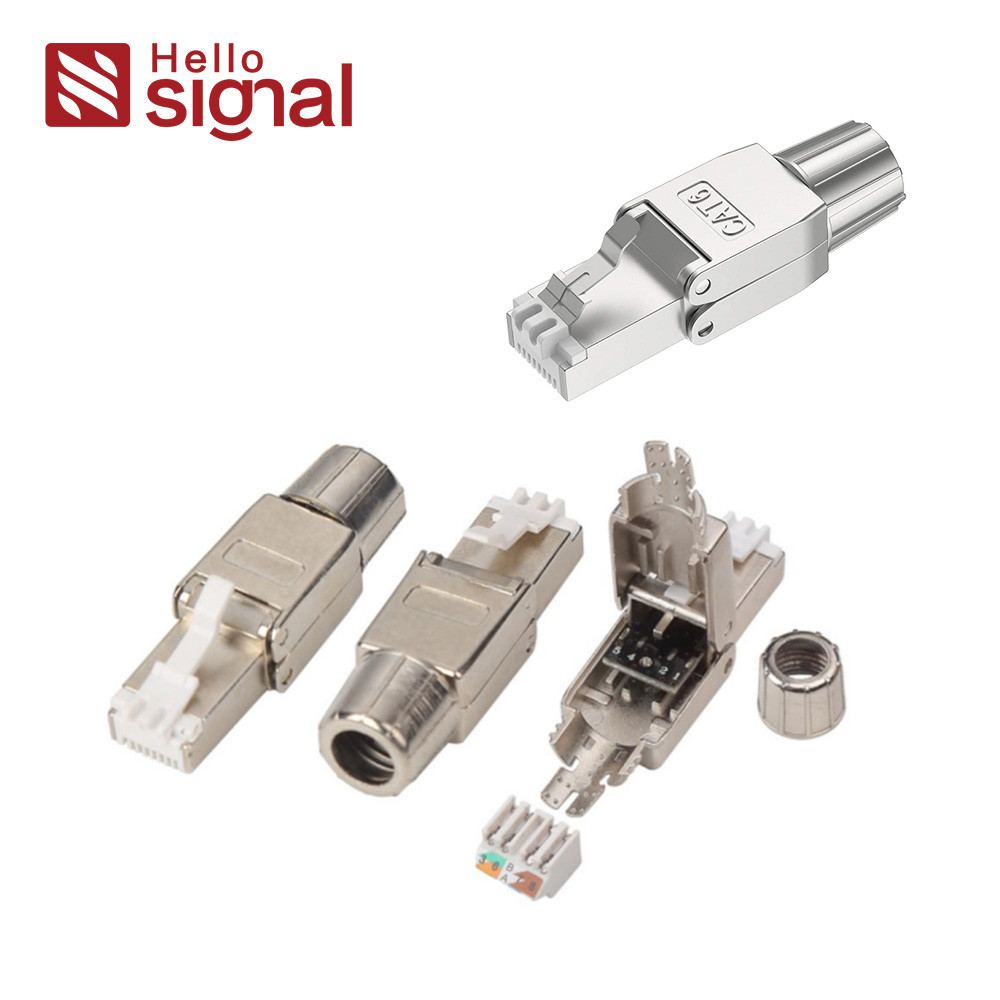

RJ45 FTP CAT6 Toolless Plug CAT6 RJ45 Shielded Plug ZC-G40S-4-C6

Basic Information
Place of Origin: China
Brand Name: OEM or HELLOSIGNAL
Certification: CE, RoHS, CPR,Delta, UL,ETL
Model Number: Tool Free RJ45 Connector
Minimum Order Quantity: 100 PCS
Packaging Details: 1PC/PE BAG, BAGS/Carton
Delivery Time: 40 working days
Payment Terms: T/T, L/C
Supply Ability: 5,000,000PCS / Month
Detail Information
Shielded Material: Zinc Alloy Plastic Material: New Pc
Gold Pins: Phosphor Bronze, Gold Plating 3u Terminal Pins: Phosphor Bronze, Zin Plating
Rj45 Contact Life: 750 Times Min IDC Terminal Life: 250 Times Min
Type: Cat 6 Application: Telecommunication, Networking, Telecom/CATV
Packing: 1PC/PE Bag
High Light:

CAT6 RJ45 Shielded Plug

,

CAT6 Toolless RJ45 Plug

,

Zinc Alloy Toolless CAT6 Connector


Product Description

TYPE:

  • CAT6 RJ45 shielded toolless plug.
  • Colour: Silver.
  • Rohs, reach compliant.



CABLE MATCHED:

  • Soild and stranded.
  • 22AWG/23AWG/24AWG.



ELECTRICAL:

  • Contact resistance: 20m ohm.
  • Insulation resistance: <= 250m ohm @100 v DC.
  • Withstand voltage: DC1000V AC700V RMS 60HZ, IMIN.
  • Cat6a permanent link: Conform to ANSI/TIA/EIA 568B. 2-10.



ENVIRONMENTAL:

  • Storage: -40°/ +70°
  • Operation: -10°/ +60°



MECHANICAL:

  • Shielded material: Zinc alloy.
  • Plastic material: New pc.
  • Gold pins: Phosphor bronze, gold plating 3u”.
  • Terminal pins: Phosphor bronze, zin plating.
  • Rj45 contact life: 750 times min.
  • IDC terminal life: 250 times min .
