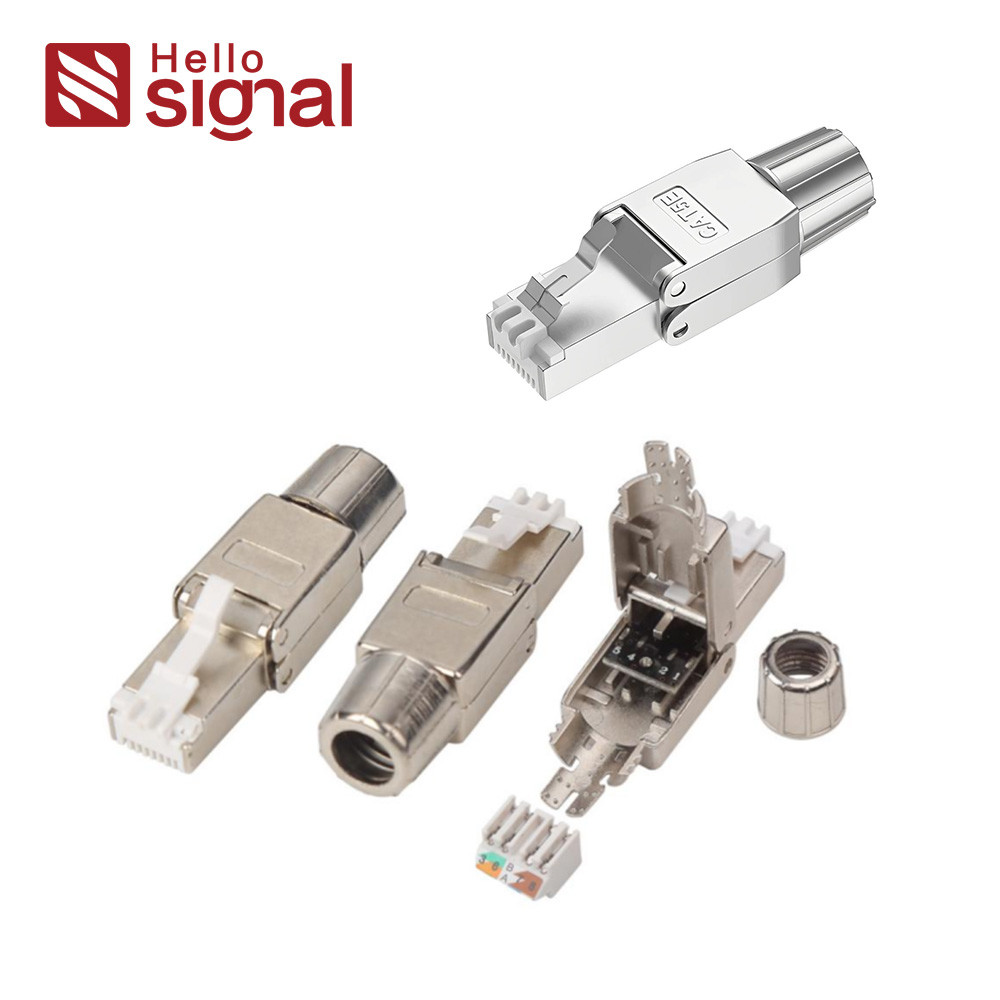

22AWG / 23AWG / 24AWG CAT5E RJ45 Shielded Toolless Plug ZC-G40S-4-C5E

TYPE:

• CAT5E RJ45 shielded toolless plug.
• Colour: Silver.
• Rohs, reach compliant.

CABLE MATCHED:

• Soild and stranded.
• 22AWG/23AWG/24AWG.

ELECTRICAL:

• Contact resistance: 20m ohm.
• Insulation resistance: <= 250m ohm @100 v DC.
• Withstand voltage: DC1000V AC700V RMS 60HZ, IMIN.
• Cat6a permanent link: Conform to ANSI/TIA/EIA 568B. 2-10.

ENVIRONMENTAL:

• Storage: -40°/ +70°
• Operation: -10°/ +60°

MECHANICAL:

• Shielded material: Zinc alloy.
• Plastic material: New pc.
• Gold pins: Phosphor bronze, gold plating 3u”.
• Terminal pins: Phosphor bronze, zin plating.
• Rj45 contact life: 750 times min.
• IDC terminal life: 250 times min .
