| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Durability: | <0.3dBtypical Change, 200 Matings | Interchangeability: | ≤0.2dB |
|---|---|---|---|
| Tensile Strength: | >70N | Insert-pull Test: | 500times, IL＜0.5dB |
| Operating Temperature (℃）: | -40 To + 85°C | ||
| High Light: | MTP Fiber Optic Trunk Cable,EIA/TIA-604-5 MTP Fiber Trunk Cable,MTP Multimode Fiber Trunk Cable |
||
12F MPO(MTP)-MPO(MTP) Fiber Patch Cord is designed for 40G QSFP+ SR4
40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center
| Zion Code | Zion Description | |||||||

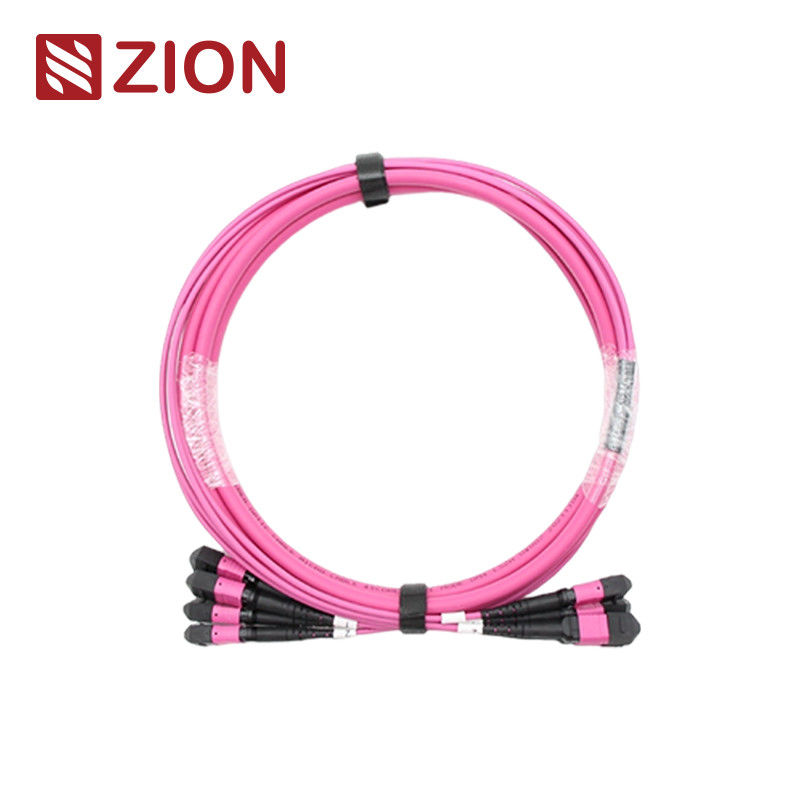

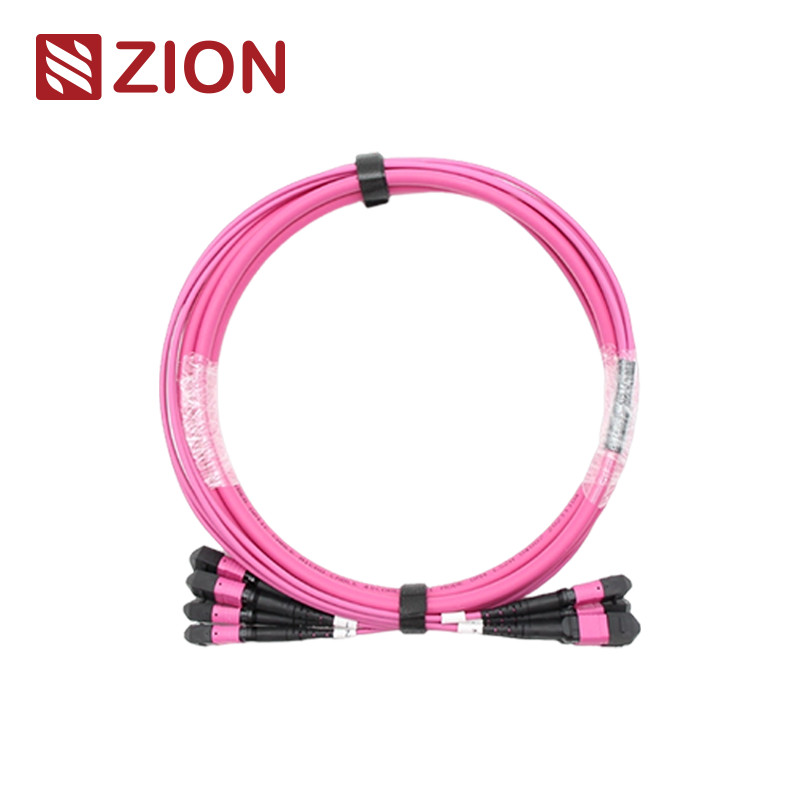

| ZCM22C8HIAX | (4*12)48F MTP OM4 Fiber Optic Turnk Cable | |||||||
| The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+. | ||||||||
| MTP connector types are distinguished according to the EIA/TIA-604-5 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC). | ||||||||
| 24F-144F MPO/MTP TRUNK CABLE is terminated with MPO/MTP connector on both ends. MPO/MTP Patch cable/trunk cables connect MPO/MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO/MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO/MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel. | ||||||||
Connectors’ Industrial Standard:
| Connector | Reference | Housing Details | ||||||
| MTP Singlemode | EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MTP) SM APC: Yellow connectors+black boot (Super low loss MTP) |
||||||
| MTP Multimode | EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP) |
||||||
| Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C | ||||||||
| 10G Fiber Channel Compliant | ||||||||
| 40G and 100G IEEE 802.3 |
Optical Specifications:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) | ||||||
| nsertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
||||||
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) |
≤0.3dB | ≤0.3dB | ||||||
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB | ||||||
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB | ||||||
| Durability | <0.3dBtypical change, 200 matings | |||||||
| Interchangeability | ≤0.2dB | |||||||
| Tensile strength | >70N | |||||||
| Insert-pull Test | 500times, IL＜0.5dB | |||||||
| Operating Temperature (℃) | ·-40 to + 85°C | |||||||
Features:
| Low insertion loss, high return loss | ||||||||
| MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies | ||||||||
| Economical solution for mass-termination of fiber | ||||||||
| Designed for low loss and standard loss SM and MM applications | ||||||||
| Ruggedized round cable, oval cable and bare ribbon options available | ||||||||
| Color coded housings available to differentiate fiber type, polish type and/or connector grade | ||||||||
| Good in repeatability and exchangeability |
Application:
| All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas. | ||||||||
| The Data Center application with high dense degree environment | ||||||||
| The optical fiber to the building | ||||||||
| The internal connector application in fiber equipment. |
Naming Rules&Order Confirmation Information:
Push Pull Tab For Senko MTP
24F-144F MPO/MTP TRUNK CABLE
Products Materials-Cable
| Connector | Fiber Channel | |||||||
Note: Female connector need to connect with male connector type.
MTP-MTP 12F Trunk cable drawing.
| Overall Length(L)(m) | length of tolerance(cm) | |||||||
| 0<L<1 | +5/-0 | |||||||
| 1<L<10 | +10/-0 | |||||||
| 10<L<40 | +15/-0 | |||||||
| 40<L | ‘+0.5% x L/-0 | |||||||
Three Connection Methods Help Keep the Right MTP/MPO Polarity
Because 24F-144F MPO/MTP trunk cable’s unit connector is 12F MPO/MTP, So it have same polarity as single 12F
MPO/MTP trunk cable.
Material’s details
Zion Communication's Hot MPO/MTP TRUNK CABLE
| Zion Code | Zion Description | |||||||
| 7236055 | ZCM12C2HIAX | (4*12)48F MPO SM Fiber Optic Turnk Cable | ||||||
| 7236056 | ZCM12C7HAAX | (4*12)48F MPO OM3 Fiber Optic Turnk Cable | ||||||
| 7236057 | ZCM12C8HMAX | (4*12)48F MPO OM4 Fiber Optic Turnk Cable | ||||||
| 7236058 | ZCM22C2HIAX | (4*12)48F MTP SM Fiber Optic Turnk Cable | ||||||
| 7236059 | ZCM22C7HAAX | (4*12)48F MTP OM3 Fiber Optic Turnk Cable | ||||||
| 7236060 | ZCM22C8HMAX | (4*12)48F MTP OM4 Fiber Optic Turnk Cable | ||||||
Packaging
| This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized. | ||||||||
OEM/ODM service for you
| 1. Cable color, printing word, material of cable jacket, connector’s color | ||||||||
| 2. OEM Label, Identify ring, cable’s label,box, shipping marks | ||||||||
| 3. Different quality Level. |
|
|
7236055, ZCM12C2HIAX | (4*12)48F MPO SM Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
|
|
7236056, ZCM12C7HAAX | (4*12)48F MPO OM3 Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
|
|
7236057, ZCM12C8HMAX | (4*12)48F MPO OM4 Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
|
|
7236058, ZCM22C2HIAX | (4*12)48F MTP SM Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
|
|
7236059, ZCM22C7HAAX | (4*12)48F MTP OM3 Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
|
|
7236060, ZCM22C8HMAX | (4*12)48F MTP OM4 Fiber Optic Trunk Cable | Optical Networking, MPO-MTP TRUNK CABLE, MTP/MPO, Optical Components |
