12F OM4 MTP-LC 2.0mm Straight Harness Cable for High-Density Data Center Applications

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Durability:	<0.3dBtypical Change, 200 Matings	Interchangeability:	≤0.2dB
Insert-pull Test:	Above 600 Times, IL＜0.5dB	Tensile Strength:	>70N
Operating Temperature (℃）:	-40 To + 85°C
Highlight:	12F 2.0mm Straight Harness Cables , OM4 Fiber Optic Cable 12 Cores

Product Description

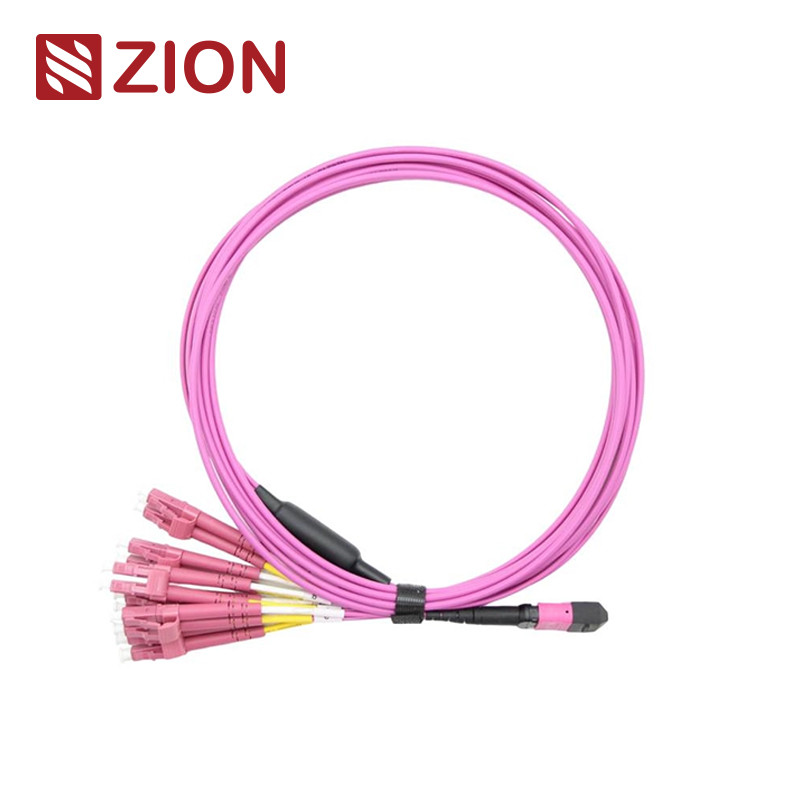

12F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables

Zion Product Information

Zion Code: ZCM21A28HAAX
Description: 12F MTP OM4 Fiber Optic MTP-LC 2.0mm Straight Harness Cables

The MTP (Multi-Fiber Push On) connector is a high-density multi-fiber connector type designed for data center applications, fiber-to-the-building installations, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.

This 12-core MTP to 6 LC Duplex (or 12 LC Simplex) straight harness cable assembly is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. All fanout cables have identical lengths, providing space-saving solutions and reducing cable management challenges.

Connector Standards & Specifications

MTP Connector Standards

Reference: EIA/TIA-604-5
Singlemode APC Housing: Green connectors + black boot (Standard Loss); Yellow connectors + black boot (Super Low Loss)
Multimode PC Housing: OM1/OM2: Beige + black boot; OM3/OM4: Aqua + black boot (Standard & Super Low Loss); OM3/OM4: Heather Violet + black boot (Standard Loss)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3 compliant

Other Connector Standards

SC: TIA/EIA, FOCIS3, GR-326, NTT-SC, IEC61754-4, JIS C5973
LC: TIA/EIA, FOCIS10, GR-326, EIA/TIA-604-10, IEC61754-20, JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326, IEC61754-13, JIS C5973
ST: TIA/EIA, FOCIS2, GR-326, IEC61754-2, JIS C5973
E2000: IEC61754-15

Optical Performance Specifications

Parameter	Singlemode (APC)	Multimode (PC)
Insertion Loss (MTP)	Standard: ≤0.75dB (max), ≤0.50dB (typical) Super Low: ≤0.35dB (max), ≤0.20dB (typical)	Standard: ≤0.6dB (max), ≤0.50dB (typical) Super Low: ≤0.35dB (max), ≤0.20dB (typical)
Insertion Loss (LC/SC/FC/ST)	≤0.3dB	≤0.3dB
Return Loss (MTP)	≥60dB	≥25dB
Return Loss (LC/SC/FC/ST)	APC: ≥60dB; UPC: ≥50dB	≥35dB
Durability	<0.3dB typical change (200 matings)
Operating Temperature	-40°C to +85°C

Key Features

Low insertion loss and high return loss performance
MT-based multi-fiber connector with 4, 8, 12, and 24 fiber terminations
Economical solution for mass-termination of fiber
Designed for both low loss and standard loss singlemode and multimode applications
Available in ruggedized round cable, oval cable, and bare ribbon options
Color-coded housings for easy fiber type and polish type identification
Excellent repeatability and exchangeability

Applications

Designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications including:

High-density data center environments
Fiber-to-the-building installations
Internal connections within fiber optic equipment

Packaging & Customization

Standard carton sizes: 34×22×15 cm, 44×34×24 cm, 54×39×34 cm (selected based on quantity). Custom packaging available upon request.

OEM/ODM Services

Customization options include:

Cable color, printing, and jacket material
Connector color customization
OEM labeling, identification rings, and cable labels
Custom packaging and shipping marks
Different quality levels available
