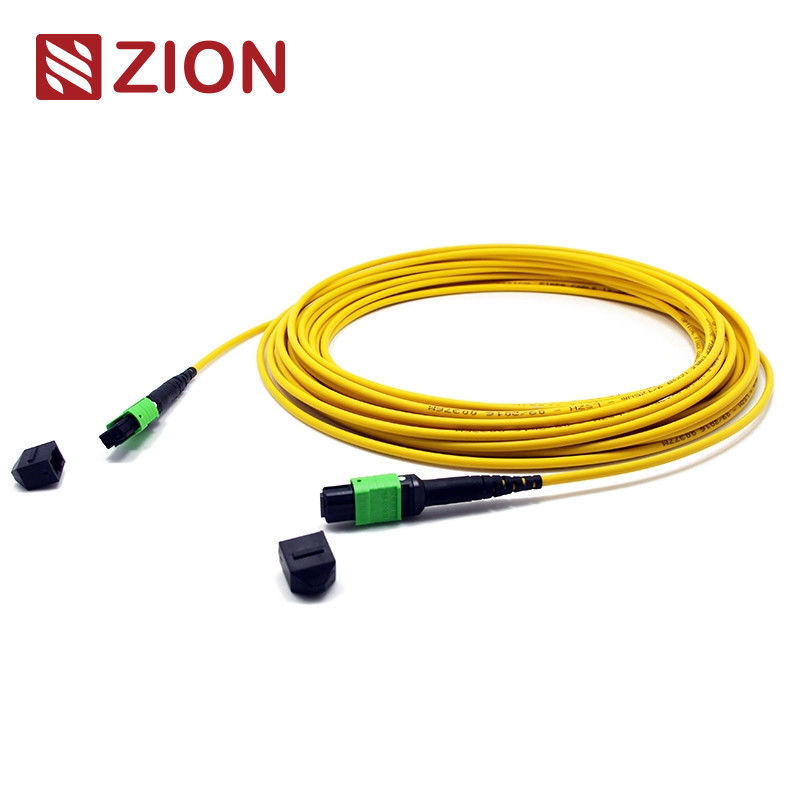

24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord
Custom-length MPO patch cord designed for high-density environments including data centers, optical fiber to building deployments, and internal optical equipment connections.
Product Code: ZCM1152HIA1X
Key Features
- Connector Type: MPO Female to MPO Female
- Fiber Type: Singlemode (SM) with 24 fibers in 3.0mm LSZH jacket
- Data Rate Support: Optimized for 10G/40G/100G applications
- Application: Interconnects MPO modules and backbone cabling in high-density environments
- Flexibility: Enables rapid deployment and easy connector style changes
Industrial Standards Compliance
MPO Singlemode: Green connectors + black boot (SM APC)
MPO Multimode: Various color coding for different fiber types
Complies with IEC 61754-7, IEC 61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5 (FOCIS5), TIA-568-C, and IEEE 802.3 standards
Optical Specifications
| Parameter |
Specification |
| Insertion Loss (MPO) Singlemode (APC) |
≤0.75dB (Std.), ≤0.35dB (Low Loss) |
| Insertion Loss (MPO) Multimode (PC) |
≤0.60dB (Std.), ≤0.35dB (Low Loss) |
| Return Loss (MPO) Singlemode (APC) |
≥60dB (APC 8-degree polishing) |
| Return Loss (MPO) Multimode (PC) |
≥25dB |
| Durability Singlemode (APC) |
<0.3dB typical change (200 matings) |
| Tensile Strength Singlemode (APC) |
>70N |
| Operating Temperature Singlemode (APC) |
-40°C to +85°C |
Special Features
- Low Insertion Loss for minimal signal degradation
- High Return Loss reduces reflections for improved performance
- MT-Based Multi-Fiber Connector supports up to 144 fiber terminations
- Durable design supports ≥500 plug-ins with stable performance
- Available in round, oval, or bare ribbon configurations
- Color coding differentiates fiber type, polish type, and connector grade
Applications
Data Centers: High-density backbone cabling for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics direct connections. Interconnects MPO cassettes, panels, or ruggedized MPO fan-outs.
Optical Fiber to the Building: Supports large-scale optical fiber deployments for high-speed communication.
Internal Fiber Equipment Connections: Ideal for internal connectivity within optical devices or networking hardware.
Product Documentation
Technical Drawings
Length Tolerance Specifications:
0<L<1: +5/-0 cm
1<L<10: +10/-0 cm
10<L<40: +15/-0 cm
40<L: +0.5% x L/-0 cm
Polarity Solutions
Base-24 Polarity Solution
24-fiber MTP/MPO cable facilitates migration to 100G networks by doubling the density of 12-fiber cabling in the same footprint. This reduces fiber count, allows for fewer cable pathways, and improves airflow. OMC recommends Type A (key-up to key-down) MTP/MPO trunk cable with Type A and Type AF cassettes for simplified connectivity.
Related Products
Zion Communication's Hot Trunk Cable Products:
ZCM1122HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
ZCM1152HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters
ZCM1127HLA1X - MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
And 9 additional MTP/MPO patch cord variants...
Packaging
Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Packaging can be customized to meet specific requirements.
OEM/ODM Services
Customized solutions available including logo customization, label/PE bag/carton design. Professional R&D team supports custom requirements.
