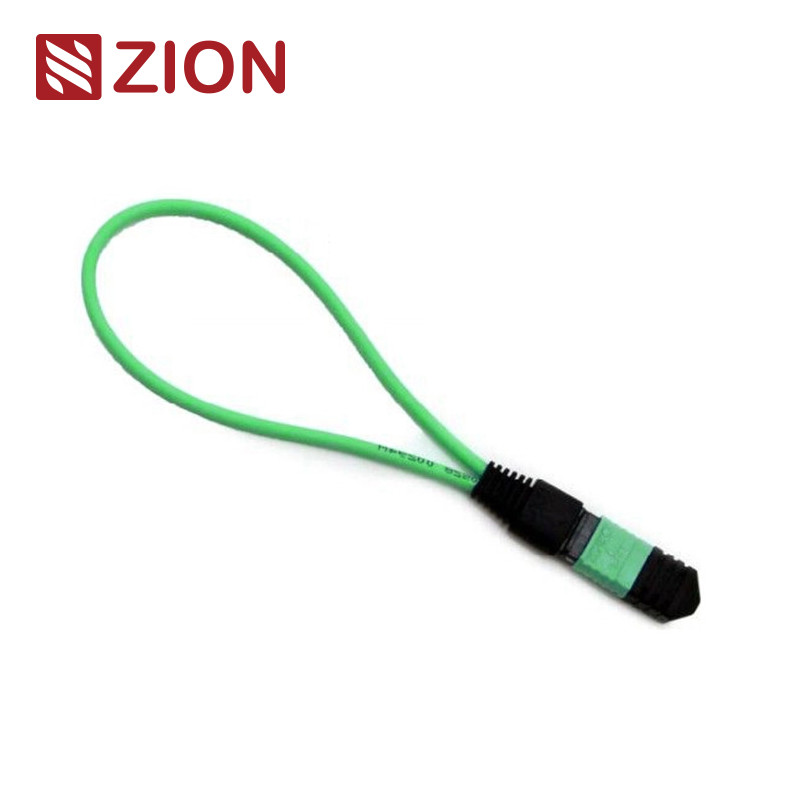

24 Fibers MTP Singlemode Fiber Optic Loopback Module with High Return Loss for 40G/100G Networks

The MTP loopback contains an MTP connector with both ends of the fiber terminated within the same connector, creating a looped light path. This configuration enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals to the source, it helps identify various network phenomena and facilitates effective testing and evaluation of individual components or interfaces within fiber optic networks.

Available in various configurations accommodating 8-core, 12-core, and 24-core MTP connectors with multiple fiber configurations to adapt to different test port requirements. The 24F MTP Fiber Loopback Module specifically allows verification and testing of transceivers featuring MTP interface - 100GBASESR10 CXP/CFP devices.

MTP Loopback modules provide a looped signal to test transmit and receiving functions. They are widely used within testing environments, especially in parallel optics 40G and 100G networks. Loopbacks are designed to link Transceiver (TX) and Receiver (RX) positions of MTP transceiver interfaces. These modules facilitate and accelerate IL testing of optical network segments by connecting them to MTP trunks and patch leads.

MTP Singlemode Reference: EIA/TIA-604-5
MTP Singlemode Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)

Compliance Standards:

• Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
• Structured cabling per TIA-568-C
• 10G Fiber Channel Compliant
• 40G and 100G IEEE 802.3

A loopback test involves sending a signal from a communication device and looping it back to the same device to verify proper functionality or troubleshoot defective network nodes. For fiber optic applications, optical loopbacks validate the operational reliability of devices. Using fiber optic loopback cables or modules for data transmission, the signal emitted by the device is looped from the transmit (Tx) port back to the receive (Rx) port of the same component.

Fiber optic loopback testing is commonly employed for checking fiber optic transceivers. Since transceivers have separate ports for receiving and transmitting light signals, testing these ports is essential to ensure continued operation. The loopback test provides the most convenient method for transceiver maintenance. The testing process routes the laser signal from the transmitter port back to the receiver port, then compares the transmitted pattern with the received pattern to verify they are identical and error-free.

• Collocated with 40G or 100G MPO/MTP interface transceivers
• Used for testing transmission capability and receiver sensitivity of fiber optic network equipment

• 7236013 ZCM1111HXA: 8F MPO SM Fiber Optic Loopback Module/Cable
• 7236014 ZCM1121HXA: 12F MPO SM Fiber Optic Loopback Module/Cable
• 7236015 ZCM1141HXA: 24F MPO SM Fiber Optic Loopback Module/Cable
• 7236016 ZCM1116HXA: 8F MPO OM3 Fiber Optic Loopback Module/Cable
• 7236017 ZCM1126HXA: 12F MPO OM3 Fiber Optic Loopback Module/Cable
• 7236018 ZCM1146HXA: 24F MPO OM3 Fiber Optic Loopback Module/Cable
• 7236019 ZCM1117HXA: 8F MPO OM4 Fiber Optic Loopback Module/Cable
• 7236020 ZCM1127HXA: 12F MPO OM4 Fiber Optic Loopback Module/Cable
• 723602: ZCM1147HXA: 24F MPO OM4 Fiber Optic Loopback Module/Cable
• 7236022 ZCM2111HXA: 8F MTP SM Fiber Optic Loopback Module/Cable
• 7236023 ZCM2121HXA: 12F MTP SM Fiber Optic Loopback Module/Cable
• 7236024 ZCM2141HXA: 24F MTP SM Fiber Optic Loopback Module/Cable
• 7236025 ZCM2116HXA: 8F MTP OM3 Fiber Optic Loopback Module/Cable
• 7236026 ZCM2126HXA: 12F MTP OM3 Fiber Optic Loopback Module/Cable
• 7236027 ZCM2146HXA: 24F MTP OM3 Fiber Optic Loopback Module/Cable
• 7236028 ZCM2117HXA: 8F MTP OM4 Fiber Optic Loopback Module/Cable
• 7236029 ZCM2127HXA: 12F MTP OM4 Fiber Optic Loopback Module/Cable
• 7236030 ZCM2147HXA: 24F MTP OM4 Fiber Optic Loopback Module/Cable

These fiber optic cables are packaged in easily handled, well-protected packaging with OMC labeling as default. Standard carton sizes include 34*22*15 cm, 44*34*24 cm, and 54*39*34 cm. The specific carton used depends on the quantity of goods. Custom packaging options are available.

Customization options include:

• Cable color, printing text, cable jacket material
• Connector color options
• OEM labeling, identification rings, cable labels
• Custom boxes and shipping marks
• Different quality levels available
