8 Fibers MTP to LC Fan-out Patch Cable

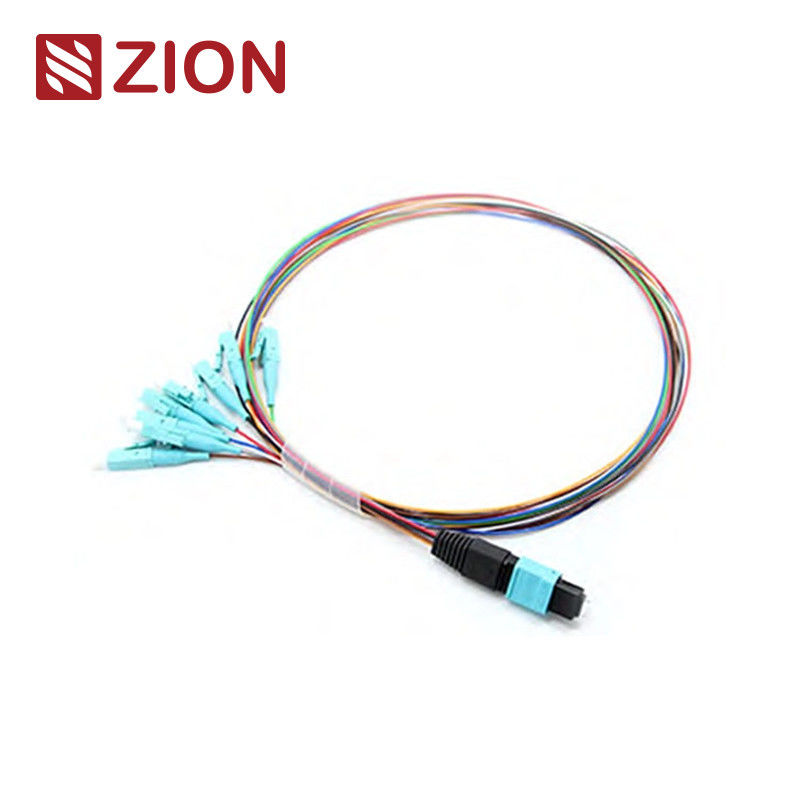

8F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch Cable
Product Identification
Zion Code: ZCM16117X
Zion Description: 8F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable
The MTP connector is a multi-fiber push-on connector type designed for high-density environments. This pre-connection system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment such as 40G, 100G, and QSFP+ modules.
MTP connector types are distinguished according to IEC 61754-7 regulations by core numbers, gender (male/female), and polish type (PC or APC).
This 8-fiber harness cable enables direct connection between QSFP+ to (4) SFP+ ports without requiring patch panels or intermediate trunks. It's specifically engineered for high-density fiber patching in data centers where space optimization and simplified cable management are critical.
Industrial Standards & Specifications
MTP Connector Standards
MTP Singlemode Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)
MTP Multimode Reference: EIA/TIA-604-5
Housing Details: OM1&OM2 PC: Beige connectors+black boot
OM3&OM4 PC: Aqua connectors+black boot
OM3&OM4 PC: Heather Violet connectors+black boot
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Other Connector Standards
- SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973
- LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
- FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
- ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973
- E2000: IEC61754-15
Available Fiber Types
- G657A1 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- G657A2/B2 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- G657B3 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM1 62.5/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM2 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM3 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM4 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
- OM5 50/125 MTP-LC, MTP-SC, MTP-FC, MTP-ST, MTP-E2000
Optical Performance Specifications
Insertion Loss
MTP Singlemode (APC):
Standard loss: ≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
MTP Multimode (PC):
Standard loss: ≤0.6dB(max), ≤0.50(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
LC/SC/FC/ST Singlemode (APC): ≤0.3dB
LC/SC/FC/ST Multimode (PC): ≤0.3dB
Return Loss
MTP Singlemode (APC): ≥60dB
MTP Multimode (PC): ≥25dB
LC/SC/FC/ST: APC≥60dB; UPC≥50dB
Mechanical & Environmental Specifications
- Durability: <0.3dB typical change (200 matings)
- Interchangeability: ≤0.2dB
- Insert-pull Test: 500 times, IL＜0.5dB
- Tensile strength: >70N
- Plug-in times: >600
- Operating Temperature: -40°C to +85°C
Key Features
Low insertion loss, high return loss
MT-based multi-fiber connector (4,8,12,24 fiber)
Economical mass-termination solution
Designed for low loss and standard loss applications
Ruggedized round cable, oval cable and bare ribbon options
Color coded housings for easy identification
Excellent repeatability and exchangeability
Product Advantages
- High Quality - Factory pre-terminated, tested with documentation
- Space Saving - Small diameters reduce cable volume in data centers
Time Efficient - Plug and play design reduces installation time
This high-density cable assembly is used in three primary areas:
- High-density data center environments
- Fiber-to-the-building applications
- Internal connections within fiber optic equipment
Standard carton sizes: 34×22×15 cm; 44×34×24 cm; 54×39×34 cm. Carton selection depends on order quantity. Custom packaging available.
