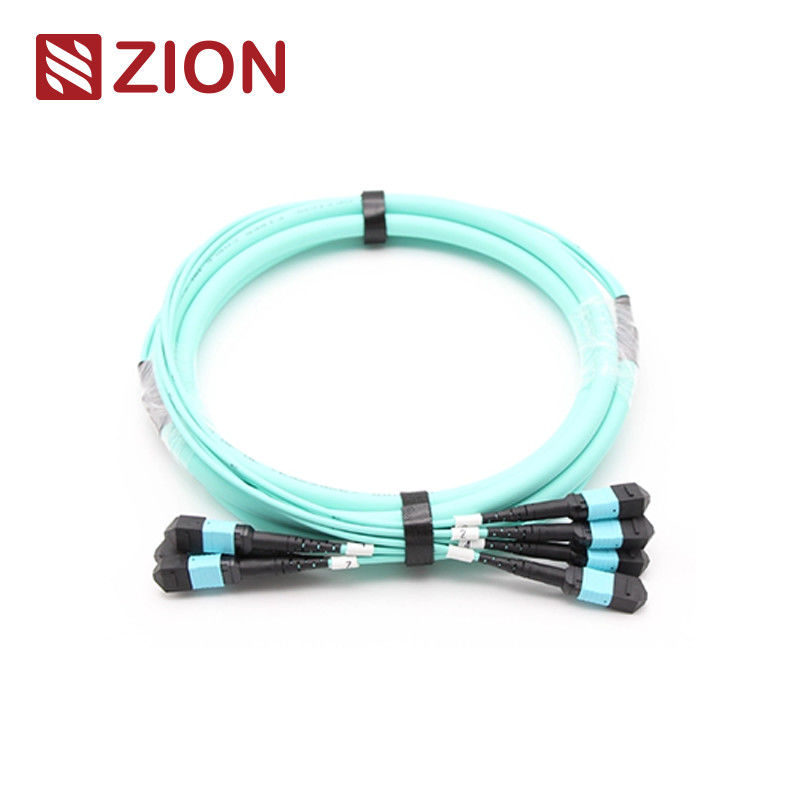

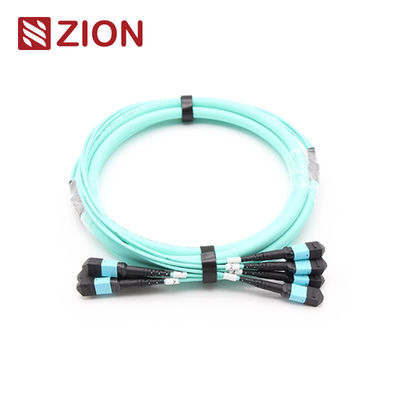

48F(4x12) MTP OM3 Fiber Optic Trunk Cable
High-density 48-fiber MTP OM3 trunk cable designed for data center applications, supporting 10G/40G/100G data transmission.
Zion Code: ZCM22C7HIAX
Zion Description: (4*12)48F MTP OM3 Fiber Optic Trunk Cable
The MTP connector is a multi-fiber push-on connector type designed for high-density environments. This system is primarily used in data centers, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MTP connector types are classified according to EIA/TIA-604-5 regulations based on core numbers, gender (male/female), and polarity (PC or APC).
Product Overview
24F-144F MPO/MTP trunk cables are terminated with MPO/MTP connectors on both ends, connecting MPO/MTP modules as permanent links. Available in 12, 24, 48, 60, 72, 96, and 144 fiber configurations, these cables support speeds up to 10G/40G/100Gbps data center solutions.
Connector Industrial Standards
MTP Singlemode
Reference: EIA/TIA-604-5
Housing Details:
SM APC: Green connectors + black boot (Standard Loss MTP)
SM APC: Yellow connectors + black boot (Super low loss MTP)
MTP Multimode
Reference: EIA/TIA-604-5
Housing Details:
OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MTP)
OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super low loss MTP)
OM3 & OM4 PC: Heather Violet connectors + black boot (Standard loss MTP)
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3 compliant
Optical Specifications
Insertion Loss (MTP) Singlemode (APC 8-degree polished):
Standard loss: ≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (MTP) Multimode (PC Flat polish):
Standard loss: ≤0.6dB(max), ≤0.50(Typical)
Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion loss (LC/SC/FC/ST) Single mode (APC 8-degree polished): ≤0.3dB
Insertion loss (LC/SC/FC/ST) Multimode (PC Flat polish): ≤0.3dB
Return Loss (MTP) Singlemode (APC 8-degree polished): ≥60dB
Return Loss (MTP) Multimode (PC Flat polish): ≥25dB
Return loss (LC/SC/FC/ST): APC≥60dB; UPC≥50dB
Durability: <0.3dB typical change (200 matings)
Interchangeability: ≤0.2dB
Insert-pull Test: 500 times, IL＜0.5dB
Tensile strength: >70N
Plug-in times: >600
Operating Temperature Singlemode (APC): -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector with 4, 8, 12 and 24 fiber terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color coded housings for easy fiber type identification
- Excellent repeatability and exchangeability
Applications
All OMC MTP Connectors are sourced from Senko/Nissin/Sumitomo. MTP Fiber Patch Cables are used in three primary areas:
- High-density data center environments
- Fiber-to-the-building installations
- Internal connections within fiber optic equipment
Product Documentation
Push Pull Tab For Senko MTP
Cable Materials and Construction
Connector and Fiber Channel
Note: Female connectors must connect with male connector types.
MTP-MTP 12F Trunk Cable Drawing
Length Tolerance Specifications
| Overall Length (L) (m) |
Length Tolerance (cm) |
| 0 < L < 1 |
+5/-0 |
| 1 < L < 10 |
+10/-0 |
| 10 < L < 40 |
+15/-0 |
| 40 < L |
+0.5% x L/-0 |
MTP/MPO Polarity Connection Methods
Three connection methods ensure proper MTP/MPO polarity. Since 24F-144F MPO/MTP trunk cable's unit connector is 12F MPO/MTP, it maintains the same polarity as single 12F MPO/MTP trunk cables.
Material Details
Related Products
Zion Communication's Popular MPO/MTP Trunk Cables:
- 7236055 ZCM12C2HIA: (4*12)48F MPO SM Fiber Optic Trunk Cable
- 7236056 ZCM12C7HAA: (4*12)48F MPO OM3 Fiber Optic Trunk Cable
- 7236057 ZCM12C8HMAX: (4*12)48F MPO OM4 Fiber Optic Trunk Cable
- 7236058 ZCM22C2HIA: (4*12)48F MTP SM Fiber Optic Trunk Cable
- 7236059 ZCM22C7HAA: (4*12)48F MTP OM3 Fiber Optic Trunk Cable
- 7236060 ZCM22C8HMA: (4*12)48F MTP OM4 Fiber Optic Trunk Cable
Packaging
Fiber optic cables are packaged in protective cartons with OMC labeling. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on quantity. Custom packaging available.
OEM/ODM Services
Customization options include:
- Cable color, printing, and jacket material
- Connector color customization
- OEM labeling, identification rings, and cable labels
- Custom boxes and shipping marks
- Different quality levels available
