24 Fibers MTP OM4 Fiber Optic Loopback Module Cable for 40/100G Network Testing

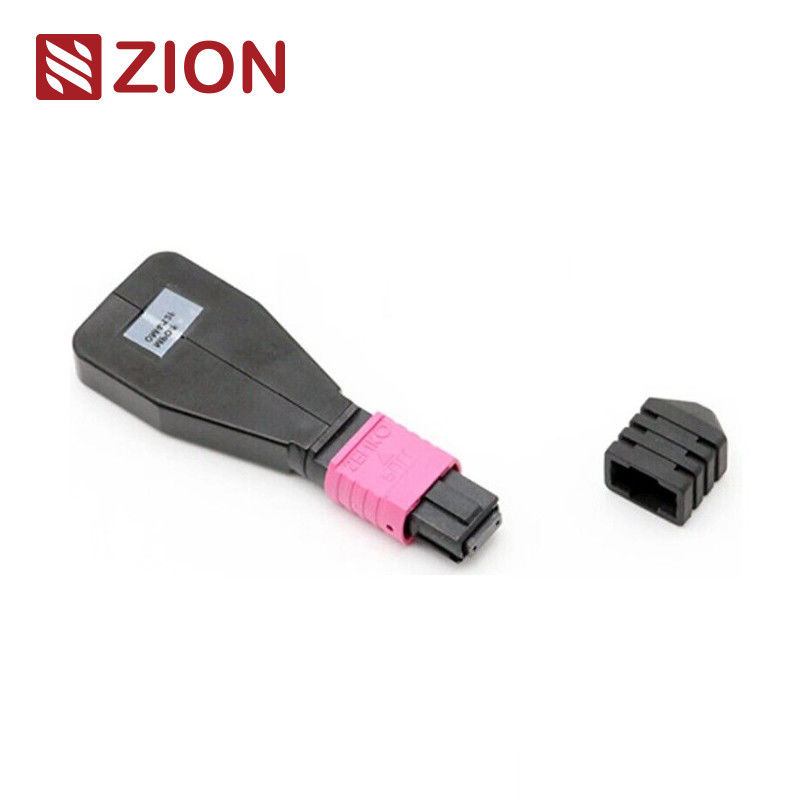

The 24F MTP OM4 Fiber Optic Loopback Module/Cable is designed for testing and verification of high-speed network equipment in 40G and 100G applications.

The MTP loopback contains an MTP connector with both ends of the fiber terminated within the same connector, creating a complete light path loop. This configuration enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals to the source, it helps identify various network phenomena and facilitates effective testing and evaluation of fiber network components and interfaces.

Available in multiple fiber configurations to accommodate different testing requirements:

MTP Loopback modules provide looped signals to test transmit and receive functions. They are widely used in testing environments, especially within parallel optics 40G and 100G networks. Loopbacks connect the transmitter (TX) and receiver (RX) positions of MTP transceiver interfaces, facilitating and speeding up insertion loss (IL) testing of optical network segments when connected to MTP trunks and patch leads.

Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)

Reference: EIA/TIA-604-5
Housing Details: OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP)
OM3&OM4 PC: Aqua connectors+black boot (Standard & Super low loss MTP)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP)

• Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
• Structured cabling per TIA-568-C
• 10G Fiber Channel Compliant
• 40G and 100G IEEE 802.3 compliant

A loopback test sends a signal from a communication device and loops it back to the same device to verify proper functionality or troubleshoot network issues. Fiber optic loopbacks specifically test the operational reliability of optical devices by routing the signal from the transmit (Tx) port back to the receive (Rx) port of the same component.

Fiber optic loopback testing is commonly used for checking fiber optic transceivers. Since transceivers have separate ports for receiving and transmitting light signals, loopback testing provides the most convenient method for transceiver maintenance. The testing process compares transmitted patterns with received patterns to ensure they are identical and error-free.

When selecting a loopback for specific transceivers, consider connector type, polish type, and cable type compatibility.

Complete product line includes:

These fiber optic cables are packaged in well-protected, easily handled packaging labeled and marked by OMC as default. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm, with selection based on quantity. Custom packaging options are available.

Customization options include:

Our comprehensive product line includes various MPO/MTP to LC fan-out patch cables and straight harness cables for optical networking applications.
