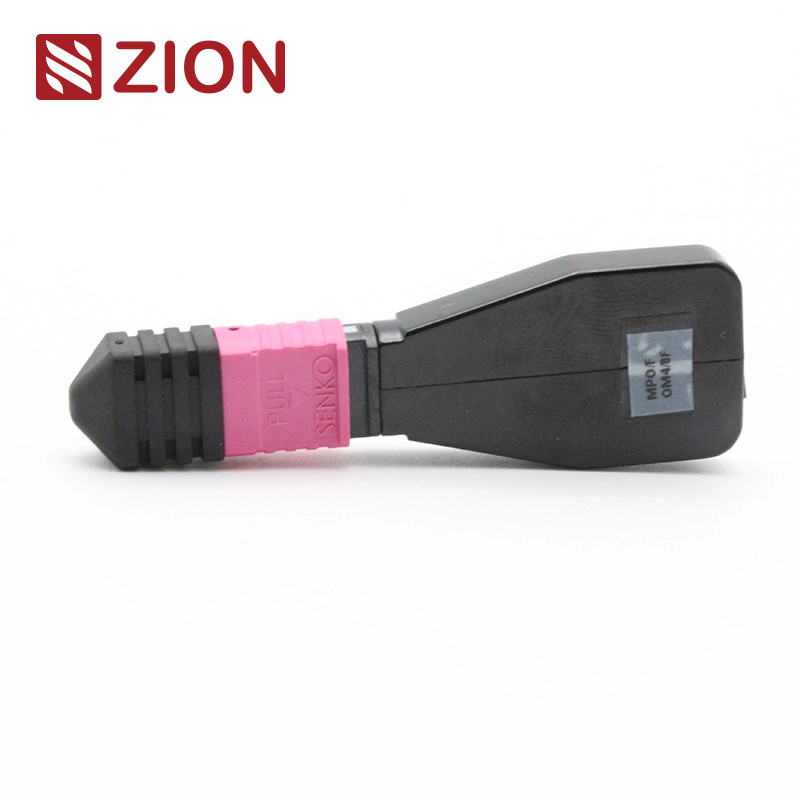

8 Fibers MTP OM4 Fiber Optic Loopback Module for 40/100G Network Testing

The MTP loopback contains an MTP connector that routes both ends of the fiber into the same connector, creating a complete light path loop. This enables testing of device launch capacity and receiving sensitivity, particularly in 40/100G network communications. By returning signals to the source, it helps locate various network phenomena and enables effective testing and evaluation of individual components or interfaces within fiber optic networks.

Available in multiple configurations to accommodate 8-core, 12-core, and 24-core MTP connectors with various fiber configurations to match test port requirements. The 8F MTP Fiber Loopback Module specifically verifies and tests transceivers with MTP interfaces for 40GBASE-SR4/CSR4 QSFP+ devices.

MTP Loopback modules provide looped signals to test both transmit and receive functions. They are widely used in testing environments, especially within parallel optics 40G and 100G networks. These loopbacks connect the Transmit (TX) and Receive (RX) positions of MTP transceiver interfaces and can facilitate insertion loss testing of optical network segments when connected to MTP trunks and patch leads.

MTP Singlemode Reference: EIA/TIA-604-5
MTP Singlemode Housing Details:
• SM APC: Green connectors + black boot (Standard Loss MTP)
• SM APC: Yellow connectors + black boot (Super Low Loss MTP)

MTP Multimode Reference: EIA/TIA-604-5
MTP Multimode Housing Details:
• OM1 & OM2 PC: Beige connectors + black boot (Standard Loss MTP)
• OM3 & OM4 PC: Aqua connectors + black boot (Standard & Super Low Loss MTP)
• OM3 & OM4 PC: Heather Violet connectors + black boot (Standard Loss MTP)

A loopback test sends a signal from a communication device and loops it back to the same device to verify proper functionality or troubleshoot defective network nodes. For fiber optic applications, optical loopbacks verify the operational reliability of devices by routing the signal emitted from the transmit (Tx) end back to the receive (Rx) end of the same component.

Fiber optic loopback testing is commonly used to verify fiber optic transceivers. Since transceivers have separate ports for receiving and transmitting light signals, loopback testing provides the most convenient method for transceiver maintenance. The testing process routes the laser signal from the transmitter port back to the receiver port, then compares transmitted and received patterns to ensure they are identical and error-free.

When selecting a loopback for a transceiver, consider connector type, polish type, and cable type. The following tables provide selection guidance for commonly used transceiver modules.

These fiber optic cables are packaged in easily handled, well-protected packaging labeled and marked by OMC as standard. Available carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on order quantity. Custom packaging options are available.
