| Brand Name: | Zion communication |
|---|---|
| Model Number: | ZC-MP5E88SFS-1 |
| Current Rating,maximum: | 0.75 A | Insulation Resistance,minimum: | 500 MOhm |
|---|---|---|---|
| Safety Voltage Rating: | 150 Vac | Cable Type: | Flat Oval,shielded |
| Interface: | RJ45 | Operating Temperature: | -10℃ To +60℃ |
| High Light: | Flat CAT5E Modular Plug,ZC-MP5E88SFS-1 Optical Networking Products,ZC-MP5E88SFS-1 Modular Plug |
||

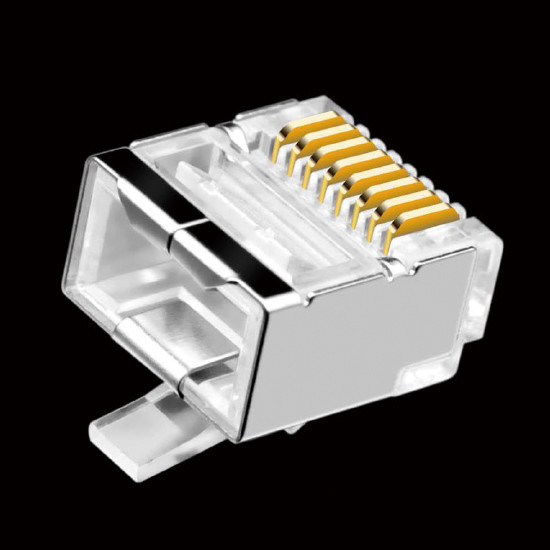

ZC-MP5E88SFS-1(7246215) 8P/8C, CAT5E,Shielded, Flat, Max.2.54 X 8.89 Mm Cable Jack OD, 8-Position, Short Crystal Head
Modular Plug , 8P/8C, CAT5E,shielded, flat, Max.2.54 x 8.89 mm cable jack OD,
8-position, short crystal head,100/bag
| ANSI/TIA Category | 5 | |||||||
| Current Rating,maximum | 0.75 A | |||||||
| Insulation Resistance,minimum | 500 mOhm | |||||||
| Safety Voltage Rating | 150 Vac | |||||||
| Pass fluke test | Compliant | |||||||
| Cable Type | Flat oval,shielded | |||||||
| Interface | RJ45 | |||||||
| Application | ||||||||
| Operating Temperature | -10℃ to +60℃ | |||||||
| Relative Humidity | Up to 93%, non-condensing | |||||||
| Package Quantity | 100 | |||||||
| Packaging Type | Bag | Box | Carton | |||||||
| Positions/loaded Contacts | 8P/8C | |||||||
| Conductor Gauge | Solid/Stranded 26-24 AWG | |||||||
| Contact Base Material | Phosphor bronze | |||||||
| Contact Plating Material | Gold | |||||||
| Contact Plating Thickness | 50μ OR 30μ | 6μ | |||||||
| Material Type | PC = Polycarbonate | |||||||
| Plug Insertion Life,minimum | 750 times | |||||||
| Plug Shield Base Material | Copper Alloy | |||||||
| Plug Shield Plating Material | Nickel | |||||||
| RoHS 2011/65/EU | Compliant | |||||||
