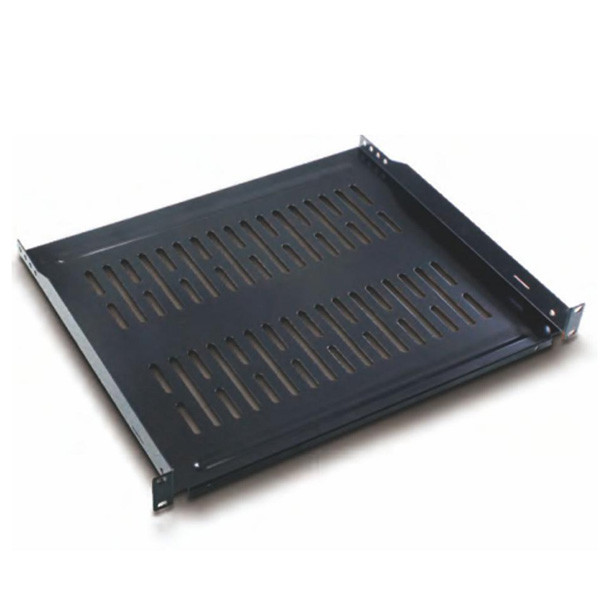

| Brand Name: | Zion communication |
|---|---|
| Material: | SPCC Cold Rolled Steel | 7245502: | 2U-10″ DP |
|---|---|---|---|
| 7245503: | 2U-16″ DP | Brand: | Zion Communication |
| High Light: | SPCC Cantilever Shelf,Cantilever Shelf Without Holes,Zion Communication Cantilever Shelf |
||
· Used for 19 inch network cabinet and rack.
| Model No. | Description | Capacity | |||
| 7245502 | 2U-10″ DP | 22Kg.[48Lb] | |||
| 7245503 | 2U-16″ DP | 22Kg.[48Lb] |
· Used for 19”open rack, 2U height.
| Model No. | Description | Capacity | |||
| 7245504 | 2U-19″ DP | 50Kg.[110Lb] |
· Only for ZION COMMUNICATION cabinet, install from side.
| Model No. | Shelf size MM | Use | ||||
| Width | Depth | |||||
| 7245505 | 485 | 300 | 450MM wall box | |||
| 7245506 | 485 | 450 | 600MM wall box | |||
| 7245507 | 485 | 350 | 600MM cabinet | |||
| 7245508 | 485 | 550 | 800MM cabinet | |||
| 7245509 | 485 | 620 | 900MM wall box | |||
| 7245510 | 485 | 720 | 1000MM wall box | |||
· Used for 19 inch network cabinet and rack.
| Material: | Cable length: | |||
| SPCC cold rolled steel | 72455■■ : RAL7035 /RAL9004 |
|||
· Used for 19 inch network cabinet.
· Keyboard width is no more than 400MM.
· Sliding shelf could elongate to 260MM.
| Model No. | Description | Capacity | ||||
| 7245519 | type 1 | 600~800MM cabinet | ||||
| 7245520 | type 2 | 900~1100MM cabinet | ||||
· Used for 19 inch network cabinet.
· Keyboard allowed maximum size 500X200MM.
· Keyboard and mouse are individually placed for convenient operation.
| Model No. | Use |
| 7245521 | 800~1000MM cabinet |
· Used for 19 inch network cabinet.
| Model No. | Description | Shelf size MM | Use | |
| Width | Depth | |||
| 7245522 | 350 type | 440 | 350 | 600~800MM cabinet |
| 7245523 | 550 type | 440 | 350 | 900~1100MM cabinet |
· For network cabinet, adjust inner temperature
Performance reference.
| Model No. | Description | Input (V) | Axletree Type |
| 7245501 | AC fans | 220V | Oiliness Axletree |
