Home > Products> Cabinet And Rack> 42U Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and Curved Mesh Front Door for Data Centers

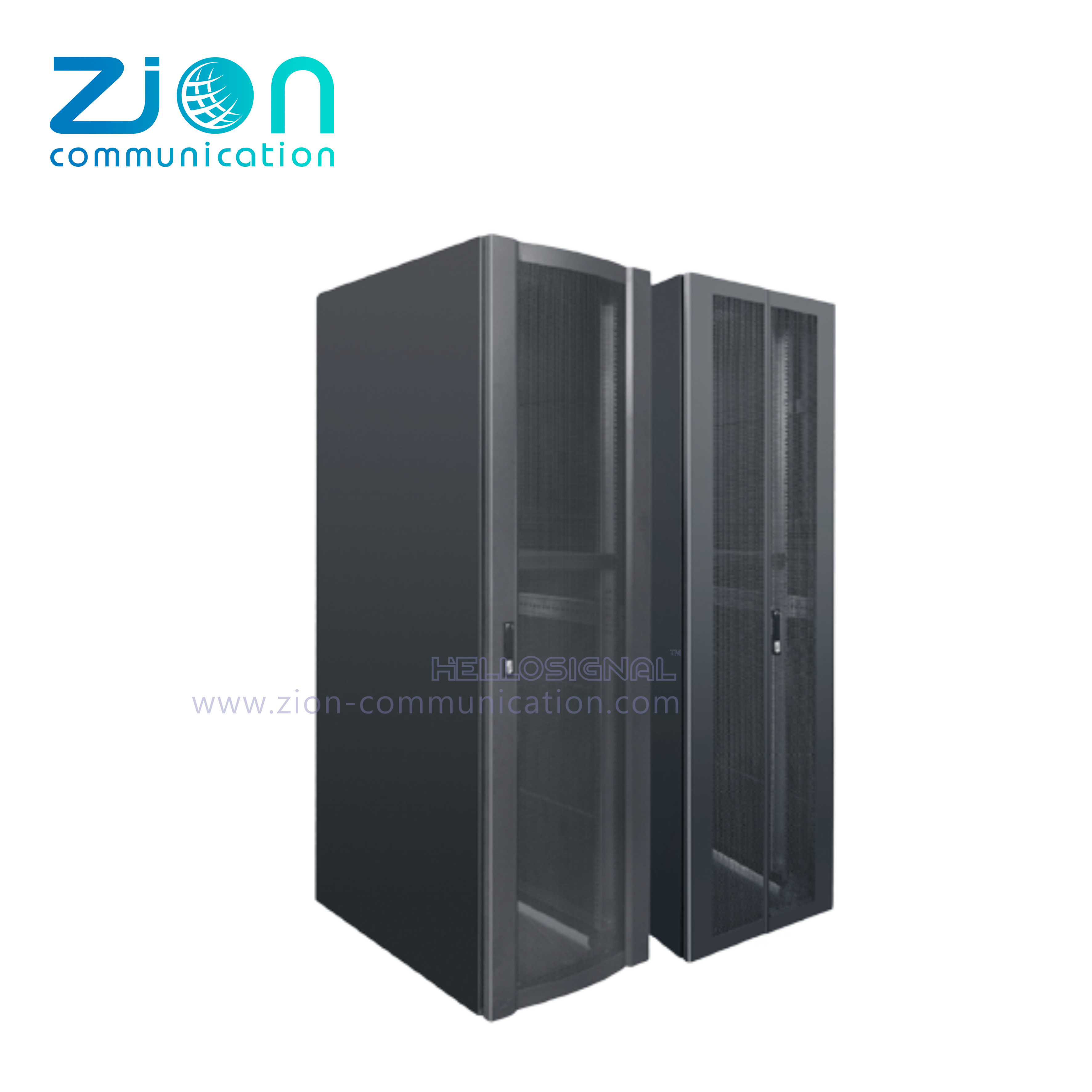

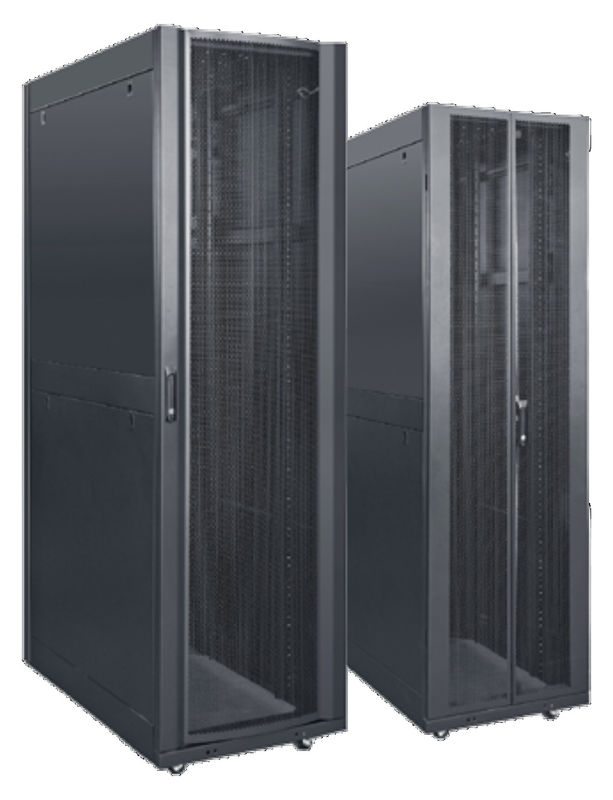

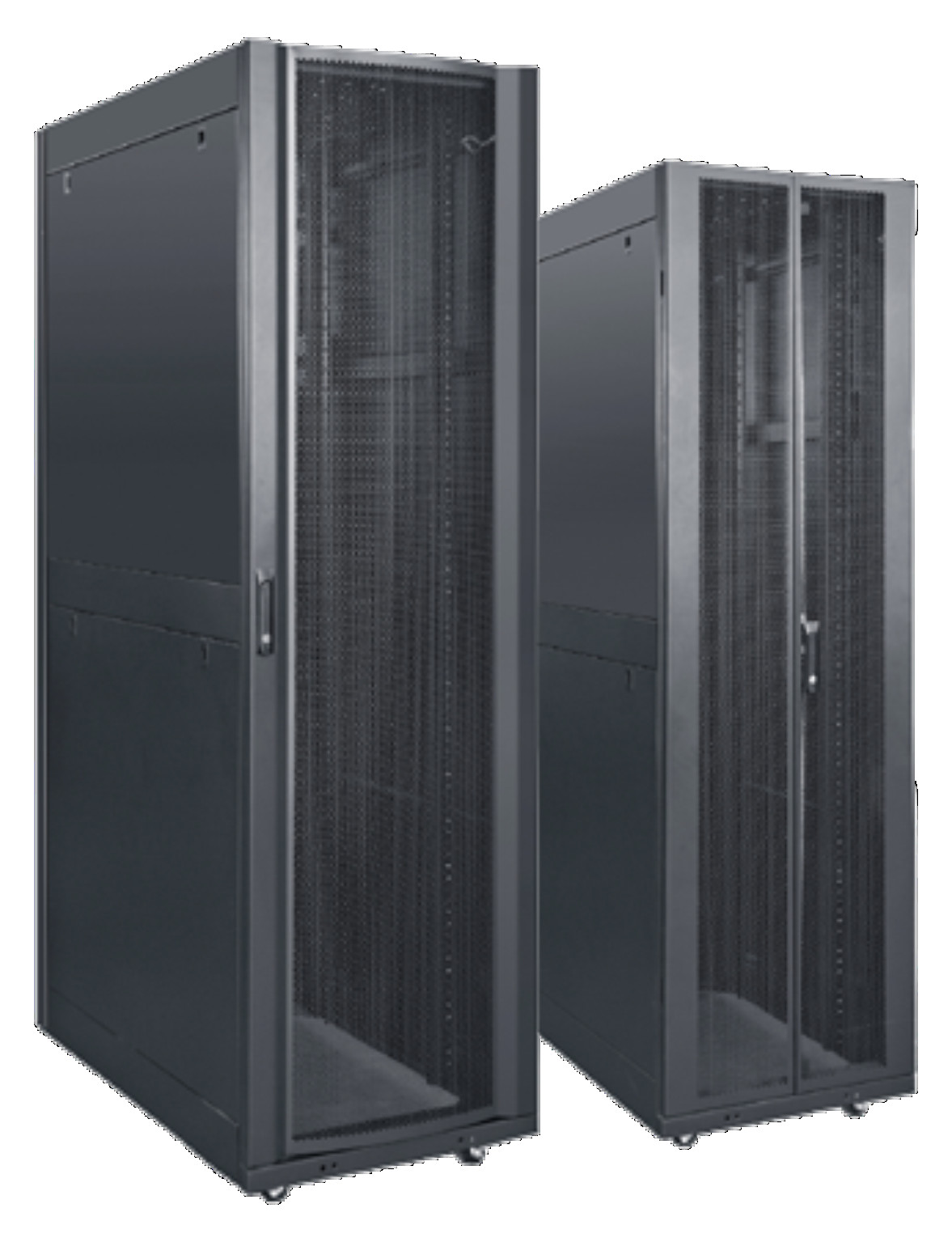

42U Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and Curved Mesh Front Door for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-04	Capacity:	42U
Depth:	770mm, 870mm, 970mm ,1070mm
Highlight:	server rack cabinets , network rack cabinets

Product Description

More detail please visit: Zion Communication Copper System Equipment

ZCIDC-04 Server Cabinet Technical Specifications

Materials: SPCC high quality cold rolled steel

Surface Process: Degreasing; phosphating; spray paint

Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm

Color: RAL9004 (black); others available upon request

Compliance Standards

Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491; PART1; DIN41494; PAR7; GB/T2047.2-92; ETSI

Key Features

Curved mesh front door with folio mesh rear door ensures optimal ventilation and visibility
Movable caster and fixed feet combination supports up to 1200KG load capacity
Top panel features multiple cable holes with vertical pressure plates on both rear sides
Removable doors provide easy access from all directions and angles
Simple assembly design for straightforward system operation
Large ventilation area exceeding 70% of door surface
Available in 42U height with multiple depth options
Flexible packaging solutions for secure storage and delivery

Main Installation Components

Top Cover

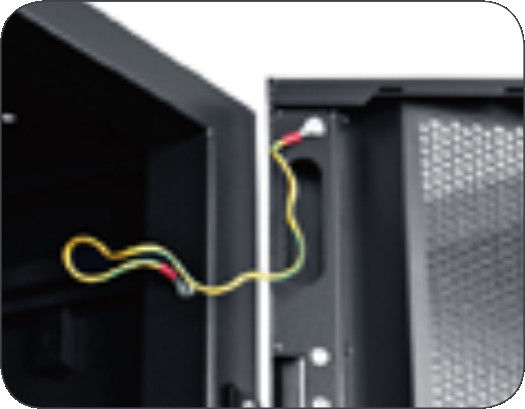

Ground Cable

Cable Management

Main Components Structure

NO.	ITEM	QTY	SPCCT (mm)
1	Frame	2PCS	2.0
2	Mounting angle	6PCS	1.5
3	Mounting profile	4PCS	2.0
4	Cable management slot	2PCS	1.5
5	Top cover	1PCS	1.2
6	Supporting tray	4PCS	2.0
7	Hinge	6PCS	/
8	Caster	4PCS	/
9	Side panel	4PCS	1.2
10	Single-open front door	1PCS	1.2
11	Folio door	1PCS	1.2
