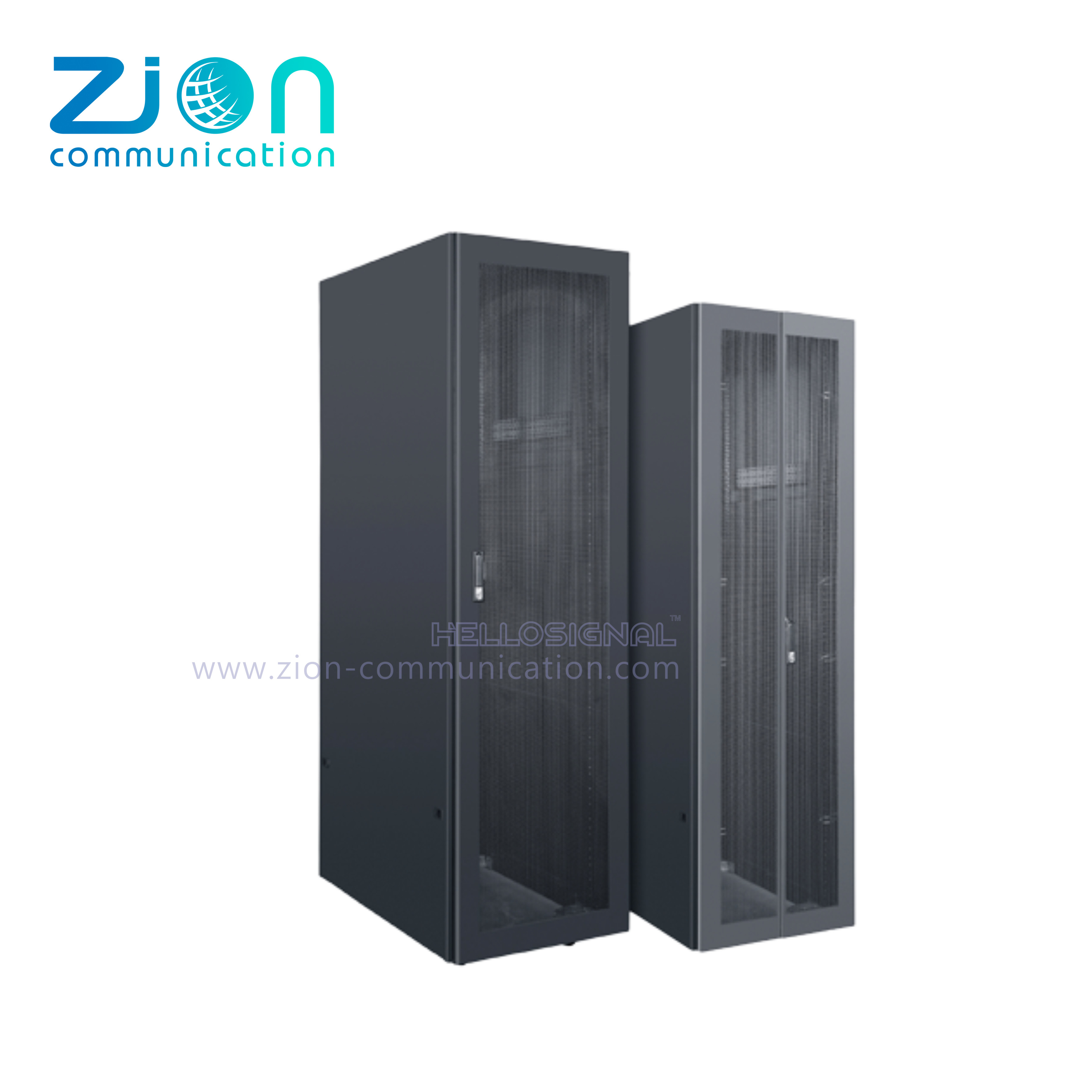

42U/47U Capacity Server Rack Cabinet with 1000 KG Load Capacity and SPCC Cold Rolled Steel Construction

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-04	Capacity:	42U,47U
Depth:	800mm, 900mm, 1000mm ,1100mm And 1200mm
Highlight:	server rack cabinets , network rack cabinets

Product Description

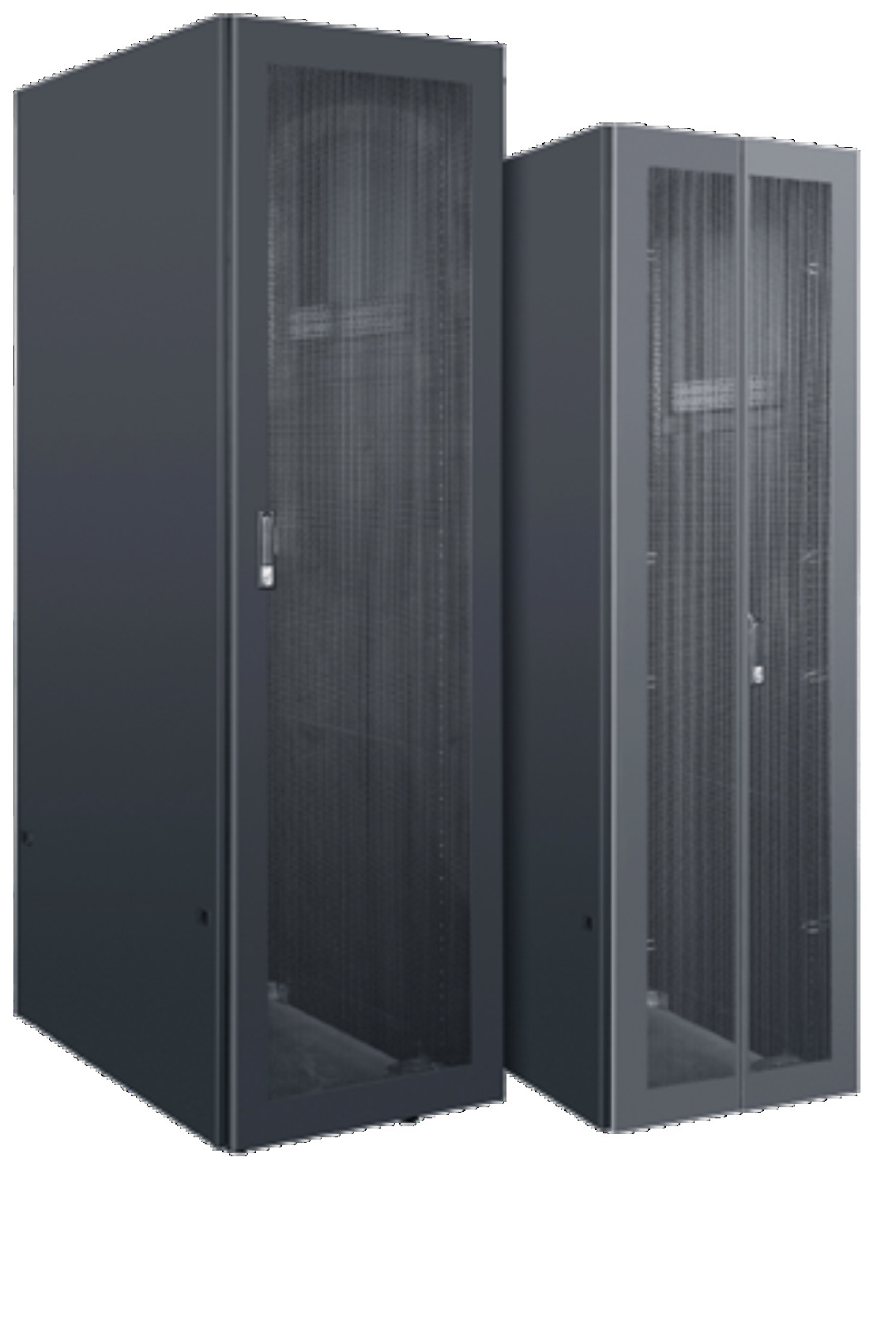

ZCIDC-02 Server Rack Cabinet

Professional 42U/47U server cabinets designed for data center applications with robust construction and flexible configuration options.

More detailed product information available here

Technical Specifications

Materials & Construction

SPCC high-quality cold rolled steel construction
Surface treatment: degreasing, phosphating, spray paint
Thickness: Mounting profile 2.0mm; Other components 1.2-1.5mm
Standard color: RAL9004 (black); custom colors available upon request

Compliance Standards

Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491; PART1; DIN41494; PAR7; GB/T2047.2-92; ETSI

Key Features

Advanced 9-fold profile frame with 3-way technology for enhanced structural strength and 1000 KG load capacity
Mesh front single-door and mesh rear double-door design provides over 65% heat dissipation area
Quick-install side doors for easy maintenance and efficient service access
Combination of movable casters and fixed feet for easy cabinet relocation
Replaceable hinges and rubber-protected top cable holes for flexibility and safety
Available heights: 42U, 47U
Available depths: 800mm, 900mm, 1000mm, 1100mm, 1200mm
Adjustable depth (25mm/unit) and inner height (1U/unit)
Flexible packaging solutions for secure storage and delivery

Main Installation Components

Top cover

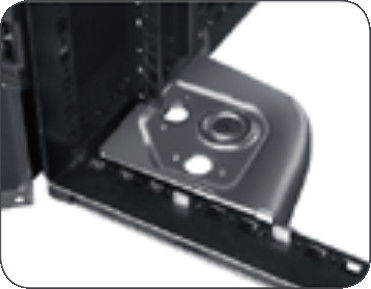

Caster tray

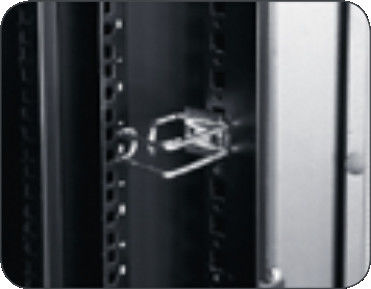

Cable management

Ninefold Steel Structure

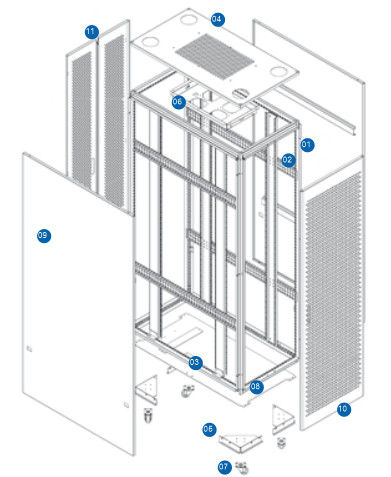

Main Components Breakdown

NO.	ITEM	QTY	SPCCT (mm)
1	Frame	1PCS	1.5
2	Mounting angle	4PCS	1.5
3	Mounting profile	4PCS	2.0
4	Top cover	1PCS	1.2
5	Bottom panel	1PCS	1.5
6	Fan tray	1PCS	1.2
7	Decorative plates	4PCS	2.0
8	Caster	4PCS	/
9	Side panel	2PCS	1.2
10	Front door	1PCS	1.2
11	Rear door	1SET	1.2

Ordering Information

Model	Width (mm)	Depth(D) (mm)	Height (mm)	U
ZCIDC.6842-2 SHSC	600	800	1975	42U
ZCIDC.6942-2 SHSC	600	900	1975	42U
ZCIDC.6042-2 SHSC	600	1000	1975	42U
ZCIDC.6142-2 SHSC	600	1100	1975	42U
ZCIDC.6242-2 SHSC	600	1200	1975	42U
ZCIDC.8842-2 SHSC	800	800	1975	42U
ZCIDC.8942-2 SHSC	800	900	1975	42U
ZCIDC.8042-2 SHSC	800	1000	1975	42U
ZCIDC.8142-2 SHSC	800	1100	1975	42U
ZCIDC.8242-2 SHSC	800	1200	1975	42U
ZCIDC.6847-2 SHSC	600	800	2175	47U
ZCIDC.6947-2 SHSC	600	900	2175	47U
ZCIDC.6047-2 SHSC	600	1000	2175	47U
ZCIDC.6147-2 SHSC	600	1100	2175	47U
ZCIDC.6247-2 SHSC	600	1200	2175	47U
ZCIDC.8847-2 SHSC	800	800	2175	47U
ZCIDC.8947-2 SHSC	800	900	2175	47U
ZCIDC.8047-2 SHSC	800	1000	2175	47U
ZCIDC.8147-2 SHSC	800	1100	2175	47U
ZCIDC.8247-2 SHSC	800	1200	2175	47U
