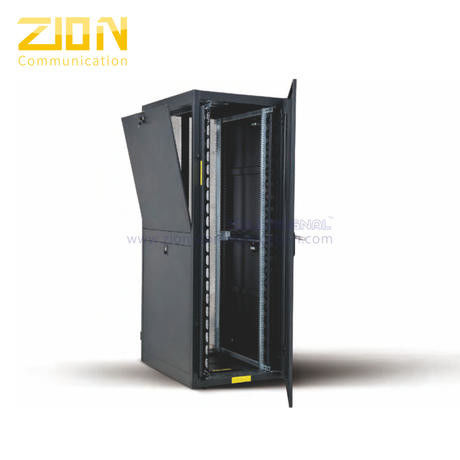

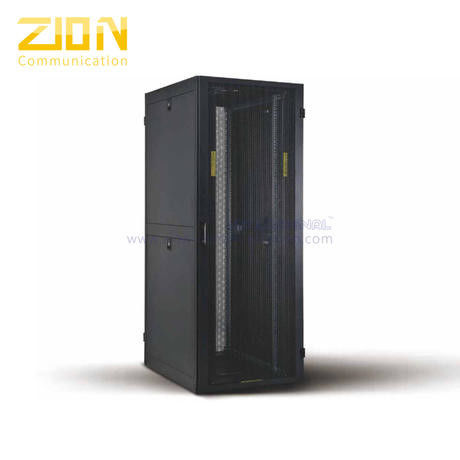

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-04	Capacity:	24/42U
Maximum Loading Capacity:	1300kg
Highlight:	server rack cabinets , network rack cabinets

Product Description

VE Server Rack Cabinets 24/42U - Data Center Accessories

More details available on our Copper System Equipment page

Technical Specifications

Materials

SPCC Cold Rolled Steel construction
19" rails: 2.0mm thickness
Casters tray: 2.0mm thickness
Other components: 1.2mm thickness

Color Options

Available in RAL7035 and RAL7021 color standards

Loading Capacity

Static loading capacity: 1300KG

Compliance Standards

ANSI/EIA RS-310-D compliant
IEC60297-2 compliant
DIN41494 Part 1 and Part 7 compliant

Product Features

Disassembled packaging for reduced transportation and storage costs
Split side doors with square locks for enhanced security
Pluggable front and rear doors with external hinges
Built-in casters installation design
Duplex profile frames with patented connection system using 8 screws
Two-point locking design for tighter closure, 180-degree turning angle
Sliding adjustable cable entries with anti-scratch edge design
Top-mounted fan units for easy installation and maintenance
Quick-adjust mounting rails with dedicated channel alignment
Patented cabinet structure design
Maximum loading capacity: 1300kg

19" mounting angle with scale enables precise profile location

19" zinc coated profile with integrated measurement scale

Multi-function cable manager available in rear panel

Safety warning labels included for user protection

Adjustable cable entry system in bottom panel

Cable manager with cover available for 800mm width cabinets

Ordering Information

Main Components

S/N	Specification	Qty	Material	Surface Finish	Remark
1	Rear door	1	*****	*****	See front & rear door type
2	Side panel	4	SPCC t1.2	Powder coated
3	19" rails	4	T2.0	Zinc-plated
4	Front beam	2	SPCC t1.5	Powder coated
5	Top cover	1	SPCC t1.2	Powder coated
6	Side frame	2	SPCC t1.2	Powder coated
7	Cable management slot	2	SPCC t1.0	Powder coated	Only for 800mm width cabinet
8	Front door	1	*****	*****	See front & rear door type
9	Mounting spacer	4	T2.0	Zinc-plated	Only for 800mm width cabinet
10	Bottom	1	SPCC t1.0	Powder coated
11	Caster tray	2	SPCC t2.0	Powder coated
12	2" heavy duty castor	4	*****	*****	*****
