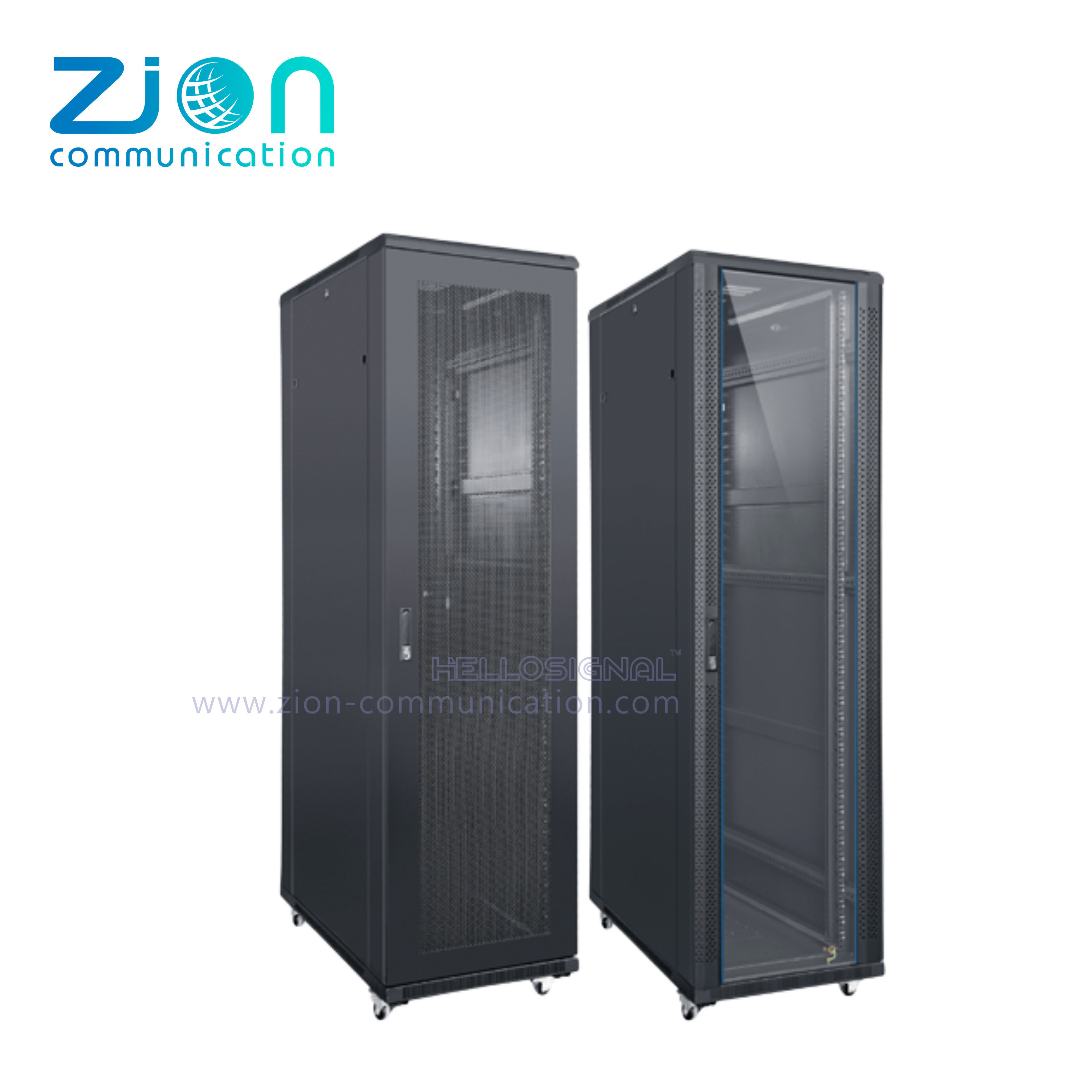

Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-06	Capacity:	18U,22U,27U,32U,37U, 42U,47U
Depth:	800mm, 900mm And 1000mm
Highlight:	server rack cabinets , network rack cabinets

Product Description

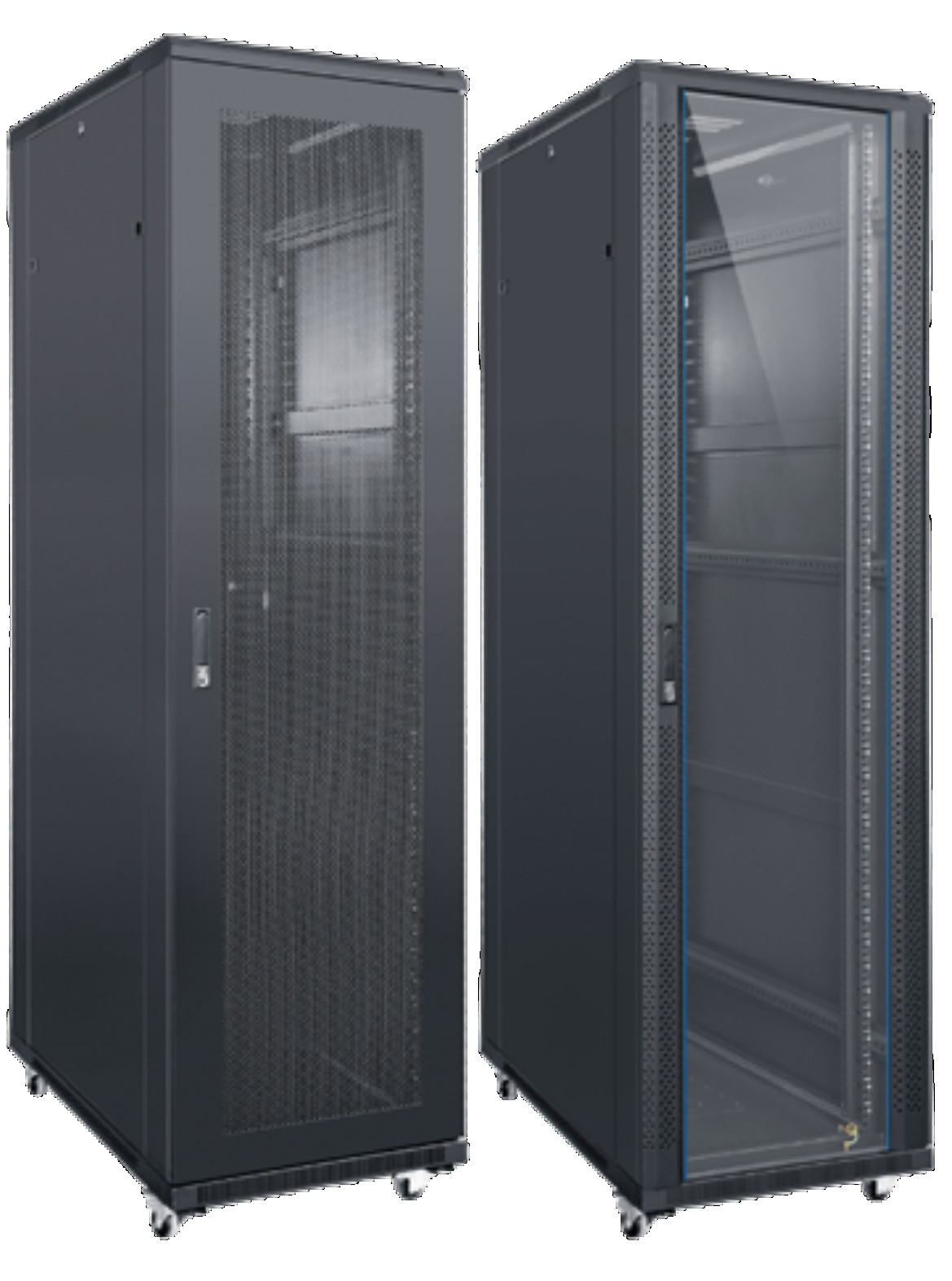

ZCIDC-06 Server Cabinet

More detail please visit: Zion Communication Copper System Equipment

Technical Specifications

Materials:	SPCC high quality cold rolled steel Surface process: degreasing; phosphating; spray paint Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Color:	RAL9004 (black); others available upon request

Standards Compliance

Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T2047.2-92; ETSI

Key Features

Strong structure with static loading capacity: 800KG
Adjustable support with load-bearing casters for easy movement and secure positioning
High-density mesh front door and flat mesh back door with 65% ventilation rate for optimal heat dissipation
180-degree door hinge system for parallel opening and easy access
Flexible cable entry from top or bottom with removable front, rear, and side trays
Comprehensive range of high-quality optional accessories
Available heights: 18U, 22U, 27U, 32U, 37U, 42U, 47U
Available depths: 800mm, 900mm, and 1000mm
Custom packaging solutions for secure storage and delivery

Main Installation Components

Top cover

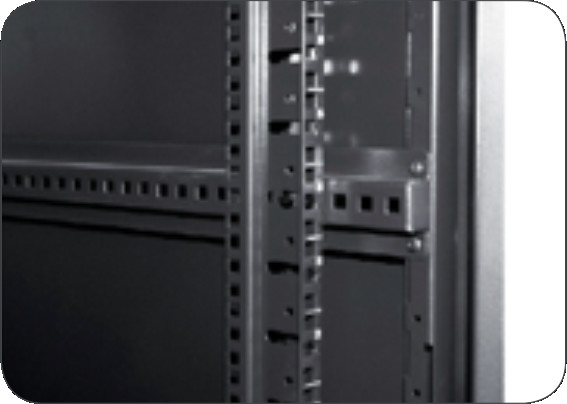

Mounting profile

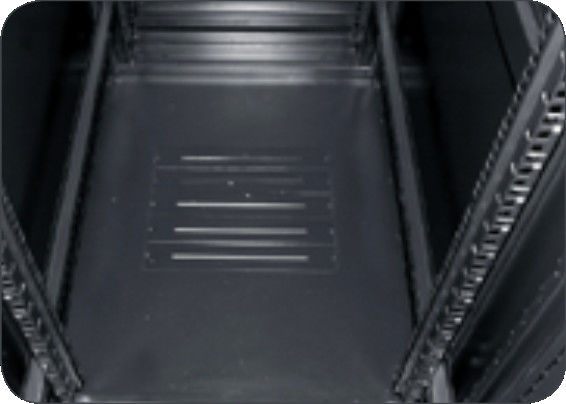

Bottom panel

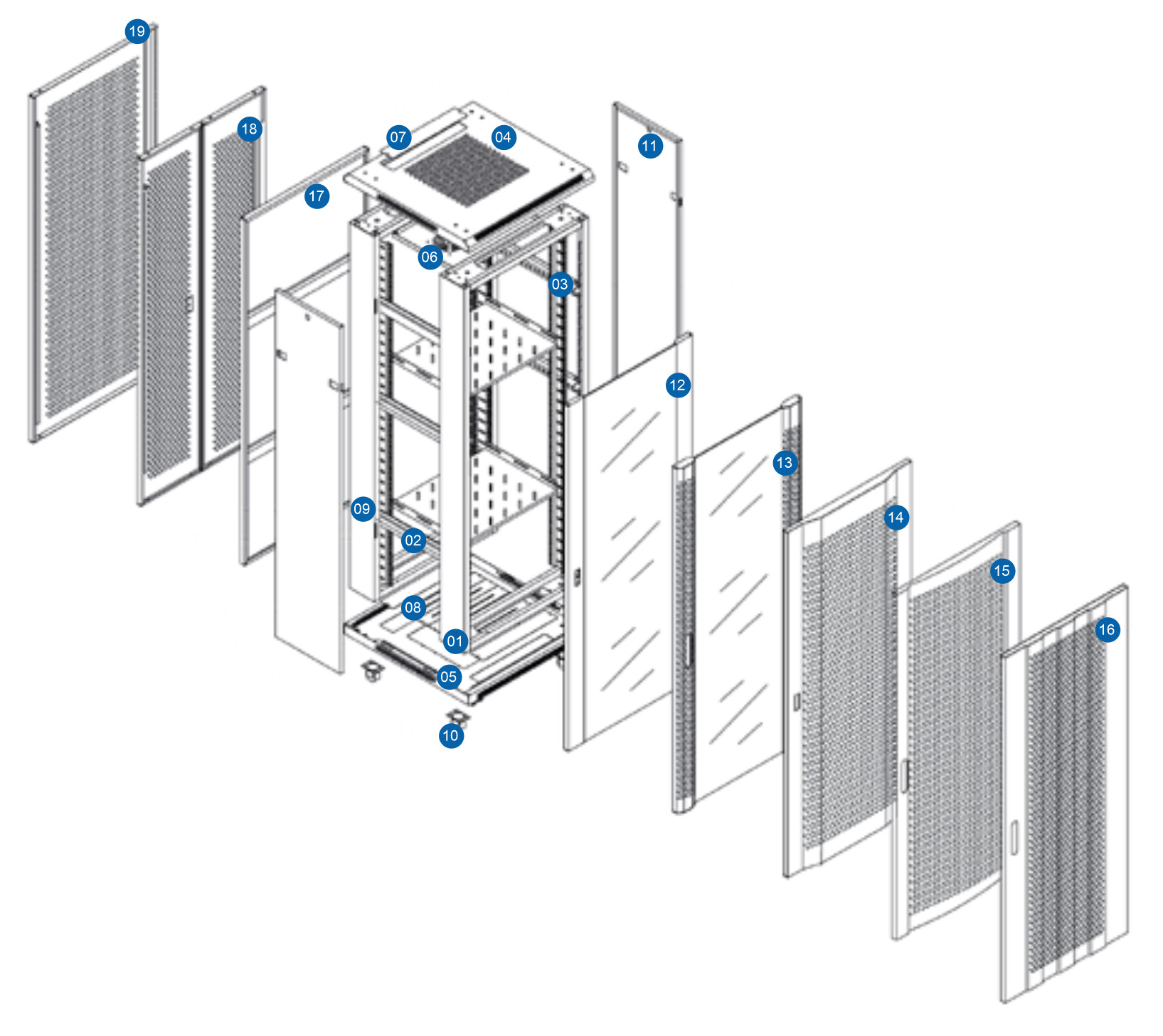

Cabinet Structure Components

NO.	ITEM	QTY	SPCCT (mm)
1	Frame	2PCS	2.0
2	Mounting angle	6PCS	1.5
3	Mounting profile	4PCS	2.0
4	Top cover	1PCS	1.2
5	Fan tray	1PCS	1.2
6	Fan tray cover	1PCS	1.2
7	Cable entrance cover	4PCS	1.2
8	Supporting tray	4PCS	2.0
9	Hinge	6PCS	/
10	Caster	4PCS	/
11	Side panel	4SET	1.2
12	Glass door	1PCS	1.2
13	T-type glass door	1PCS Optional	1.2
14	T-type mesh door	1PCS Optional	/
15	Curved mesh door	1PCS Optional	/
16	Glass mesh door	1PCS Optional	/
17	Steel door	1PCS Optional	/
18	Folio mesh door	1PCS Optional	/
19	Flat mesh door	1PCS Optional	/

Ordering Information

Model	Width (mm)	Depth (mm)	Height (mm)	U
ZCIDC.6818-6 SHSC	600	800	900	18U
ZCIDC.6918-6 SHSC	600	900	900	18U
ZCIDC.6018-6 SHSC	600	1000	900	18U
ZCIDC.6822-6 SHSC	600	800	1080	22U
ZCIDC.6922-6 SHSC	600	900	1080	22U
ZCIDC.6022-6 SHSC	600	1000	1080	22U
ZCIDC.6827-6 SHSC	600	800	1300	27U
ZCIDC.6927-6 SHSC	600	900	1300	27U
ZCIDC.6027-6 SHSC	600	1000	1300	27U
ZCIDC.6832-6 SHSC	600	800	1525	32U
ZCIDC.6932-6 SHSC	600	900	1525	32U
ZCIDC.6032-6 SHSC	600	1000	1525	32U
ZCIDC.6837-6 SHSC	600	800	1745	37U
ZCIDC.6937-6 SHSC	600	900	1745	37U
ZCIDC.6037-6 SHSC	600	1000	1745	37U
ZCIDC.6842-6 SHSC	600	800	1965	42U
ZCIDC.6942-6 SHSC	600	900	1965	42U
ZCIDC.6042-6 SHSC	600	1000	1965	42U
ZCIDC.6847-6 SHSC	600	800	2190	47U
ZCIDC.6947-6 SHSC	600	900	2190	47U
ZCIDC.6047-6 SHSC	600	1000	2190	47U
