42U Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and Curved Mesh Front Door for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-05	Capacity:	42U
Depth:	770mm, 870mm, 970mm ,1070mm
Highlight:	server rack cabinets , network rack cabinets

Product Description

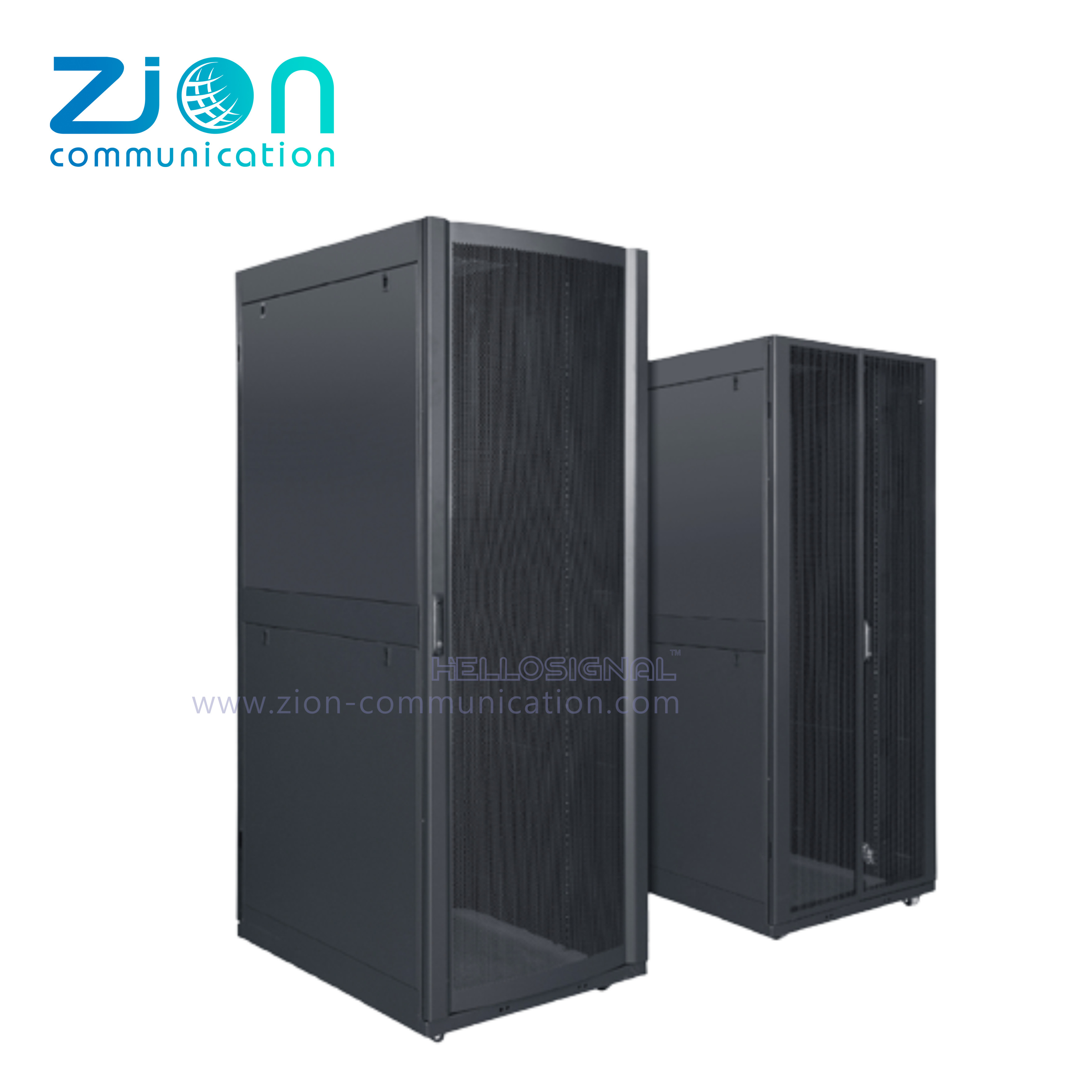

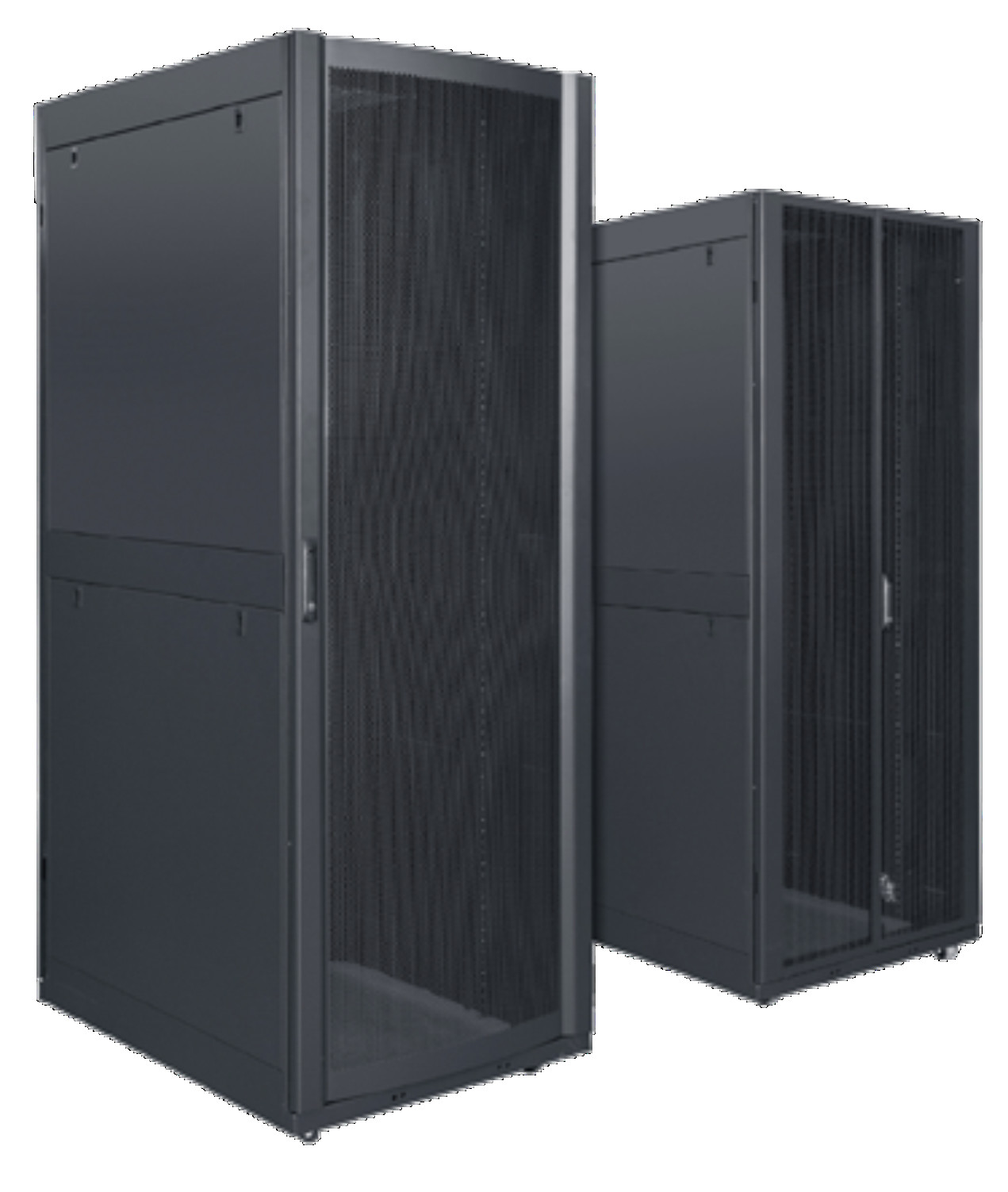

ZCIDC-05 Server Rack Cabinet 42U

Professional data center server cabinet from Zion Communication, designed for optimal equipment organization and ventilation.

View More Details

Technical Specifications

Materials: SPCC high quality cold rolled steel
Surface Process: Degreasing, phosphating, spray paint
Thickness: Mounting profile 2.0mm; Other components 1.2-1.5mm
Color: RAL9004 (standard black); custom colors available upon request

Compliance Standards: ANSI/EIA RS-210-D, IEC297-2, DIN41491 PART1, DIN41494 PAR7, GB/T2047.2-92, ETSI

Key Features

Curved mesh front door with folio mesh rear door ensures optimal ventilation and equipment visibility
Movable casters and fixed feet support loads up to 1200KG
Top panel features multiple cable access holes with integrated cable management
Removable doors provide easy access from all directions
Simple assembly for straightforward system operation
Large ventilation area exceeding 70% of door surface
Standard height: 42U
Available depths: 770mm, 870mm, 970mm, 1070mm
Flexible packaging solutions for secure storage and delivery
Ideal solution for data center applications

Installation Components

Top Cover

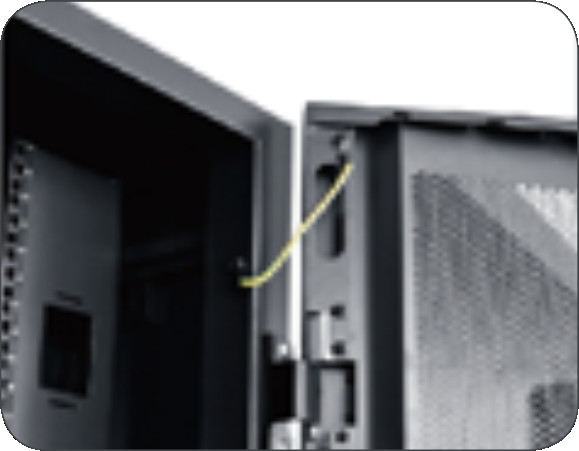

Ground Cable

Cable Management

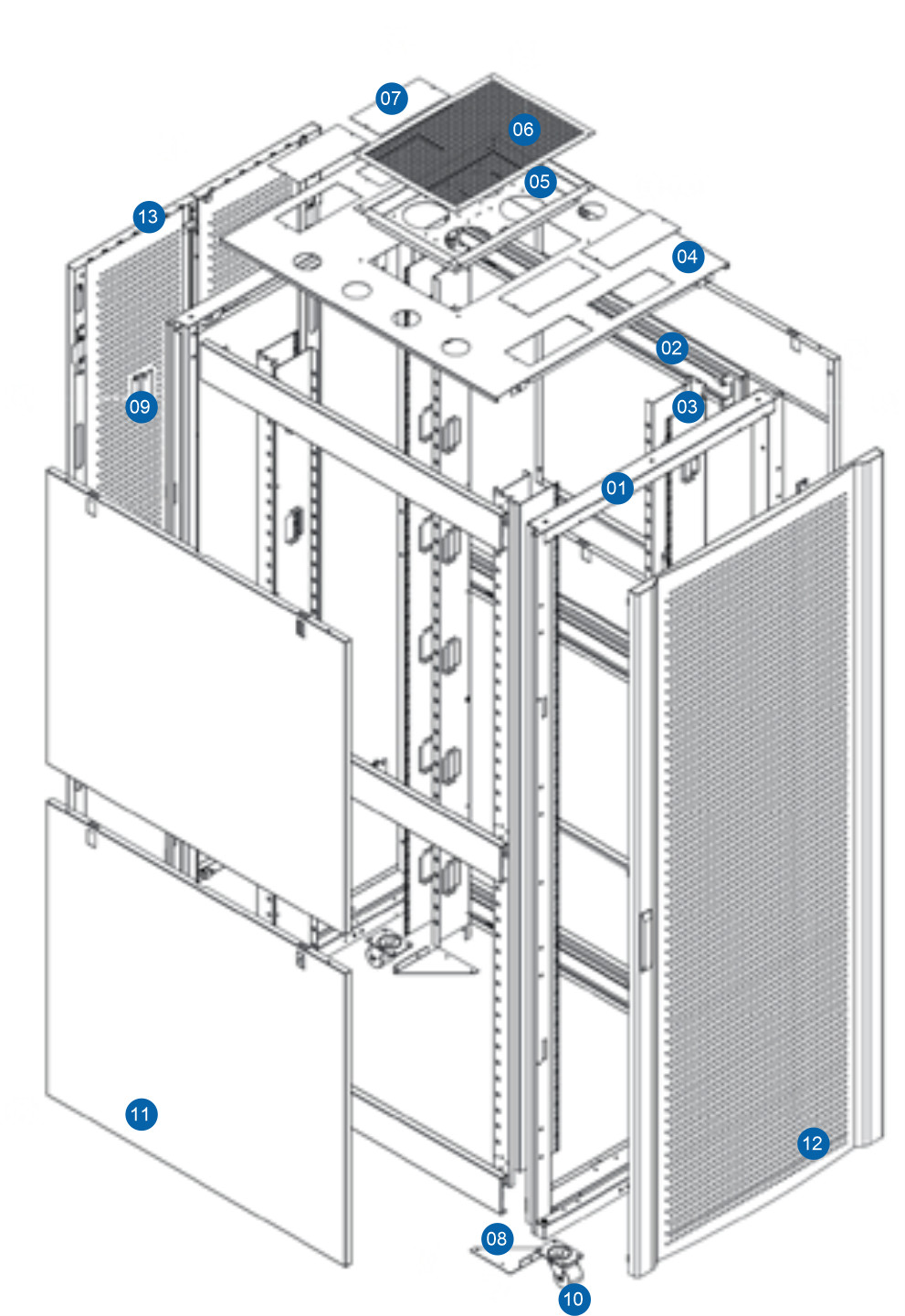

Component Breakdown

Part No.	Component	Quantity	Material Thickness
1	Frame	2 PCS	2.0mm
2	Mounting Angle	6 PCS	1.5mm
3	Mounting Profile	4 PCS	2.0mm
4	Top Cover	1 PCS	1.2mm
5	Fan Tray	1 PCS	1.2mm
6	Fan Tray Cover	1 PCS	1.2mm
7	Cable Entrance Cover	4 PCS	1.2mm
8	Supporting Tray	4 PCS	2.0mm
9	Hinge	6 PCS	/
10	Caster	4 PCS	/
11	Side Panel	4 SET	1.2mm
12	Single-Open Front Door	1 PCS	1.2mm
13	Double Section Rear Door	1 PCS	1.2mm

Ordering Specifications

Model	Width (mm)	Depth (mm)	Height (mm)	U Rating
ZCIDC.8842-5 SHSC	800	770	2000	42U
ZCIDC.8942-5 SHSC	800	870	2000	42U
ZCIDC.8042-5 SHSC	800	970	2000	42U
ZCIDC.8142-5 SHSC	800	1070	2000	42U

Note: Height specifications exclude caster dimensions

Packaging Information

Model	Specification	Door & Frame (m²)	Side Door (m²)	Mounting Profile (m²)	CBM
ZCIDC.6842-3 SHSC	600X770X42U	0.2644	0.0578	0.0634	0.3855
ZCIDC.6942-3 SHSC	600X870X42U	0.2644	0.0663	0.0634	0.3940
ZCIDC.6042-3 SHSC	600X970X42U	0.2644	0.0748	0.0634	0.4025
ZCIDC.6142-3 SHSC	600X1070X42U	0.2644	0.0833	0.0634	0.4110
ZCIDC.8842-5 SHSC	800X770X42U	0.3511	0.0578	0.0634	0.4722
ZCIDC.8942-5 SHSC	800X870X42U	0.3511	0.0663	0.0634	0.4807
ZCIDC.8042-5 SHSC	800X970X42U	0.3511	0.0748	0.0634	0.4892
ZCIDC.8142-5 SHSC	800X1070X42U	0.3511	0.0833	0.0634	0.4977
