8 Way 1U Thickness Schuko PDU Power Strip with Switch and Overload Protection 250V 16A

Basic Information

Brand Name:	Zion communication
Model Number:	1U 8 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

8 Way PDU Power Strip

8 Way Power Strip Schuko

1U PDU Power Strip

Product Description

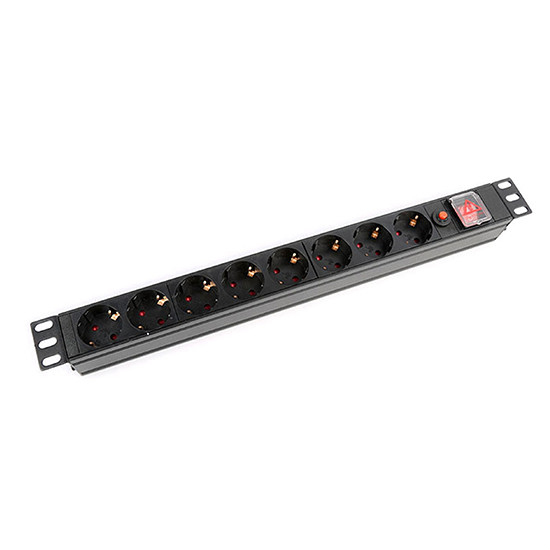

8 Way PDU Power Strip Schuko 1U With Switch And Overload Protection

Professional 1U rack-mounted PDU with 8 German Schuko outlets, integrated power switch, and overload protection. Rated for 250V, 16A operation.

Product Specifications

Zion Code: PDU-7245328 (ZC-1U08-K-G-GER)

Socket Type: 16A German Schuko

Rated Current: 16A

Rated Voltage: 250VAC 50/60Hz

Max Operating Voltage: 320VAC

Unit Thickness: 1U

Output Modules: 8 way

Mounting Size: 19 inch rack

Environment Temperature: -40°C to +70°C

Material: UL94V-0 PC module, Aluminum alloy shell

Fire Resistance: UL 94V-0

Color: Black

Product Overview

Power Switch

Controls power on/off for the entire PDU system, enabling centralized management of connected equipment.

Overload Protection

Thermal kinetic energy overload protector automatically cuts power during current overloads. Reset button allows quick restoration after overload removal.

Modular Design

All functional modules feature modular construction with phosphor bronze components for reliable contact and 5000+ plug cycles.

Cable Options

Available with various cable specifications: 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm².

Custom Branding

ODM/OEM services available with custom logo printing to meet specific branding requirements.

Aluminum Construction

High-quality aluminum alloy shell provides exceptional strength and efficient heat dissipation.

Flexible Installation

Designed for 360° orientation installation with multiple input options: left/right side, front/rear, single/double input configurations.

Applications

Banking, securities, and financial institutions
Universities and educational facilities
Municipal administration offices
Medical care facilities and hospitals
Electric power systems and utilities
Data Centers and server rooms
Enterprise networking infrastructure

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
