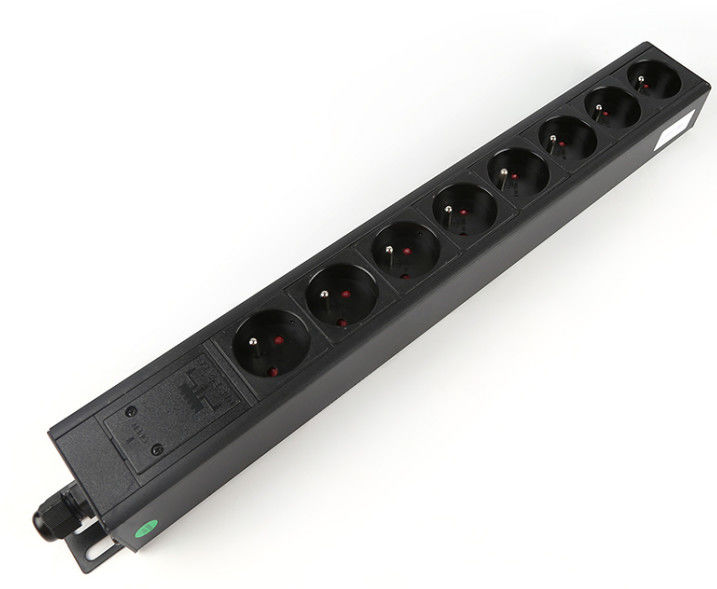

1.5U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 16A France Socket

Basic Information

Brand Name:	Zion communication
Model Number:	1.5U 8 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1.5U Cabinet PDU

Cabinet PDU 250V 16A

19 Inch Cabinet PDU

Product Description

1.5U 8 Way Cabinet PDU 250V, 16A France

Product Overview

Professional 1.5U cabinet power distribution unit designed for French electrical standards, featuring 8 output sockets with 16A capacity.

Applications

Banking, securities, and financial institutions
Universities and educational facilities
Municipal administration buildings
Healthcare and medical facilities
Electric power and utility companies
Data Centers and enterprise networking

PDU Module Overview

Modular Design

All functional modules feature modular construction with socket modules compliant with global standards. Components use phosphor bronze for excellent elasticity, wear-resistance, and corrosion resistance, ensuring reliable contact and 5000+ plug cycles.

Cable Options

Available with various cable specifications: 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², or 32A 3×6mm².

Custom Branding

Custom logo printing available for ODM/OEM requirements.

Durable Construction

High-quality aluminum alloy shell provides superior strength and efficient heat dissipation.

Flexible Installation

Designed for installation in any orientation (360° rotation capability).

Input Options

Multiple input configurations: left/right side, front/rear, single/double side input, and socket input.

Technical Specifications

Socket Type: 16A France

Rated Current: 16A

Rated Voltage: 250VAC 50/60Hz

Unit Thickness: 1.5U

Output Modules: 8 way

Max Operating Voltage: 320VAC

Operating Temperature: -40°C to +70°C

Material: UL94V-0 PC module, Aluminum alloy shell

Fire Rating: UL 94V-0

Color: Black

OEM/ODM: Available

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245326	ZC-1.5U08-FRA	1.5U 8 way Cabinet PDU 250V,16A France
