| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

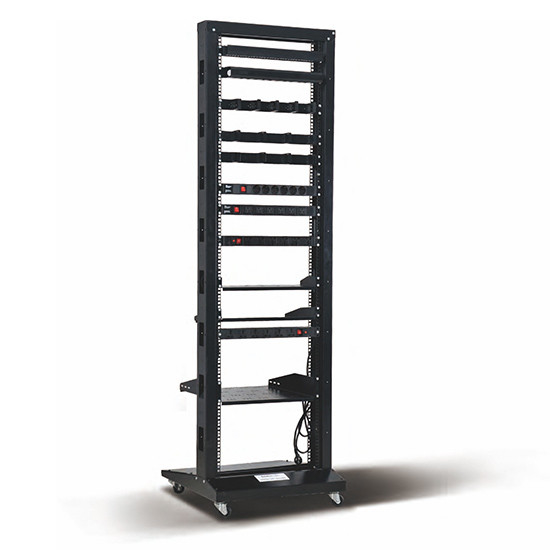

| Model Number: | 606 Open Racks |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Column: | 1.5mm |
|---|---|---|---|
| Static Loading: | 250KG |
| Materials: |
|
||||||||||
| · SPCC Cold Rolled Steel; | · others:2.0mm. | ||||||||||
| · Column: 1.5mm; | |||||||||||
| Colour: | |||||||||||
| · ZC605.■■■■ ■■0■■: RAL7035. · ZC605.■■■■ ■■1■■: RAL9004. |
|||||||||||
| Loading Capacity: | |||||||||||
| · Static loading:250KG. | |||||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Column | 2 | SPCC t1.5 | Powder coated | ····· | |||
| 2 | Plinth | 2 | SPCC t2.0 | Powder coated | ····· | |||
| 3 | Support Cross beam | 2 | SPCC t2.0 | Powder coated | ····· | |||
| 4 | 2″ heavy duty castor | 4 | ····· | |||||
| A | M6 screw & nuts | 20 | Steel | Colour zinc | 40pcs for over 33U | |||
| B | Trox tooling | 1 | Steel | Black | ····· | |||
| Company Number. | Part Number. | RU | Width (mm) |
Depth(D)(mm) | Height(H) (mm) |
Volume (CBM) | ||
| 7245106 | ZC606.6629.00. ■00 | 29 | 600 | 600 | 1422 | 1420*260*140 | ||
| 7245107 | ZC606.6633.00. ■00 | 33 | 600 | 600 | 1600 | 1600*260*140 | ||
| 7245108 | ZC606.6638.00. ■00 | 38 | 600 | 600 | 1822 | 1820*260*140 | ||
| 7245109 | ZC606.6642.00. ■00 | 42 | 600 | 600 | 2000 | 2000*260*140 | ||
| 7245110 | ZC606.6647.00. ■00 | 47 | 600 | 600 | 2222 | 2220*260*140 |
||
