| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

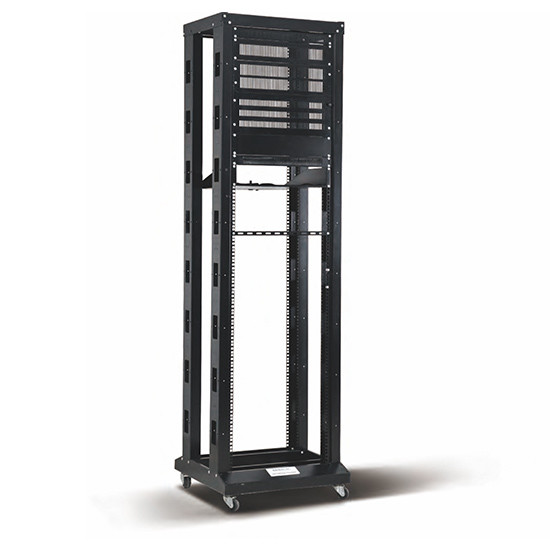

| Model Number: | 605 Data Racks |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Column: | 1.5mm |
|---|---|---|---|
| Others: | 2.0mm | Static Loading: | 250KG |
| Materials: |
|
||||||||||
| · SPCC Cold Rolled Steel; | · others:2.0mm. | ||||||||||
| · Column: 1.5mm; | |||||||||||
| Colour: | |||||||||||
| · ZC605.■■■■ ■■0■■: RAL7035. · ZC605.■■■■ ■■1■■: RAL9004. |
|||||||||||
| Loading Capacity: | |||||||||||
| · Static loading:250KG. | |||||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Column | 4 | SPCC t1.5 | Powder coated | ····· | |||
| 2 | Plinth | 4 | SPCC t1.5 | Powder coated | ····· | |||
| 3 | Support Cross beam | 2 | SPCC t2.0 | Powder coated | ····· | |||
| 4 | 2″ heavy duty castor | 4 | ····· | |||||
| A | M6 screw & nuts | 20 | Steel | Colour zinc | 40pcs for over 33U | |||
| B | Trox tooling | 1 | Steel | Black | ····· | |||
| Company Number. | Part Number. | RU | Width (mm) |
Depth(D)(mm) | Height(H) (mm) |
Volume (CBM) | ||
| 7245101 | ZC605.6629.00. ■00 | 29 | 600 | 600 | 1422 | 1420*260*140 | ||
| 7245102 | ZC605.6633.00. ■00 | 33 | 600 | 600 | 1600 | 1600*260*140 | ||
| 7245103 | ZC605.6638.00. ■00 | 38 | 600 | 600 | 1822 | 1820*260*140 | ||
| 7245104 | ZC605.6642.00. ■00 | 42 | 600 | 600 | 2000 | 2000*260*140 | ||
| 7245105 | ZC605.6647.00. ■00 | 47 | 600 | 600 | 2222 | 2220*260*140 | ||
| The packing information is for the flat pack and we suggest to use this flat pack to get significant cost saving. | ||||||||
