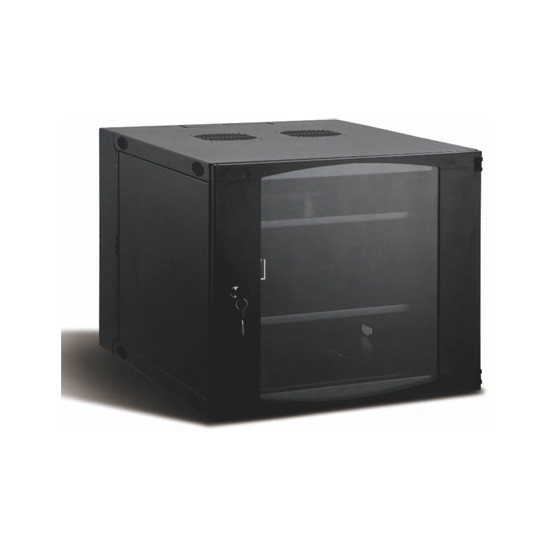

VA Series wall mounted 19 inch 4U 6U 9U 12U 15U 18U indoor ddf network cabinet with lock VA Wall Mount Rack Cabinet

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: VA Wall Mount Rack Cabinet
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Materials: SPCC Cold Rolled Steel Thickness: Mounting Profile: 2.0mm
Others: 1.0mm Static Loading: 30KG

Product Description

Technical Data

Materials:
· SPCC Cold Rolled Steel; · others:1.0mm.
· Thickness: Mounting profile: 2.0mm;
Colour:
· ZCVA.■■■■0■■: RAL7035.
· ZCVA.■■■■1■■: RAL7021.
Loading Capacity:
· Static loading:30KG.
Finish:
· Pretreated steel coated with textured, polyester powder paint

COMPLIANCE (Reference Standard)

· Comply with ANSI/EIA RS-310-D

· IEC60297-2

· DIN41494;PART1; DIN41494;PART7.

Quality advantages of cabinet products

· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;

· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;

· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;

· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.

Feature

VA Series wall mounted 19 inch 4U 6U 9U 12U 15U 18U indoor ddf network cabinet with lock VA Wall Mount Rack Cabinet 0

· Disassembled and small packaging, easy to deliver and carry.

· Special design front and back frames are with good stability.

· 16 screws are needed to assemble the whole enclosure. It will take only 10 minutes to assemble the enclosure by one person.

· Front door is with corrective structure to avoid door dropping.

· Opening direction could be changed easily.

· Cable entries are available on top, bottom and back of enclosure, suitable for different places.

· The patented cable entries are adjustable and with the design to prevent wires from scratching.

· Opening direction of enclosures can be changed quickly. Automatic locking ensures safety and relability.

· Maximum Loading capacity: 30kgs.



May Installs The Fitting

VA Series wall mounted 19 inch 4U 6U 9U 12U 15U 18U indoor ddf network cabinet with lock VA Wall Mount Rack Cabinet 1



Definition Of Cord

VA Series wall mounted 19 inch 4U 6U 9U 12U 15U 18U indoor ddf network cabinet with lock VA Wall Mount Rack Cabinet 2

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Back frame 1 SPCC t1.0 Powder coated ·····
2 Top cover 1 SPCC t1.0 Powder coated ·····
3 Bottom 1 SPCC t1.0 Powder coated ·····
4 Front door 1 4MM toughed glass
door/SPCC t1.0
Powder coated Small lock
5 19″rails frame 2 SPCC t2.0 Powder coated ·····
6 Side panel 2 SPCC t1.0 Powder coated ·····

Order Information:

Company Number Part Number. RU Width
(mm)
Depth(D)
(mm)
Height(H)
(mm)
Volume
(CBM)
40GP
(PCS)
7243351 ZCVA.5406.VADS 6 540 450 327 570*280*440 550*460*350
7243352 ZCVA.5606.VADS 600 570*310*545 550*610*350
7243353 ZCVA.5409.VADS 9 540 450 460 600*265*490 550*460*480
7243354 ZCVA.5609.VADS     600   600*310*530 550*610*480
7243355 ZCVA.5412.VADS 12 540 450 593 600*265*625 550*460*610
7243356 ZCVA.5612.VADS     600   600*290*625 550*610*610
7243357 ZCVA.5415.VADS 15 540 450 725 600*265*760 550*460*750
7243358 ZCVA.5615.VADS     600   600*290*760 550*610*750

Main Structure

VA Series wall mounted 19 inch 4U 6U 9U 12U 15U 18U indoor ddf network cabinet with lock VA Wall Mount Rack Cabinet 3
