| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

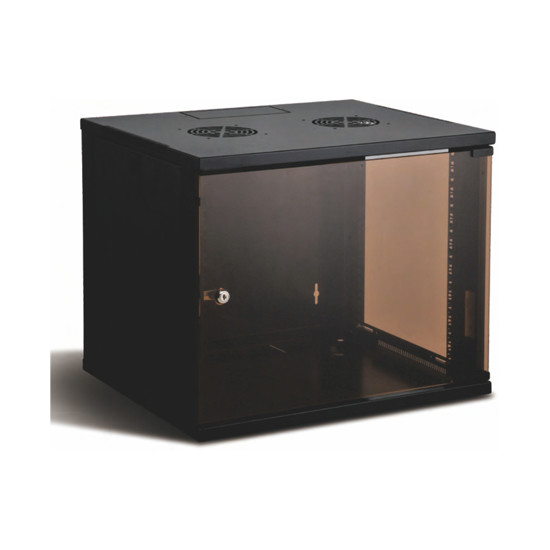

| Model Number: | SQ Wall Mount Rack Cabinet |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Thickness: | 19″ Rails：1.2/1.5mm |
|---|---|---|---|
| Others: | 1.0mm | Static Loading: | 50KG |
| Materials: | |||||
| · SPCC Cold Rolled Steel; | · others:1.0mm. | ||||
| · Thickness: 19″ rails: 1.2/1.5mm | |||||
| Colour: | |||||
| · ZCSQ ■■■■ ■■0■■: RAL7035. · ZCSQ ■■■■ ■■1■■: RAL9004. |
|||||
| Loading Capacity: | |||||
| · Static loading:50KG. | |||||
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;
· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;
· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;
· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Frame | 1 | SPCC t1.0 | Powder coated | ····· | |||
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 3 | Front door | 1 | 5MM toughed glass door/SPCC t1.2 |
····· | ····· | |||
| 4 | 19″ rails | 4 | SPCC t1.2/1.5 | Powder coated | <15U Thinkness : 1.2mm >= 15U Thinkness:1.5mm |
|||
| A | M6 screw&nuts | 10 | Steel | Color zinc | 20pcs for over 12U | |||
| B | Trox tooling | 1 | Steel | Black | ····· | |||
| Company Number | Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H) (mm) |
40GP (PCS) |
||
| 7243341 | ZCSQ.5406.SQSS | 6 | 540 | 450 | 315 | 560*470*330 | ||
| 7243342 | ZCSQ.5606.SQSS | 600 | 560*620*330 | |||||
| 7243343 | ZCSQ.5409.SQSS | 9 | 540 | 450 | 450 | 560*470*470 | ||
| 7243344 | ZCSQ.5609.SQSS | 600 | 560*620*470 | |||||
| 7243345 | ZCSQ.5412.SQSS | 12 | 540 | 450 | 580 | 560*470*600 | ||
| 7243346 | ZCSQ.5612.SQSS | 600 | 560*620*600 | |||||
| 7243347 | ZCSQ.5415.SQSS | 15 | 540 | 450 | 715 | 560*470*730 | ||
| 7243348 | ZCSQ.5615.SQSS | 600 | 560*620*730 | |||||
| 7243349 | ZCSQ.5420.SQSS | 20 | 540 | 450 | 935 | 560*470*950 | ||
| 7243350 | ZCSQ.5425.SQSS | 25 | 600 | 1160 | 560*470*1180 |
|||
