| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

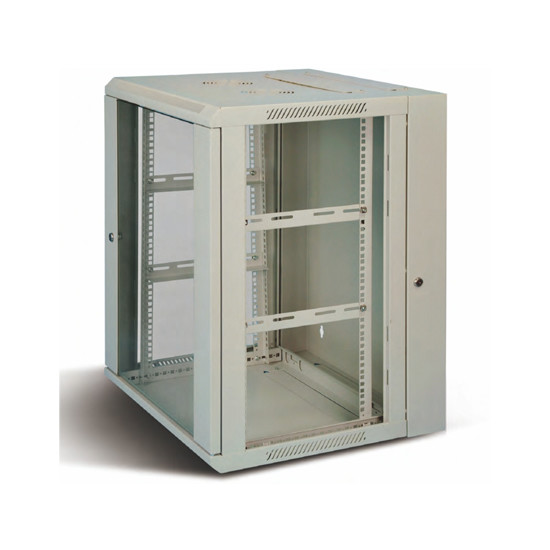

| Model Number: | SB Wall Mount Rack Cabinet |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Thickness: | 19″ Rails：1.2/1.5mm |
|---|---|---|---|
| Others: | 1.2mm | Static Loading: | 30KG |
Technical Data| Materials: | |
|||||
| · SPCC Cold Rolled Steel; | · Side panel: 1.0mm. | |||||
| · Thickness: 19″ rails:1.2/1.5mm | · others:1.2mm. | |||||
| Colour: | ||||||
| · ZCSB ■■■■0■■: RAL7035. · ZCSB ■■■■1■■: RAL9004. |
||||||
| Loading Capacity: | ||||||
| · Static loading:30KG. | ||||||
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;
· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;
· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;
· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Front door | 1 | 5MM toughed glass door/SPCC t1.2 |
Powder coated | ····· | |||
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 3 | Front frame | 1 | SPCC t1.2 | Powder coated | ····· | |||
| 4 | Back panel | 1 | SPCC t1.2 | Powder coated | ||||
| 5 | 19″rails | 4 | SPCC t1.2/1.5 | Powder coated | <15U Thinkness : 1.2mm >=15U Thinkness:1.5mm |
|||
| A | M6 screw&nuts | 10 | Steel | Color zinc | ····· | |||
| B | Trox tooling | 1 | Steel | Black | 20pcs for over 12U | |||
| Company Number | Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H) (mm) |
Packing dimension(mm) | ||
| 7243335 | ZCSB.6506.SBDS | 6 | 600 | 550 | 370 | 620*570*390 | ||
| 7243336 | ZCSB.6509.SBDS | 9 | 600 | 550 | 500 | 620*570*520 | ||
| 7243337 | ZCSB.6512.SBDS | 12 | 600 | 550 | 635 | 620*570*650 | ||
| 7243338 | ZCSB.6515.SBDS | 15 | 600 | 550 | 770 | 620*570*790 | ||
| 7243339 | ZCSB.6518.SBDS | 18 | 600 | 550 | 900 | 620*570*920 | ||
| 7243340 | ZCSB.6522.SBDS | 22 | 600 | 550 | 1080 | 620*570*1100 | ||
