| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

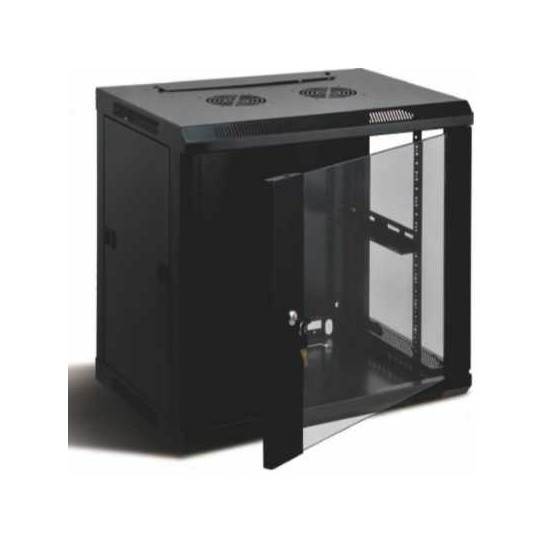

| Model Number: | SA Wall Mount Rack Cabinet |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Thickness: | 19″ Rails：1.2/1.5mm |
|---|---|---|---|
| Others: | 1.2mm | Static Loading: | 60KG |
| Materials: | |
|||||||
| · SPCC Cold Rolled Steel; | · others:1.2mm. | |||||||
| · Thickness: 19″ rails:1.2/1.5mm | ||||||||
| Colour: | ||||||||
| · ZCSA.■■■■0■■: RAL7035. · ZCSA.■■■■1■■: RAL9004. |
||||||||
| Loading Capacity: | ||||||||
| · Static loading:60KG. | ||||||||
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;
· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;
· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;
· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Front door | 1 | 5MM toughed glass door/SPCC t1.2 |
Powder coated | ····· | |||
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 3 | Frame | 1 | SPCC t1.2 | Powder coated | ····· | |||
| 4 | Mounting profile | 1 | SPCC t1.2 | Powder coated | ····· | |||
| 5 | Back panel | 1 | SPCC t1.0 | Powder coated | ····· | |||
| 6 | 19″rails | 4 | SPCC t1.2/1.5 | Powder coated | <15U Thinkness : 1.2mm >=15U Thinkness:1.5mm |
|||
| A | M6 screw&nuts | 10 | Steel | Color zinc | 20pcs for over 12U | |||
| B | Trox tooling | 1 | Steel | Black | ····· | |||
| Company Number | Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H) (mm) |
Packing dimension(mm) | |||
| 7243323 | ZCSA.6406.SASS | 6 | 600 | 450 | 370 | 620*470*390 | |||
| 7243324 | ZCSA.6606.SASS | 600 | 620*620*390 | ||||||
| 7243325 | ZCSA.6409.SASS | 9 | 600 | 450 | 500 | 620*470*520 | |||
| 7243326 | ZCSA.6609.SASS | 600 | 620*620*520 | ||||||
| 7243327 | ZCSA.6412.SASS | 12 | 600 | 450 | 635 | 620*470*650 | |||
| 7243328 | ZCSA.6612.SASS | 600 | 620*620*650 | ||||||
| 7243329 | ZCSA.6415.SASS | 15 | 600 | 450 | 770 | 620*470*790 | |||
| 7243330 | ZCSA.6615.SASS | 600 | 620*620*790 | ||||||
| 7243331 | ZCSA.6418.SASS | 18 | 600 | 450 | 900 | 620*470*920 | |||
| 7243332 | ZCSA.6618.SASS | 600 | 620*620*920 | ||||||
| 7243333 | ZCSA.6422.SASS | 22 | 600 | 450 | 1080 | 620*470*1100 | |||
| 7243334 | ZCSA.6622.SASS | 600 | 620*620*1100 |
||||||
