| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

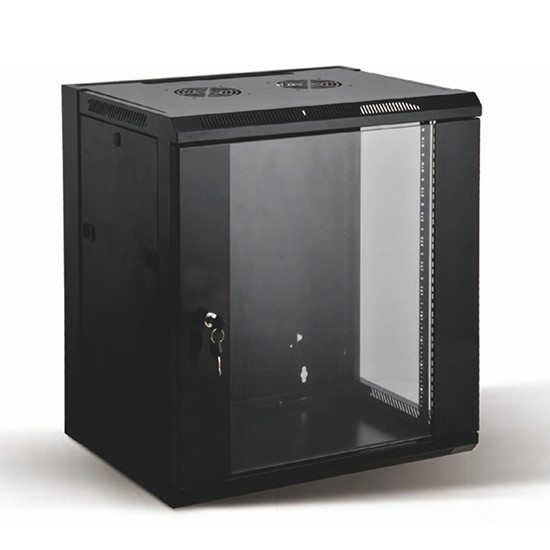

| Model Number: | SE Wall Mount Rack Cabinet |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | Thickness: | 1.2/1 .5mm |
|---|---|---|---|
| Others: | 1.2mm | Static Loading: | 60KG |
| Materials: | |||||
| · SPCC Cold Rolled Steel; | · others:1.2mm. | ||||
| · Thickness: Mounting profile: 1.2/1 .5mm; | |||||
| Colour: | |||||
| · ZCSE.■■■■.■■.0■■: RAL7035. · ZCSE.■■■■.■■.1■■: RAL9004. |
|||||
| Loading Capacity: | |||||
| · Static loading:60KG. | |||||
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
· Flat packing and patent frame, packing time is less than 5 minutes, around 1/3~ 1/4 assembled original volume when flat pack.
· Cable entry on both of top cover and bottom panel.
· Steel front door, opening direction of door can be changed, turning angle of front door is over 180 degrees.
· Different optional style of doors
· Wall mounted panel, convenience for installation, locked from inside with screw, avoiding to be stolen or accidentally dropped.
· Flat side panel, easy installation.
· Installation depth of mounting profile can be available changed.
· 19″standard installation.
| S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
| 1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 2 | Side frame | 2 | SPCC t1.0 | Powder coated | ····· | ||||
| 3 | Top cover | 1 | SPCC t2.0 | Powder coated | ····· | ||||
| 4 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
| 5 | Front frame | 1 | SPCC t1.0 | Powder coated | See next page | ||||
| 6 | Front door | 1 | 5MM toughed glass door/SPCC t1.2 |
Powder coated | Available on request | ||||
| 7 | Side panel | 2 | ····· | Powder coated | ····· | ||||
| 8 | 19″rails | 2 | SPCC t1.0 | Powder coated | <15U Thinkness : 1.2mm >= 15U Thinkness:1.5mm |
||||
| A | M6 screw & nuts | 10 | Steel | Color zinc | 20pcs for over 12U | ||||
| B | Trox tooling | 1 | Steel | Black | ····· | ||||
| Company Number | Part Number. | RU | Width (mm) |
Depth(D) (mm) |
Height(H) (mm) |
Volume (CBM) |
20GP (PCS) |
40GP (PCS) |
CKD packing part |
| 7243301 | ZCSE.5406.SESC | 6 | 570 | 450 | 370 | 0.04317 | 672 | 672 | 1 |
| 7243302 | ZCSE.5606.SESC | 600 | 0.05353 | 542 | 542 | 2 | |||
| 7243303 | ZCSE.5409.SESC | 9 | 570 | 450 | 500 | 0.05117 | 567 | 567 | 1 |
| 7243304 | ZCSE.5609.SESC | 600 | 0.05757 | 504 | 504 | 1 | |||
| 7243305 | ZCSE.5412.SESC | 12 | 570 | 450 | 635 | 0.06397 | 453 | 453 | 1 |
| 7243306 | ZCSE.5612.SESC | 600 | 0.06397 | 453 | 453 | 1 | |||
| 7243307 | ZCSE.5415.SESC | 15 | 570 | 450 | 770 | 0.0768 | 378 | 378 | 1 |
| 7243308 | ZCSE.5615.SESC | 600 | 0.0768 | 378 | 378 | 1 | |||
| 7243309 | ZCSE.5418.SESC | 18 | 570 | 450 | 900 | 0.0896 | 324 | 324 | 1 |
| 7243310 | ZCSE.5618.SESC | 600 | 0.0896 | 324 | 324 | 1 | |||
| 7243311 | ZCSE.5422.SESC | 22 | 570 | 450 | 1080 | 0.1067 | 272 | 272 | 1 |
| 7243312 | ZCSE.5622.SESC | 600 | 0.1067 | 272 | 272 | 1 | |||
| 7243313 | ZCSE.5427.SESC | 27 | 570 | 450 | 1305 | 0.128 | 227 | 227 | 1 |
| 7243314 | ZCSE.5627.SESC | 600 | 0.128 | 227 | 227 | 1 | |||
| Suggestion: For overload reason, we don’t suggest SE wall mount cabinet to be fully loaded on 40HQ container. | |||||||||
