| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |

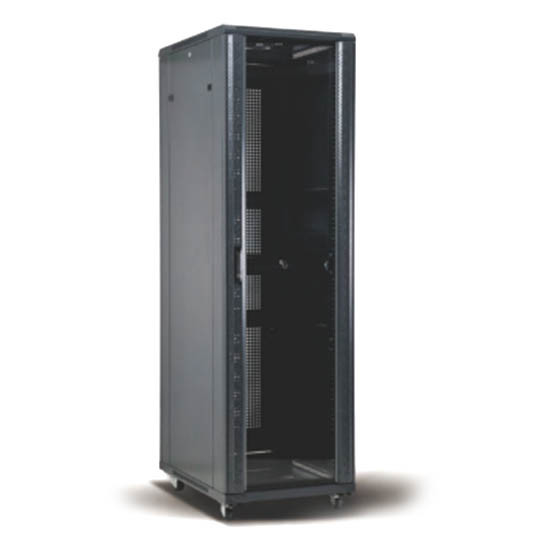

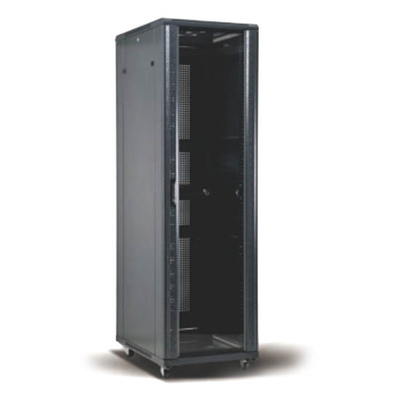

| Model Number: | TE Rack Cabinets |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Materials: | SPCC Cold Rolled Steel | 19″ Rails: | 2.0mm |
|---|---|---|---|
| Others: | 1.2mm | Static Loading: | 400KG |
| Materials: | |||||
| · SPCC Cold Rolled Steel; | · 19″ rails: 2.0mm; | ||||
| · others:1.2mm. | |||||
| Colour: | |||||
| · ZCTE.■■■■.■■.0■■: RAL7035. · ZCTE.■■■■.■■.1■■: RAL9004. |
|||||
| Loading Capacity: | |||||
| · Static loading:400KG. | |||||
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
· Our cabinet products are made of high-quality SPCC thick cold-rolled steel plates, processed by advanced condensation technology, and have excellent compression and seismic resistance;
· The surface is galvanized with square hole-resistant strip fingerprint aluminum, and the The factory’s automatic production of molds and laser cutting make the products stable, exquisite and delicate;
· With a complete art production chain, each part of the product is degreasing, pickling, phosphating, and electrostatic spraying, which greatly improves the product’s quality. Anti-oxidation and anti-corrosion ability;
· The finished product has undergone strict quality inspection, screening and control, and fully meets the above-mentioned standards to ensure that Zion’s products must be exquisite.
· Exquisite design with precise dimension and craftsmanship;
· Within the cavity in front and back the door be style;
· Adjustable feet and heavy duty castors are available simultaneously;
· Modular quick disassembling;
· Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;
· Eficient and reliable cabinet connection by baying kit;
· Removable side panel&rear door to Quick open steel door ease maintain.
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Read door | 1 | SPCC t1.0 | Powder coated | ····· | |||
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 3 | 19″rails | 4 | SPCC t2.0 | Powder coated | ····· | |||
| 4 | Mounting angle | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 5 | Top cover | 1 | SPCC t1.0 | Powder coated | ····· | |||
| 6 | Frame | 2 | SPCC t1.0 | Powder coated | ····· | |||
| 8 | Front door | 1 | ····· | ····· | Tempered glass door | |||
| 8 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | |||
| 9 | 2″ heavy duty castor | 4 | ····· | ····· | ····· | |||
| A | M12 adjustable feet | 4 | Steel | zinc-plated | Height:100MM | |||
| B | M6 screw & nuts | 20 | Steel | zinc-plated | 40pcs for over 27U | |||
| C | Trox tooling | 1 | Steel | zinc-plated | ····· | |||
| Company Number | Part Number. | Width (mm) |
Depth(D) (mm) |
Capacity (U) |
Height(H) (mm) |
|||
| 7243269 | ZCTE.6621.TENC | 600 | 600 | 21 | 1020 | |||
| 7243270 | ZCTE.6627.TENC | 27 | 1290 | |||||
| 7243271 | ZCTE.6636.TENC | 36 | 1690 | |||||
| 7243272 | ZCTE.6642.TENC | 42 | 1955 | |||||
| 7243273 | ZCTE.6647.TENC | 47 | 2180 | |||||
| 7243274 | ZCTE.8842.TENC | 800 | 800 | 42 | 1955 | |||
| 7243275 | ZCTE.8847.TENC | 47 | 2180 |
|||||
