Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Data Center Equipment
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Detail Information
Model: Modul Plug / Connectors Bnad: Zion Communication
Cords: 7024001 Categories: Cat3 Plug
High Light:

6P2C Connector Plug Accessories

,

RJ11 Connector Plug Accessories

,

Cat3 Connector Plug Accessories


Product Description

Cat3 6P2C RJ11 Connector , Plug Accessories , From China Manufacturer - Zion Communiation

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html






7024001 | ZC-MP3-62UR
Modular Plug , 6P/2C, CAT3,unshielded, round,
6-position, crystal head,100/bag

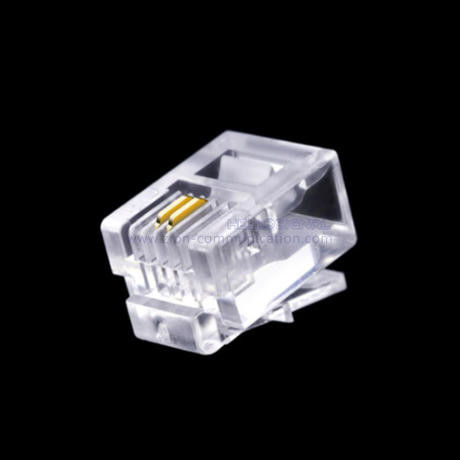

Physical photo

Physical photo-Cat3 6P-2C RJ11 connector





Dimensional Structure

Dimensional Structure-Cat3 6P-2C RJ11 connector



Electrical Specifications

ANSI/TIA Category 5
Current Rating,maximum 0.75 A
Insulation Resistance,minimum 500 mOhm
Safety Voltage Rating 150 Vac
Pass fluke test Compliant

General Specifications
Cable Type Round,unshielded
Interface RJ11
Application
Operating Temperature -40 to +85
Relative Humidity Up to 93%, non-condensing
Package Quantity 100
Packaging Type Bag | Box | Carton
Positions/loaded Contacts 6P/2C


Mechanical Specifications
Conductor Gauge Solid/Stranded 26-24 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ OR 30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel

Regulatory Compliance/Certifications
RoHS 2011/65/EU Compliant

Order Informations
Label Can be customized
Delivery time Normally 15 working days
Brand Hellosignal ®
OEM Yes
