Home > Products> Copper Structured Cabling> Phosphor Bronze 8P8C RJ45 Connector Modular Plug for CAT5E Flat Over Cabling

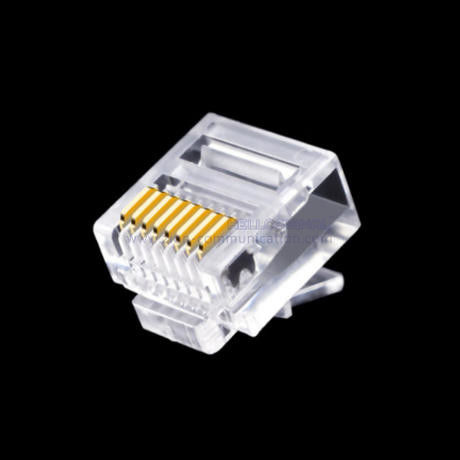

Phosphor Bronze 8P8C RJ45 Connector Modular Plug for CAT5E Flat Over Cabling

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024005

Categories:

Cat5e Plug

Highlight:

8P8C Connector Plug Accessories

CAT5E Connector Plug Accessories

Phosphor Bronze Plug Accessories

Product Description

CAT5E UTP 8P8C RJ45 Connector Plug Accessories Phosphor Bronze

CAT5E UTP 8P8C Short RJ45 Connector, Plug Accessories from China Manufacturer - Zion Communication

More details available at: https://www.zion-communication.com/Copper-System-Equipment.html

Product Identification

Part Number 7024005 | ZC-MP5E88UFS Product Type Modular Plug, 8P/8C, CAT5E, unshielded, Flat over Configuration 8-position, short crystal head Packaging 100/bag

Product Visuals

Electrical Specifications

ANSI/TIA Category 5 Current Rating, maximum 0.75 A Insulation Resistance, minimum 500 mOhm Safety Voltage Rating 150 Vac Fluke Test Compliance Compliant

General Specifications

Cable Type Flat over, unshielded Interface RJ45 Operating Temperature -40℃ to +85℃ Relative Humidity Up to 93%, non-condensing Package Quantity 100 Packaging Type Bag | Box | Carton Positions/Loaded Contacts 8P/8C

Mechanical Specifications

Conductor Gauge Solid/Stranded 26-24 AWG Contact Base Material Phosphor bronze Contact Plating Material Gold Contact Plating Thickness 50μ OR 30μ | 6μ Material Type PC = Polycarbonate Plug Insertion Life, minimum 750 times Plug Shield Base Material Copper Alloy Plug Shield Plating Material Nickel

Regulatory Compliance

RoHS 2011/65/EU Compliant

Order Information

Label	Can be customized
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Yes
Contact Email	info@zion-communication.com
