Cat6 Plug RJ45 Connector with 8P8C Phosphor Bronze Contacts and Gold Plated Modular Plug

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024009

Categories:

Cat6 Plug

Highlight:

8P8C Connector Data Center Equipment

Non Condensing Plug Accessories

Cat6 Plug Data Center Equipment

Product Description

Cat6 UTP 8P8C RJ45 Connector Plug

Professional-grade Cat6 UTP 8P8C RJ45 connector plug accessories manufactured by Zion Communication. These modular plugs are designed for data center equipment and network infrastructure applications.

View more product details

Product Identification

Part Number	7024009 \| ZC-MP6-88UR
Product Type	Modular Plug, 8P/8C, CAT6, Unshielded
Cable Compatibility	Round, unshielded cables
Packaging	100/bag

Product Visuals

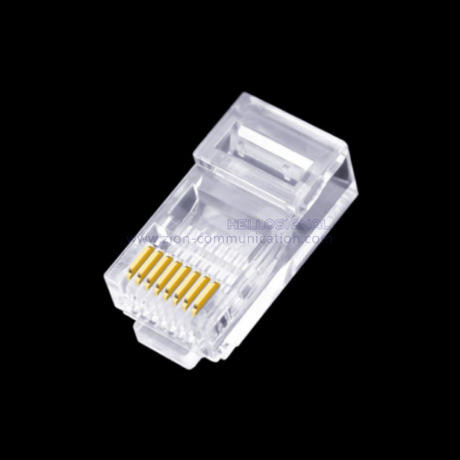

Physical Appearance

Dimensional Structure

Technical Specifications

Electrical Performance

ANSI/TIA Category	5
Maximum Current Rating	0.75 A
Minimum Insulation Resistance	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Options	Bag \| Box \| Carton
Positions/Loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Minimum Plug Insertion Life	750 times

Regulatory Compliance

RoHS 2011/65/EU

Compliant

Ordering Information

Custom Labeling: Available upon request
Standard Delivery Time: 15 working days
Brand: Hellosignal ®
OEM Services: Available
Contact Email: info@zion-communication.com
