Cat5E UTP 8P8C RJ45 Connector Modular Plug with Phosphor Bronze Contacts and Unshielded Design

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024004

Categories:

Cat5e Plug

Highlight:

Copper Alloy Shield Plug Accessories

Copper Alloy Shield Data Center Equipment

UTP Modular Plug

Product Description

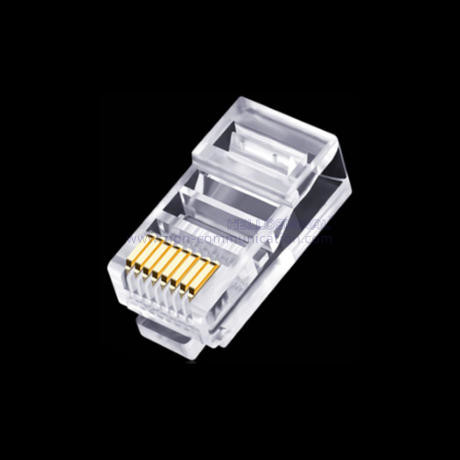

Cat5E UTP 8P8C RJ45 Connector Plug

Manufacturer: Zion Communication
Brand: Hellosignal ®
Part Number: ZC-MP5E88UR | 7024004

Professional-grade Cat5E UTP 8P8C RJ45 connector plug designed for reliable network connectivity. This crystal head connector supports 8-position, 8-contact configurations and is compatible with round unshielded cables measuring 4.7-5.2 mm outer diameter.

View more details on our Copper System Equipment page

Product Images

Technical Specifications

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mΩ
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Positions/Loaded Contacts	8P/8C
Package Quantity	100 per bag
Packaging Options	Bag \| Box \| Carton

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-24 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC (Polycarbonate)
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Compliance & Certifications

RoHS Compliant Meets RoHS 2011/65/EU environmental standards

Ordering Information

Label Customization	Available
Delivery Time	Normally 15 working days
OEM Services	Yes
Contact Email	info@zion-communication.com
