Home > Products> Copper Structured Cabling> Zion Communication CAT6 UTP Short Crystal Head Modular Plug with Phosphor Bronze Contact and 8P/8C Configuration

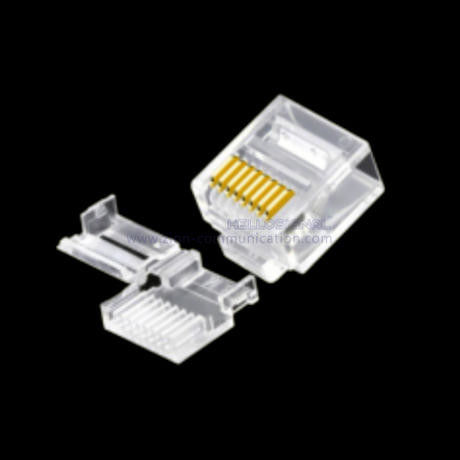

Zion Communication CAT6 UTP Short Crystal Head Modular Plug with Phosphor Bronze Contact and 8P/8C Configuration

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024010

Categories:

Cat6 Plug

Highlight:

Short Crystal Head Plug Accessories

CAT6 Modular Plug

2PCS Modular Plug

Product Description

Zion Communication CAT6 UTP 2PCS Plug Accessories Short Crystal Head

CAT6 UTP Short 2PCS RJ45 Connector, Plug Accessories
From China Manufacturer - Zion Communication
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

Product Identification

Product Code	7024010 \| ZC-MP6-88URS2P
Product Type	Modular Plug, 8P/8C, 2 PCS, CAT6, unshielded, round, 8-position, Short crystal head, 100/bag

Product Visuals

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, 2PCS, unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times

Regulatory Compliance & Certifications

RoHS 2011/65/EU

Compliant

Order Information

Label	Can be customized
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Yes
