Unshielded CAT6 Pass Through Modular Plug RJ45 Connector with 8P/8C Configuration

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

MModulesodel:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024011

Highlight:

CAT6 Plug Modular Connectors

RJ45 Modular Connectors

Unshielded Modular Connectors

Product Description

Unshielded CAT6 Plug Modular Connectors UTP Pass Through RJ45

CAT6 UTP Pass Through RJ45 Connector, Plug Accessories
From China Manufacturer - Zion Communication

More details: Visit Product Page

Product Information

Part Number	7024011 \| ZC-MP6-88URPT
Product Type	Modular Plug, 8P/8C, CAT6, Unshielded, Round
Features	8-position, Pass Through crystal head
Package Quantity	100/bag

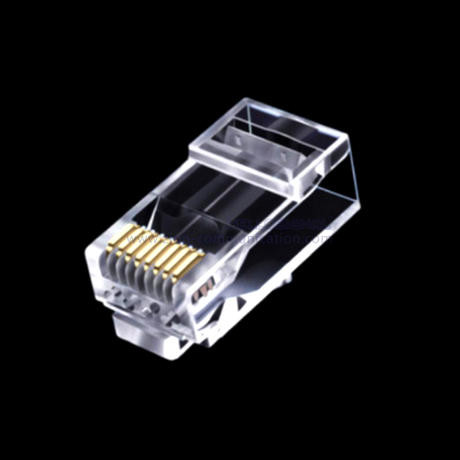

Physical Photo

Dimensional Structure

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Pass fluke test	Compliant

General Specifications

Cable Type	Round, PT, Unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
