Home > Products> Copper Structured Cabling> Cat6 Unshielded RJ45 Modular Plug with Phosphor Bronze Contacts for Reliable Connectivity

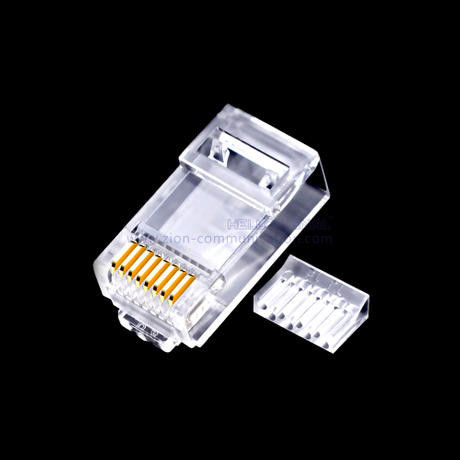

Cat6 Unshielded RJ45 Modular Plug with Phosphor Bronze Contacts for Reliable Connectivity

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024017

Categories:

Cat6 Plug

Highlight:

Cat6 RJ45 Plug

Unshielded Modular Plug

Phosphor Bronze 8P8C Connector

Product Description

RJ45 Plugs Cat6 UTP 8P/8C 2P Connector - Modular Plug & Accessories

More product details available here

Product Overview

Part Number	7024017 \| ZC-MP6-88URS2P
Description	Modular plug, 8P8C 2pcs, CAT6, Unshielded, Round, 8-position, Crystal Head, 100/bag
Brand	Hellosignal ®

Product Images

Dimensional Structure

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, 2PCS, unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
