| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Wall Mount Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCNC-03 | Color: | Black,Grey |
| Loading Capacity: | 60kg | ||
| High Light: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
| ZCNC-03 Wall Mount Rack Cabinet | ||||||
| Technical Data | |
|||||
| Materials: | ||||||
| · SPCC high quality cold rolled steel | ||||||
| · Surface process: degreasing; plckling; phosphating; spray paint | ||||||
| · Thickness: Mounting profile 1.5mm; Others 1.0-1.2mm | ||||||
| Colour: | ||||||
| · RAL9004 (black); RAL7035(gray) | ||||||
| Standard | ||||||
| ·Compliant with ANSI/EIA; RS-310-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T3047.2-92; ETSI. Also meets 19-inch international universal standards, metric standards and ETS standards |
||||||
| Features | ||||||
| · Double-open wall cabinet, when opening, the angle between twodoors is 120° , as for the front door is 180° |
||||||
| · Steady structure with 60KG static load. | ||||||
| · Fast and simple wall installation, standard 19"internal installation. | ||||||
| · Hinges of the back door are black load-bearing type. | ||||||
| · 120mm fans mounted on the top of cabinet. | ||||||
| · Fibers entry from the top and bottom. | ||||||
| · lP grade: lP20. | ||||||
| · Flexible packaging ensures cabinet's storage and delivery. | ||||||
| · Bulk packaging is available to save more space and freight. | ||||||
| · Providing customized services. | ||||||
| Mian Install the Fitting | ||||||
|
|
|
||||

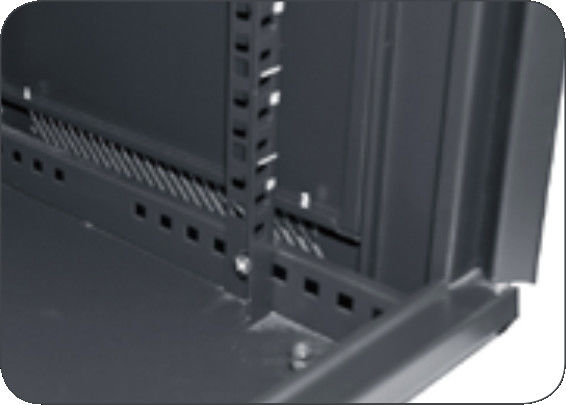

| Top cover | Mounting profile | Back | ||||
| Main Part | ||||||
| NO. | ITEM | QTY | SPCCT (mm) | |||
| 1 | Frame | 1PCS | 1.0 | |||
| 2 | Mounting profile | 4PCS | 1.5 | |||
| 3 | Fixed shelf | 2PCS | 1.0 | |||
| 4 | Back box | 1PCS | 1.5 | |||
| 5 | Hanger | 2PCS | 0.8 | |||
| 6 | Back panel | 1PCS(Quantity as request) | 1.0 | |||
| 7 | Side panel | 1PCS | 1.2 | |||
| 8 | Tempered glass door | 1PCS(Quantity as request) | 1.2 | |||
|
||||||
| Ordering Information | ||||||
| Model | Width (mm) |
Depth(D) (mm) | Height (mm) |
U | ||
| ZCNC.6504-3WMC | 600 | 450+100 | 274 | 4U | ||
| ZCNC.6604-3WMC | 500+100 | |||||
| ZCNC.6506-3WMC | 600 | 450+100 | 363 | 6U | ||
| ZCNC.6606-3WMC | 500+100 | |||||
| ZCNC.6509-3WMC | 600 | 450+100 | 496 | 9U | ||
| ZCNC.6609-3WMC | 500+100 | |||||
| ZCNC.6512-3WMC | 600 | 450+100 | 629 | 12U | ||
| ZCNC.6612-3WMC | 500+100 | |||||
| ZCNC.6515-3WMC | 600 | 450+100 | 762 | 15U | ||
| ZCNC.6615-3WMC | 500+100 | |||||
| ZCNC.6518-3WMC | 600 | 450+100 | 892 | 18U | ||
| ZCNC.6618-3WMC | 500+100 | |||||
