| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Wall Mount Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCNC-01 | Color: | Black,Grey |
| Loading Capacity: | 60kg | ||
| High Light: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
| ZCNC-01 Wall Mount Rack Cabinet | |||||
| Technical Data | |
||||
| Materials: | |||||
| · SPCC high quality cold rolled steel | |||||
| · Surface process: degreasing; plckling; phosphating; spray paint |
|||||
| · Thickness: Mounting profile 1.5mm; Others 1.0-1.2mm | |||||
| Colour: | |||||
| · RAL9004 (black); RAL7035(gray) | |||||
| Standard | |||||
| ·Compliant with ANSI/EIA; RS-310-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T3047.2-92; ETSI. Also meets 19-inch international universal standards, metric standards and ETS standards |
|||||
| Features | |||||
| · Single-open wall cabinet with multiple options of front door types. | |||||
| · welding structure, adapting advanced technology along, and ensureprecise dimensions. | |||||
| · Steady structure with 60KG static load. | |||||
| · Fast and simple installation conforms to 19" standard. | |||||
| · 120MM fans installed on the top of the cabinet. | |||||
| · The cabinet can be installed from the side,and fibers entry from thetop and bottom. | |||||
| · lP grade: lP20. | |||||
| · Flexible packaging ensures cabinet's storage and delivery. | |||||
| · Providing customized services. | |||||
| Mian Install the Fitting | |||||
|
|
|
|
||
| Mounting angle | Top cover | Mounting profile | Fixed shelf | ||

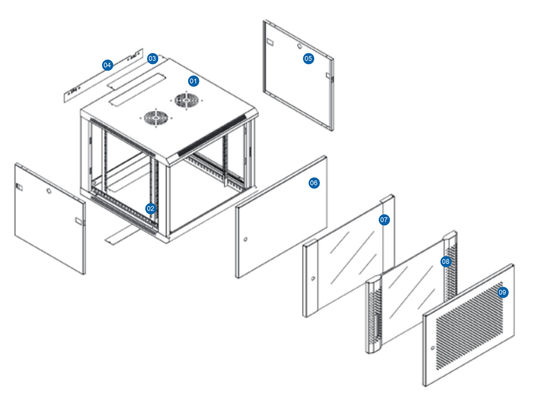

| Main Part | |||||
|
|||||
| Main Part | |||||
| NO. | ITEM | QTY | SPCCT (mm) |
|
|
| 1 | Frame | 1PCS | 1.0 | ||
| 2 | Mounting profile | 4PCS | 1.5 | ||
| 3 | Panel | 2PCS | 1.0 | ||
| 4 | Hanger | 1PCS | 1.5 | ||
| 5 | Side door | 2PCS | 0.8 | ||
| 6 | Metal door | 1PCS(Quantity as request) | 1.0 | ||
| 7 | Toughened glass door | 1PCS | 1.2 | ||
| 8 | Toughened glass door with round vented border |
1PCS(Quantity as request) | 1.2 | ||
| 9 | Toughened glass door with round vented border |
1PCS(Quantity as request) | 1.0 | ||
|
|
|||||
| Ordering Information | |||||
| Model | Width (mm) |
Depth(D) (mm) | Height (mm) |
U | |
| ZCNC.5404-1WMC | 550 | 450 | 274 | 4U | |
| ZCNC.5504-1WMC | 500 | ||||
| ZCNC.5604-1WMC | 600 | ||||
| ZCNC.6404-1WMC | 600 | 450 | 274 | 4U | |
| ZCNC.6504-1WMC | 500 | ||||
| ZCNC.6604-1WMC | 600 | ||||
| ZCNC.5406-1WMC | 550 | 450 | 363 | 6U | |
| ZCNC.5506-1WMC | 500 | ||||
| ZCNC.5606-1WMC | 600 | ||||
| ZCNC.6406-1WMC | 600 | 450 | 363 | 6U | |
| ZCNC.6506-1WMC | 500 | ||||
| ZCNC.6606-1WMC | 600 | ||||
| ZCNC.5409-1WMC | 550 | 450 | 496 | 9U | |
| ZCNC.5509-1WMC | 500 | ||||
| ZCNC.5609-1WMC | 600 | ||||
| ZCNC.6409-1WMC | 600 | 450 | 496 | 9U | |
| ZCNC.6509-1WMC | 500 | ||||
| ZCNC.6609-1WMC | 600 | ||||
| ZCNC.5412-1WMC | 550 | 450 | 629 | 12U | |
| ZCNC.5512-1WMC | 500 | ||||
| ZCNC.5612-1WMC | 600 | ||||
| ZCNC.6412-1WMC | 600 | 450 | 629 | 12U | |
| ZCNC.6512-1WMC | 500 | ||||
| ZCNC.6612-1WMC | 600 | ||||
| ZCNC.5415-1WMC | 550 | 450 | 762 | 15U | |
| ZCNC.5515-1WMC | 500 | ||||
| ZCNC.5615-1WMC | 600 | ||||
| ZCNC.6415-1WMC | 600 | 450 | 762 | 15U | |
| ZCNC.6515-1WMC | 500 | ||||
| ZCNC.6615-1WMC | 600 | ||||
| ZCNC.5418-1WMC | 550 | 450 | 896 | 18U | |
| ZCNC.5518-1WMC | 500 | ||||
| ZCNC.5618-1WMC | 600 | ||||
| ZCNC.6418-1WMC | 600 | 450 | 896 | 18U | |
| ZCNC.6518-1WMC | 500 | ||||
| ZCNC.6618-1WMC | 600 | ||||
| ZCNC.5422-1WMC | 550 | 450 | 1073 | 22U | |
| ZCNC.5522-1WMC | 500 | ||||
| ZCNC.5622-1WMC | 600 | ||||
| ZCNC.6422-1WMC | 600 | 450 | 1073 | 22U | |
| ZCNC.6522-1WMC | 500 | ||||
| ZCNC.6622-1WMC | 600 | ||||
| ZCNC.5427-1WMC | 550 | 450 | 1295 | 27U | |
| ZCNC.5527-1WMC | 500 | ||||
| ZCNC.5627-1WMC | 600 | ||||
| ZCNC.6427-1WMC | 600 | 450 | 1295 | 27U | |
| ZCNC.6527-1WMC | 500 | ||||
| ZCNC.6627-1WMC | 600 | ||||
| Remark: Information in the sheet refers to the height of cabinet without castor | |||||
