| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Server Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCIDC-03 | Capacity: | 42U,47U |
| Depth: | 800mm, 900mm, 1000mm ,1100mm And 1200mm | ||
| Highlight: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

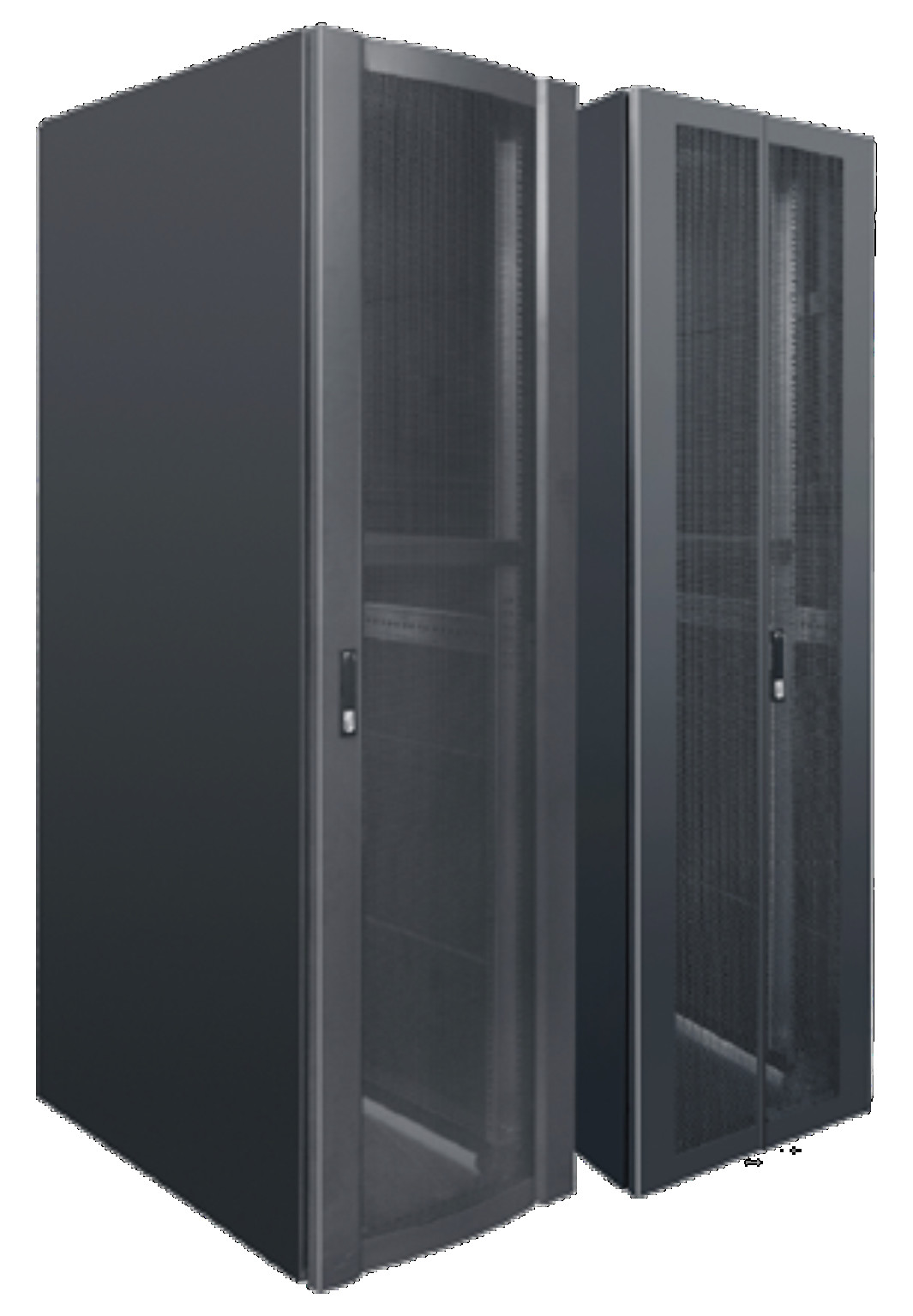

| ZCIDC-03 Server Cabinet | ||||||
| Technical Data | |
|||||
| Materials: | ||||||
| · SPCC high quality cold rolled steel | ||||||
| · Surface process: degreasing; phosphating; spray paint | ||||||
| · Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm | ||||||
| Colour: | ||||||
| · RAL9004 (black); others could be required | ||||||
| Standard | ||||||
| ·Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T2047.2-92; ETSI |
||||||
| Features | ||||||
|
· The cabinet frame is made of international advanced 14-fold profiles with the special 3-way technology, which makes the structure stronger and can load about 1200 KG. |
||||||
|
· More than 65% of the heat dissipation area of the cabinet can be ensured by the mesh front single-door and mesh rear double-door. |
||||||
|
· The installation and disassembly of side doors is fast and convenient, which makes maintenance much easier and more effcient. |
||||||
| · Movable caster and fixed feet can be used simultaneously, which makes the moving of cabinets easier. | ||||||
|
· Replaceable hinges have been installed on the door and protected of top cable holes by a rubber cover, which are flexible and safe. |
||||||
| · Height: 42U, 47U | ||||||
| · Depth: 800mm, 900mm, 1000mm ,1100mm and 1200mm. | ||||||
| · The depth(25mm/unit) and inner height(1U/unit) are adjustable. | ||||||
| · Flexible packaging ensures cabinet’s storage and delivery. | ||||||
| Mian Install the Fitting | ||||||
|
|
|
||||
| Top cover | Caster tray | Cable management | ||||
| Main Part |
|
|||||
| NO. | ITEM | QTY | SPCCT (mm) | |||
| 1 | Frame | 1PCS | 1.5 | |||
| 2 | Mounting angle | 4PCS | 1.5 | |||
| 3 | Mounting profile | 4PCS | 2.0 | |||
| 4 | Top cover | 1PCS | 1.2 | |||
| 5 | Bottom panel | 1PCS | 1.5 | |||
| 6 | Fan tray | 1PCS | 1.2 | |||
| 7 | Decorative plates | 4PCS | 2.0 | |||
| 8 | Caster | 4PCS | / | |||
| 9 | Side panel | 2PCS | 1.2 | |||
| 10 | Front door | 1PCS | 1.2 | |||
| 11 | Rear door | 1SET | 1.2 | |||
| Ordering Information | ||||||
|
||||||
| Model | Width (mm) |
Depth(D) (mm) |
Height (mm) |
U | ||
| ZCIDC.6842-3 SHSC | 600 | 800 | 1975 | 42U | ||
| ZCIDC.6942-3 SHSC | 900 | |||||
| ZCIDC.6042-3 SHSC | 1000 | |||||
| ZCIDC.6142-3 SHSC | 1100 | |||||
| ZCIDC.6242-3 SHSC | 1200 | |||||
| ZCIDC.8842-3 SHSC | 800 | 800 | 1975 | 42U | ||
| ZCIDC.8942-3 SHSC | 900 | |||||
| ZCIDC.8042-3 SHSC | 1000 | |||||
| ZCIDC.8142-3 SHSC | 1100 | |||||
| ZCIDC.8242-3 SHSC | 1200 | |||||
| ZCIDC.6847-3 SHSC | 600 | 800 | 2175 | 47U | ||
| ZCIDC.6947-3 SHSC | 900 | |||||
| ZCIDC.6047-3 SHSC | 1000 | |||||
| ZCIDC.6147-3 SHSC | 1100 | |||||
| ZCIDC.6247-3 SHSC | 1200 | |||||
| ZCIDC.8847-3 SHSC | 800 | 800 | 2175 | 47U | ||
| ZCIDC.8947-3 SHSC | 900 | |||||
| ZCIDC.8047-3 SHSC | 1000 | |||||
| ZCIDC.8147-3 SHSC | 1100 | |||||
| ZCIDC.8247-3 SHSC | 1200 | |||||
