42U/47U Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and 1200KG Load Capacity for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Server Rack Cabinet	Bnad:	Zion Communication
Cord:	ZCIDC-03	Capacity:	42U,47U
Depth:	800mm, 900mm, 1000mm ,1100mm And 1200mm
Highlight:	server rack cabinets , network rack cabinets

Product Description

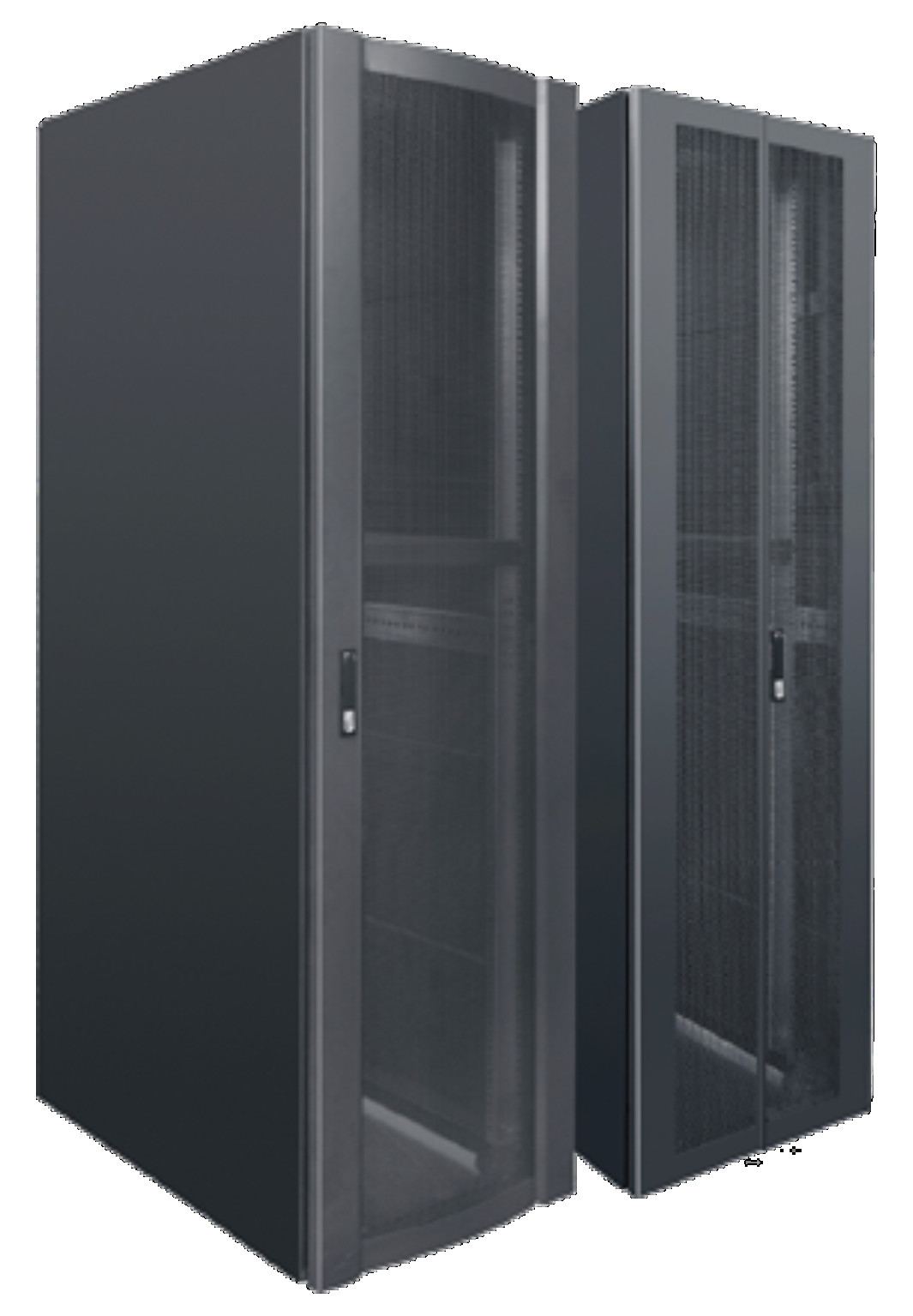

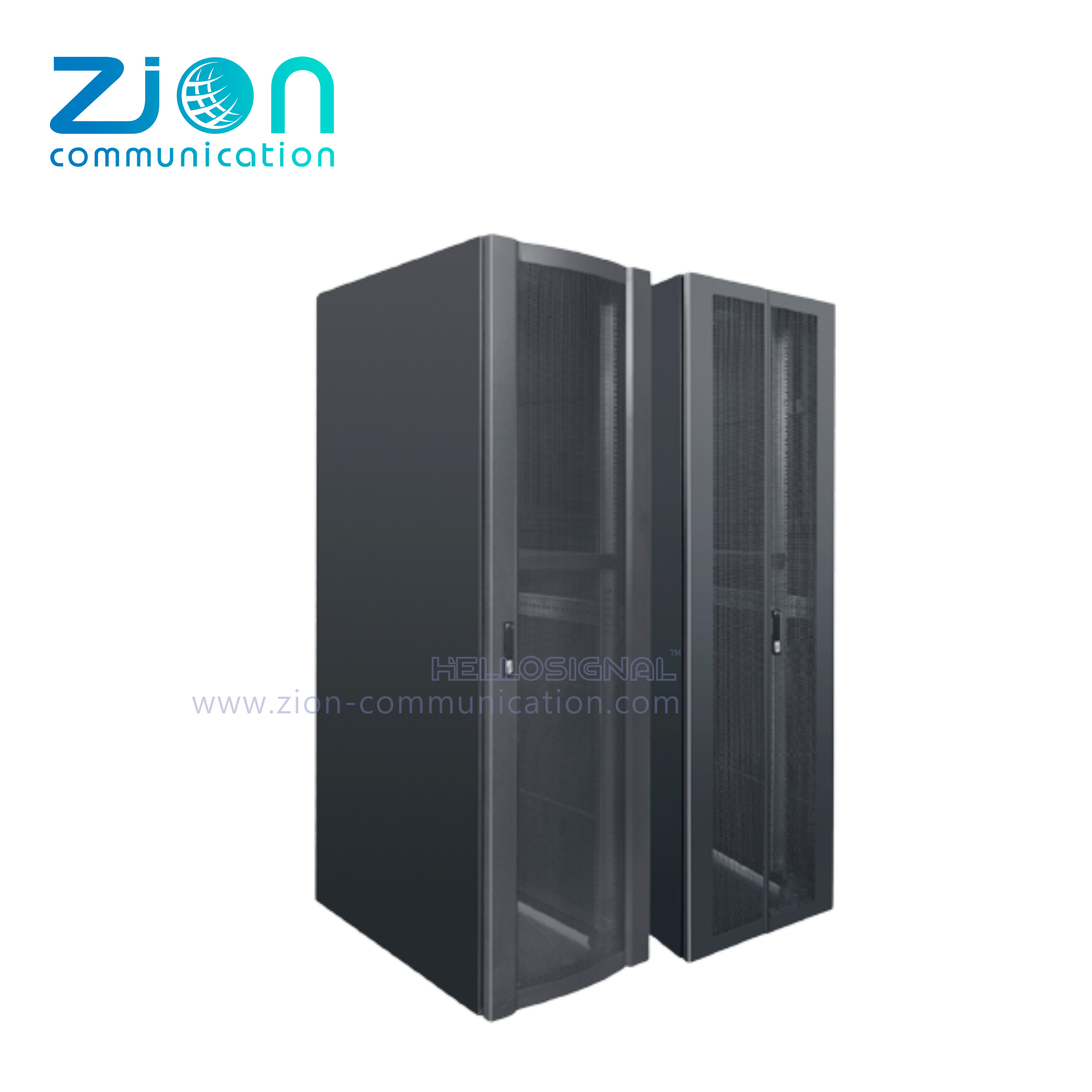

ZCIDC-03 Server Rack Cabinet

For more detailed information, please visit our comprehensive product page:

Copper System Equipment - Zion Communication

Technical Specifications

Materials:	SPCC high quality cold rolled steel Surface process: degreasing; phosphating; spray paint Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Color:	RAL9004 (black); custom colors available upon request

Compliance Standards

Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491; PART1; DIN41494; PAR7; GB/T2047.2-92; ETSI

Key Features

Advanced 14-fold profile frame with 3-way technology provides exceptional structural strength supporting up to 1200 KG
Mesh front single-door and mesh rear double-door design ensures over 65% heat dissipation area
Quick-install side doors for easy maintenance and efficient service access
Combination of movable casters and fixed feet for easy cabinet relocation
Replaceable hinges and rubber-protected top cable holes for enhanced flexibility and safety
Available in 42U and 47U heights with multiple depth options
Adjustable depth (25mm/unit) and inner height (1U/unit) for customization
Flexible packaging solutions for secure storage and delivery

Main Installation Components

Top Cover

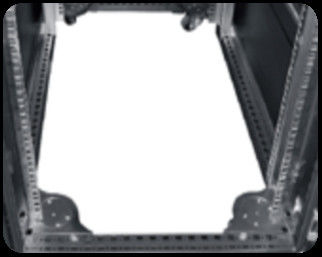

Caster Tray

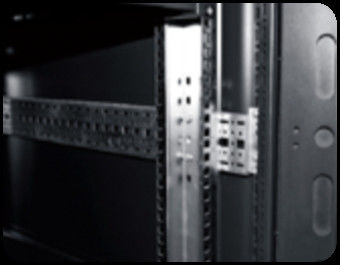

Cable Management

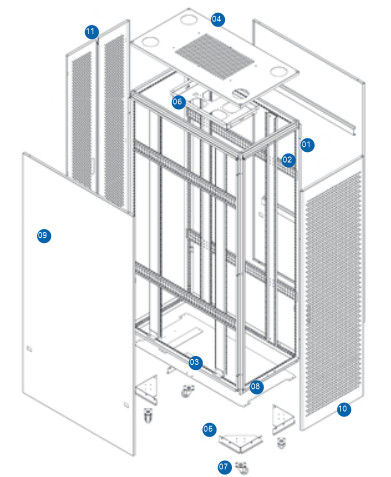

Main Components List

NO.	ITEM	QTY	SPCCT (mm)
1	Frame	1PCS	1.5
2	Mounting angle	4PCS	1.5
3	Mounting profile	4PCS	2.0
4	Top cover	1PCS	1.2
5	Bottom panel	1PCS	1.5
6	Fan tray	1PCS	1.2
7	Decorative plates	4PCS	2.0
8	Caster	4PCS	/
9	Side panel	2PCS	1.2
10	Front door	1PCS	1.2
11	Rear door	1SET	1.2

Ordering Information

Model	Width (mm)	Depth (D) (mm)	Height (mm)	U
ZCIDC.6842-3 SHSC	600	800	1975	42U
ZCIDC.6942-3 SHSC	600	900	1975	42U
ZCIDC.6042-3 SHSC	600	1000	1975	42U
ZCIDC.6142-3 SHSC	600	1100	1975	42U
ZCIDC.6242-3 SHSC	600	1200	1975	42U
ZCIDC.8842-3 SHSC	800	800	1975	42U
ZCIDC.8942-3 SHSC	800	900	1975	42U
ZCIDC.8042-3 SHSC	800	1000	1975	42U
ZCIDC.8142-3 SHSC	800	1100	1975	42U
ZCIDC.8242-3 SHSC	800	1200	1975	42U
ZCIDC.6847-3 SHSC	600	800	2175	47U
ZCIDC.6947-3 SHSC	600	900	2175	47U
ZCIDC.6047-3 SHSC	600	1000	2175	47U
ZCIDC.6147-3 SHSC	600	1100	2175	47U
ZCIDC.6247-3 SHSC	600	1200	2175	47U
ZCIDC.8847-3 SHSC	800	800	2175	47U
ZCIDC.8947-3 SHSC	800	900	2175	47U
ZCIDC.8047-3 SHSC	800	1000	2175	47U
ZCIDC.8147-3 SHSC	800	1100	2175	47U
ZCIDC.8247-3 SHSC	800	1200	2175	47U
