| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Server Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCIDC-07 | Capacity: | 18U,22U,27U,32U,37U, 42U,47U |
| Depth: | 800mm, 900mm And 1000mm | ||
| Highlight: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
| ZCIDC-07 Server Cabinet | ||||||
| Technical Data | |
|||||
| Materials: | ||||||
| · SPCC high quality cold rolled steel | ||||||
| · Surface process: degreasing; phosphating; spray paint | ||||||
| · Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm | ||||||
| Colour: | ||||||
| · RAL9004 (black); others could be required | ||||||
| Standard | ||||||
| ·Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T2047.2-92; ETSI |
||||||
| Features | ||||||
| · Strong structure with static loading capacity: 800KG | ||||||
| · Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily. | ||||||
| · Tempered glass front doorwith vented metal straight rowof holes, beautiful appearancedesign with steel rear door. |
||||||
| · Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180 degrees in parallel when it's connected, easy to assemble and operate. |
||||||
| · Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out. | ||||||
| · Size of the device installationcan be selected from 19-27inches, and the 19-inch canbe equipped with a verticalcable management rack. |
||||||
| · Full range of optional accessories with trustworthyquality. | ||||||
| · Height: 18U,22U,27U,32U,37U, 42U,47U | ||||||
| · Depth: 800mm, 900mm and 1000mm. | ||||||
| · Flexible packaging ensures cabinet’s storage and delivery. | ||||||
| Mian Install the Fitting | ||||||
|
|
|
||||
| Cable management | Bottom panel | Mounting angle | ||||

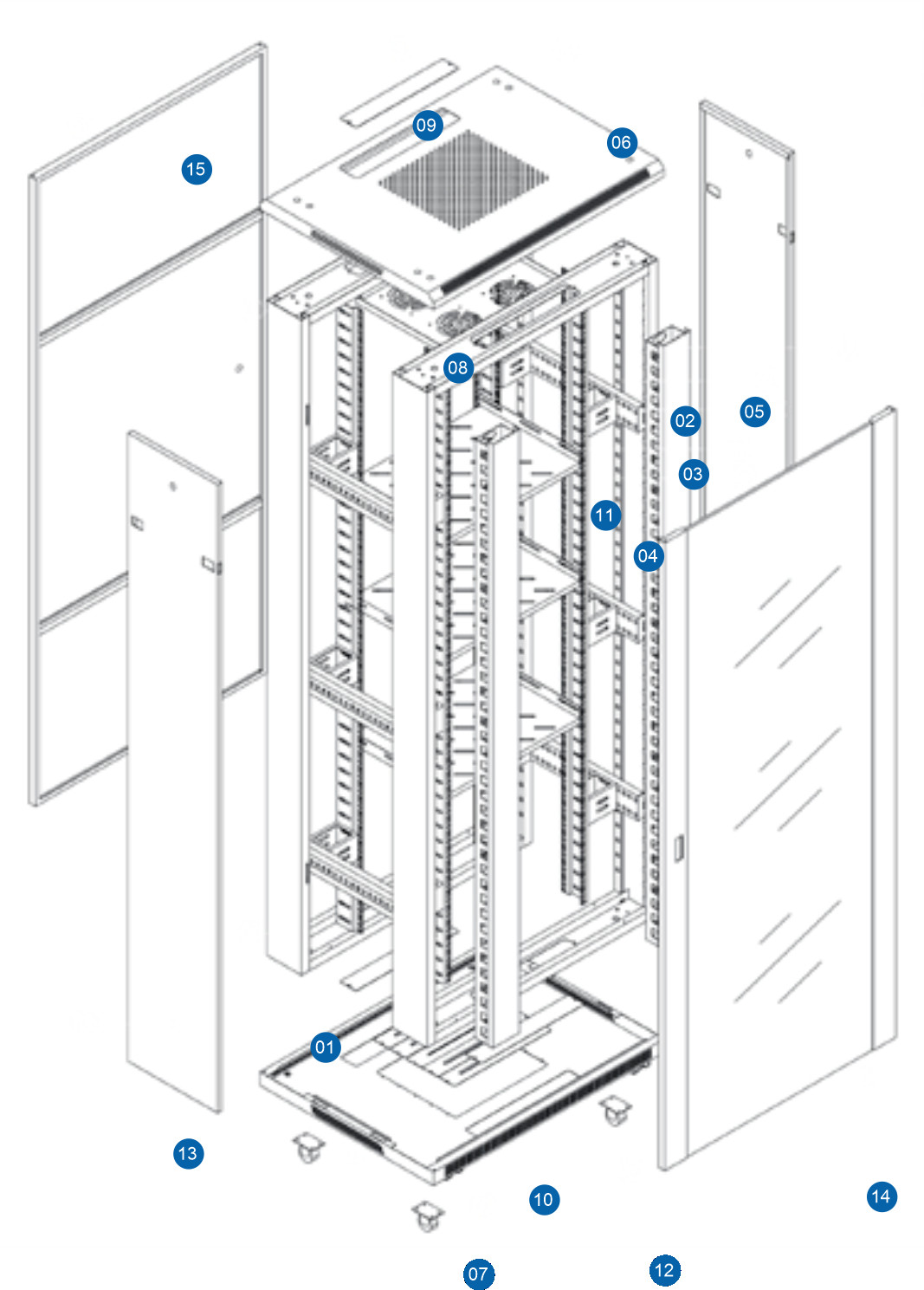

| Main Part | ||||||
| NO. | ITEM | QTY | SPCCT (mm) |
|
||
| 1 | Frame | 2PCS | 1.2 | |||
| 2 | Mounting angle | 4/6PCS | 1.2 | |||
| 3 | Connector | 8/12PCS | 2.0 | |||
| 4 | Mounting post 19in | 4PCS | 2.0 | |||
| 5 | Vertical cable management rack |
2PCS | 1.0 | |||
| 6 | Top cover | 1PCS | 1.2 | |||
| 7 | Bottom panle | 1PCS | 1.2 | |||
| 8 | Fan tray | 1PCS | 1.0 | |||
| 9 | Decorative tray | 3PCS | 1.0 | |||
| 10 | Cable tray | 5PCS | 1.0 | |||
| 11 | Fixed partition | Optional | 1.2 | |||
| 12 | Caster | 4PCS | / | |||
| 13 | Side penal | 2PCS | 1.0 | |||
| 14 | Glass door | 1PCS | 1.2 | |||
| 15 | Steel door | 1PCS | 1.2 | |||
| Ordering Information | ||||||
|
||||||
| Model | Width (mm) |
Depth(D) (mm) | Height (mm) |
U | ||
| ZCIDC.8618-7 SHSC | 800 | 600 | 900 | 18U | ||
| ZCIDC.8818-7 SHSC | 800 | |||||
| ZCIDC.8918-7 SHSC | 900 | |||||
| ZCIDC.8018-7 SHSC | 1000 | |||||
| ZCIDC.8622-7 SHSC | 800 | 600 | 1080 | 22U | ||
| ZCIDC.8822-7 SHSC | 800 | |||||
| ZCIDC.8922-7 SHSC | 900 | |||||
| ZCIDC.8022-7 SHSC | 1000 | |||||
| ZCIDC.8627-7 SHSC | 800 | 600 | 1300 | 27U | ||
| ZCIDC.8827-7 SHSC | 800 | |||||
| ZCIDC.8927-7 SHSC | 900 | |||||
| ZCIDC.8027-7 SHSC | 1000 | |||||
| ZCIDC.8632-7 SHSC | 800 | 600 | 1525 | 32U | ||
| ZCIDC.8832-7 SHSC | 800 | |||||
| ZCIDC.8932-7 SHSC | 900 | |||||
| ZCIDC.8032-7 SHSC | 1000 | |||||
| ZCIDC.8637-7 SHSC | 800 | 600 | 1745 | 37U | ||
| ZCIDC.8837-7 SHSC | 800 | |||||
| ZCIDC.8937-7 SHSC | 900 | |||||
| ZCIDC.8037-7 SHSC | 1000 | |||||
| ZCIDC.8642-7 SHSC | 800 | 600 | 1965 | 42U | ||
| ZCIDC.8842-7 SHSC | 800 | |||||
| ZCIDC.8942-7 SHSC | 900 | |||||
| ZCIDC.8042-7 SHSC | 1000 | |||||
| ZCIDC.8647-7 SHSC | 800 | 600 | 2190 | 47U | ||
| ZCIDC.8847-7 SHSC | 800 | |||||
| ZCIDC.8947-7 SHSC | 900 | |||||
| ZCIDC.8047-7 SHSC | 1000 | |||||
| Remark: Information in the sheet refers to the height of cabinet without castor | ||||||
