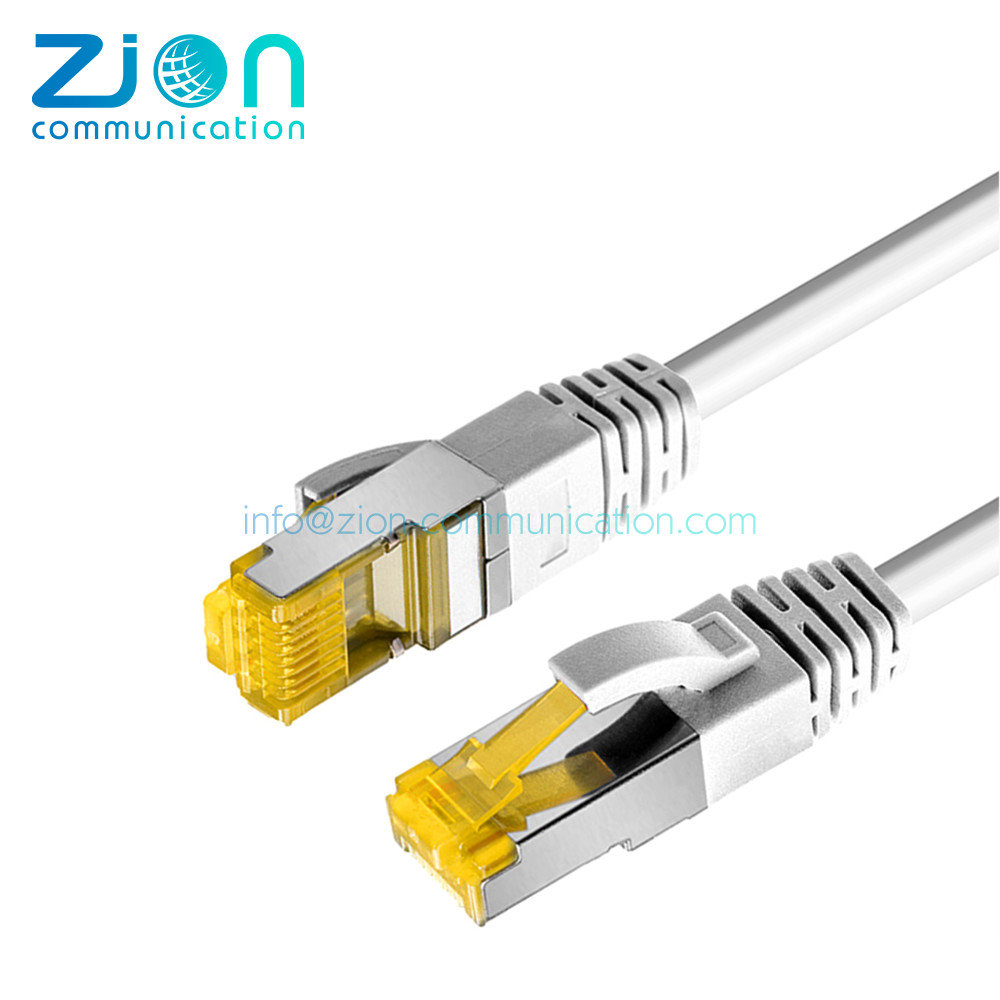

Cat 7 S/FTP Patch Cord with 1000MHz Bandwidth and Bare Copper Conductors for High-Speed Networking

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Copper Patch Cord	Bnad:	HELLOSIGNAL
Cord:	CAT 7 S/FTP	Conductor:	7*0.2mm Stranded Bare Copper
Max. Frequency:	600/1000MHz	Out Jacket:	LSZH; PVC
Highlight:	1000MHz Cat 7 Patch Cord , Bare Copper S/FTP Network Cable , S/FTP Shielded Bare Copper Cable

Product Description

S/FTP CAT7 Patch Cord - 1000MHz LAN Network Cable

More product details available here

Product Overview

This Category 7 S/FTP patch cord features 1000MHz bandwidth capability and is constructed with bare copper conductors. Designed for high-performance networking applications, it provides reliable connectivity for demanding data transmission requirements.

Applications

CAT7 and CAT7A cables are engineered to meet future transmission standards with higher bandwidth requirements. These cables serve as reliable infrastructure in large 10GBase-T networks handling high-data loads and bandwidth-intensive multimedia applications. While originally designed for specialized connectors, CAT7 cables are commonly used with RJ45 connectors in practical applications.

Construction Specifications

Component	Specification
Conductor	7*0.2mm stranded bare copper
Pairs	4 Pairs
Insulation	HDPE
Insulation Colors	White, Blue, Orange, Green, Brown
Individual Shield	Pair in Al/PET Foil
Overall Shield	≥30% Aluminum Braiding
Outer Jacket	LSZH; PVC

Technical Characteristics

Version	Class	Max. Frequency	Shielding	Connector	Application	Standards
CAT 7	F	600MHz	S/FTP	GG45, TERA	CCTV, LAN/WAN Infrastructure	ISO/IEC 11801
CAT 7A	FA	1000MHz	S/FTP	GG45, TERA	CCTV	ISO/IEC 11801 Appendix 2

Product Coding System

SF7 1 C V 03M WH

① ② ③ ④ ⑤ ⑥

Position	Description	Options
① Cable Type	SF7 = S/FTP CAT7
② Conductor Wires	1 = 7/0.2
③ Conductor Material	C = Bare Copper
④ Outer Sheath	V = PVC, O = LSZH
⑤ Cable Length	03=0.3M, 05=0.5M, 1=1M, 2=2M, 3=3M, 5=5M, 10=10M, 15=15M, 20=20M, 30=30M
⑥ Sheath Color	Various standard colors available
