| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |

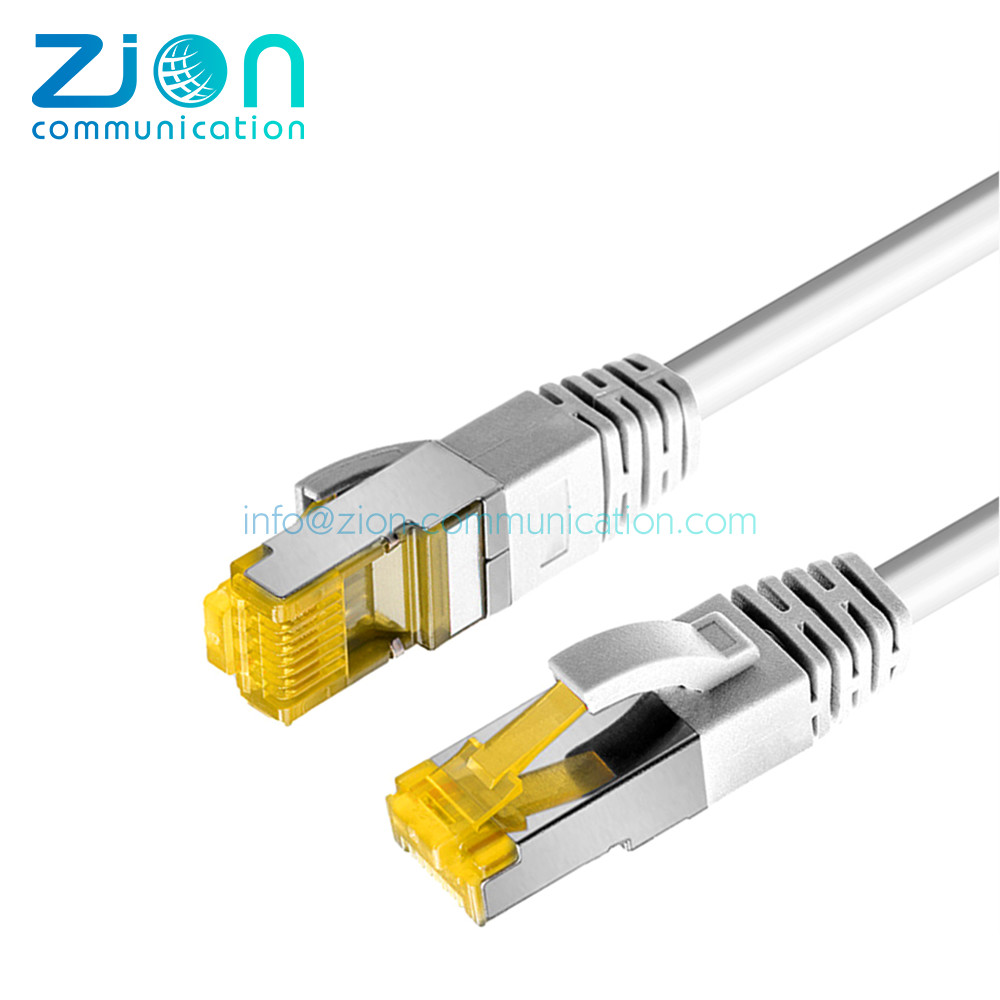

| Model: | Copper Patch Cord | Bnad: | HELLOSIGNAL |
|---|---|---|---|
| Cord: | CAT 7 S/FTP | Conductor: | 7*0.2mm Stranded Bare Copper |
| Max. Frequency: | 600/1000MHz | Out Jacket: | LSZH; PVC |
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
| S/FTP CAT7 | |||||||
| Application: | |||||||
|
Cat.7 and its subcategory Cat.7Ahave been definedin order to be prepared for future transmission standards with even higher bandwidthrequirements. These cables are areliable standard in large 10GBase-Tnetworks with high-data loads and bandwidth-hungry multimediaapplications.
Since the definition of Cat.7 was based on the assumption that the proven RJ45connectwould not meet thehigh bandwidth requirements of 10 Gigabit Ethernet , two new fullyshielded connector types were added to the definition. After the adoption of the 10GBase-T standard, however it turned out that RJ45 was sufficient. The Cat.7 wasnotadaptedas a result, so that Cat.7 cables may not strictly speaking be referredto as RJ45connectors because they are not defined for this category but are used in the market. |
||||||
| Conduction: |  |
||||||
| Conductor: | 7*0.2mm stranded bare copper | ||||||
| Pairs: | 4 Pairs | ||||||
| Insulation: | HDPE | ||||||
| Insulation Colors: | White, Blue, Orange, Green, Brown | ||||||
| Individual Shield : | Pair in Al/PET Foil | ||||||
| Overall Shield: | ≥30% Alminium Braiding | ||||||
| Out Jacket: | LSZH; PVC | ||||||
| Characteristics: | |||||||
| VERSION | CLASS | MAX. OPERATING FREQUENCY | SHIELDING TYPE | PLUG CONNECTOR | USED FOR | NOTE | NORMAL |
| Cat 7 | F | 600MHz | S/FTP | GG45, TERA | CCTV | Used in LAN or WAN as infra- structure cable. |
ISO/IEC 11801, 2. Output |
| Cat 7A | FA | 1000MHz | S/FTP | GG45, TERA | CCTV |
Hardly wide- spread in net- works.
|
ISO/IEC 11801, 2. Output, Appendix 2 |
|
Product Code: |
|||||||
|
SF7 1 C V 03M WH ① ②③ ④ ⑤ ⑥
|
|||||||
| Cable Type | Number of conductor wires |
Conductor material |
Outer sheath material |
Cable length | Outer sheath color | ||
| SF7= S/FTP CAT7 |
1=7/0.2 | C=Bare Copper | V= PVC O=LSZH |
03=0.3M, 05=0.5M 1=1M, 2=2M 3=3M, 5=5M 10=10M, 15=15M 20=20M, 30=30M ······· |
|
||
| ① ② | ③ | ④ | ⑤ | ⑥ | |||
