Place of Origin: | CHINA |
---|---|
Brand Name: | Zion communication OR OEM |
Certification: | ISO, CE, RoHS, UL |
Model Number: | Data Center Equipment |
Minimum Order Quantity: | 1,000 PCS |

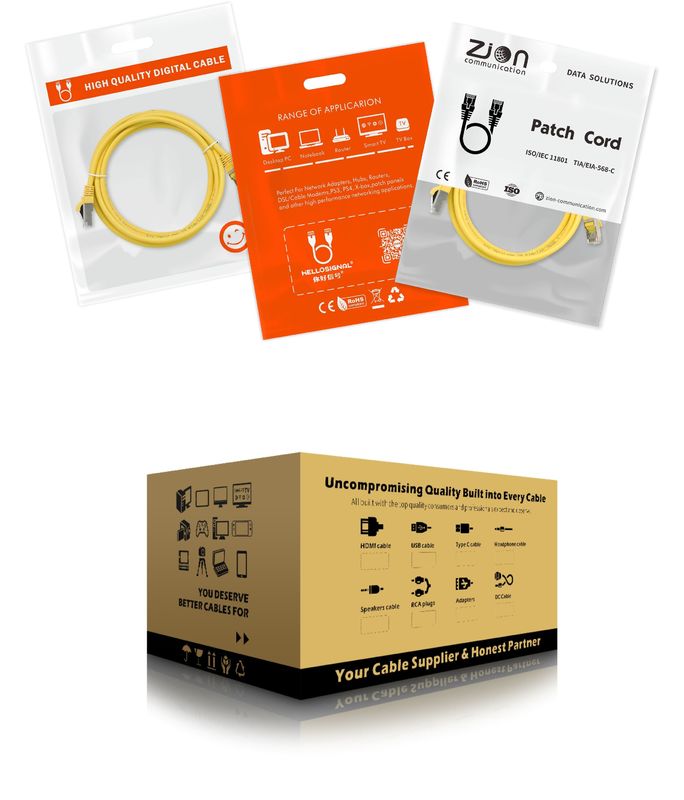

Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
Delivery Time: | Normally 10 workingdays |
Payment Terms: | T/T, L/C |
Supply Ability: | 30,000 PCS / Month |
Model: | Copper Patch Cord | Bnad: | HELLOSIGNAL |
---|---|---|---|
Cord: | CAT.5E U/UTP | Conductor: | Stranded Bare Copper / CCA |
Max. Frequency: | 100MHz | Out Jacket: | LSZH; PVC; PE |
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
U/UTP CAT5E | |||||||
Application: | |||||||
![]() |
Cables of this category are used for class D transmission channels and are most commonly foundin existing installations. They can transmit frequencies up to 100MHz and are divided into Cat.5 andCat.5e.
While Cat.5 supported fast Ethernet with 100Mbps, it was not suitable for Gigabit Ethernetand therefore holds no substantial place within the market. Cat.5e however, was a cable standardwith improved NeXT and FeXT values that is used for 1000BaseT networks. This low-cost standard is popular in the home and prosumer markets and is still widely used.
|
||||||
Conduction: | ![]() |
||||||
Conductor: | Stranded bare copper / CCA | ||||||
Pairs: | 4 Pairs | ||||||
Insulation: | HDPE | ||||||
Insulation Colors: | White, Blue, Orange, Green, Brown | ||||||
Out Jacket : | LSZH; PVC; PE | ||||||
Characteristics: | |||||||
VERSION | CLASS | MAX. OPERATING FREQUENCY |
SHIELDING TYPE |
PLUG CONNECTOR | USED FOR | NOTE | NORMAL |
Cat .5e | D | 100MHz | U/UTP | RJ45 |
1000Base-T 2,5GBase-T (Lengths < 75m) 5GBase-T (Lengths < 75m)
|
Still widely used in LANs. Sufficient for standard network applications. | ISO/IEC 11801 EN 50173 |
Product Code: |
|||||||
U5E 1 C V 03M WH ① ②③ ④ ⑤ ⑥
|
|||||||
Cable Type | Number of conductor wires |
Conductor material |
Outer sheath material |
Cable length | Outer sheath color | ||
U5E= U/UTP CAT5E |
1=7/0.16
2=7/0.12 |
C=Bare Copper
A=Copper Clad Aluminum |
V= PVC
Y=PE
|
03=0.3M, 05=0.5M 1=1M, 2=2M 3=3M, 5=5M 10=10M, 15=15M 20=20M, 30=30M ······· |
![]() |
||
① ② | ③ | ④ | ⑤ | ⑥ | |||
